How to build an USB pluviometer

How to build an USB pluviometer

If you're interested in autonomous weather measurement stations, you may have wondered how to build a digital pluviometer. You probably though about a complex solution based on a container and water level detectors. Actually the solution is much simpler, you can even do it yourself...

Inner workings

Automatic pluviometers are based on tilling buckets. Rain is collected with a funnel and poured on a some kind of seesaw. As soon as one bucket is full, its weight makes the seesaw tilt. The other bucket will start to fill as the first one will emptying. Therefore, we only need to count the seesaw tilts to know how much water went through the pluviometer.

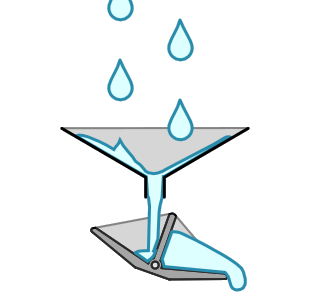

Automatic pluviometer principle
Automatic pluviometer principle

How to build one
We used our 3D printer to create our pluviometer. The mechanical part is not very complex. The only thing which must be carefully designed is the seesaw geometry. It must allow one bucket to be filled as the other one is emptying. It shouldn't be too big or we would loose precision. It shouldn't be too small of water surface tension would jam the mechanism.

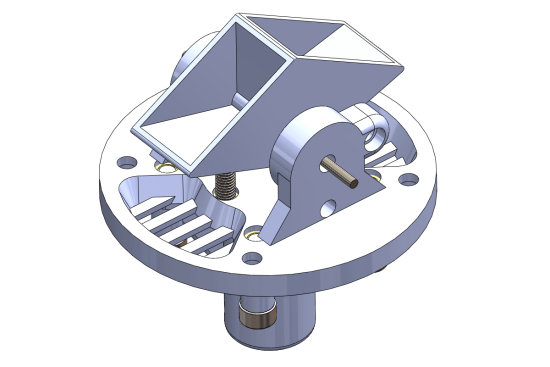

The pluviometer mechanical part
The pluviometer mechanical part

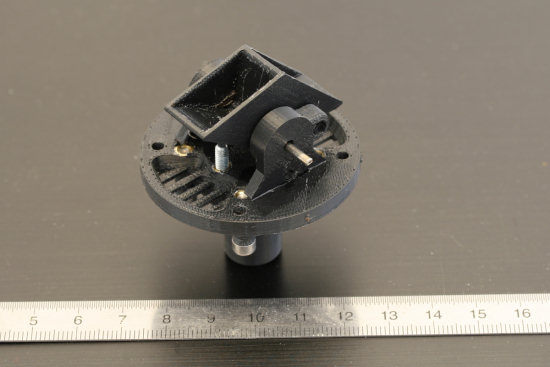

The same, for real
The same, for real

The seesaw might need some tuning, that's why we added two headless screws. These can act as stops to make the seesaw tilt more easily.

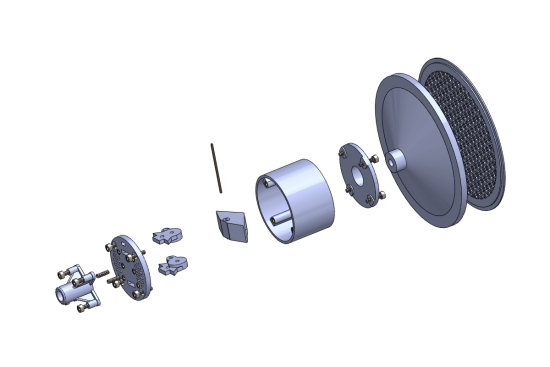

The pluviometer parts
The pluviometer parts

Tilting is detected with our favorite technique for mechanical movement detection: a powerful Led, a photo-transistor and a Yocto-Knob. The Led lights up the photo-transistor, but when the seesaw crosses the light beam, the photo-transistor resistance changes. This can be detected by the Yocto-Knob. The Yocto-Knob can even automatically count the number of changes during a given time.

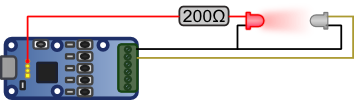

Wiring with a Yocto-knob .
Wiring with a Yocto-knob .

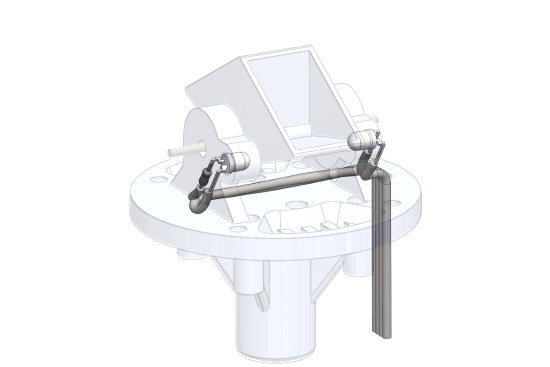

Wiring inside the pluviometer
Wiring inside the pluviometer

The funnel on of top the pluviometer has been printed for the sake of having a fully printed pluviometer. Actually a funnel bought from the nearest hardware store would probably do much better as it would be smoother and non porous. We would like the rain drops going through the funnel as smoothly as possible. A grid on top of the funnel is mandatory, or you will soon find autumn leaves and slugs jamming your mechanism.

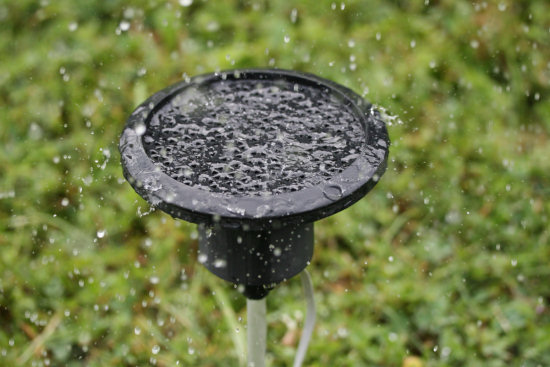

We will soon find out if the weather is as bad as we think it is
We will soon find out if the weather is as bad as we think it is

Here is a short video about the inner workings of the pluviometer.



Calibration is quite simple. We only need to pour a known quantity of water inside the pluviometer, and count how many tilts this causes. Knowing the funnel collecting surface area, we can compute how much water a single tilt represents. We counted 295 tilts for 300ml. The funnel diameter being 10cm, one tilt represent a rainfall level of 0.13mm. Here is a small python program computing rainfall level every hours.

import sys
from yocto_api import *
from yocto_anbutton import *


# Setup the API to use local USB devices
if YAPI.RegisterHub("usb", errmsg)!= YAPI.SUCCESS:
    sys.exit("init error"+errmsg.value)

# We assume the Yocto-Knob channel connected to the rainmeter
# is named "RainMeter" (logic name)

channel = YAnButton.FindAnButton('RainMeter')
if not channel.isOnline()  : sys.exit('No "RainMeter" channel found')


# The Yocto-Knob features a state change counter

while True:
  time = channel.get_pulseTimer()
  if time>=3600*1000: # one hour elapsed
      flipcount = channel.get_pulseCounter()
      print("Rainfall level for the last hour: %.2f mm  " % (flipcount * 0.13))


Since the anemometer and the wind wane cases have already been covered, I think that pluviometer completes the matter. Now you can build your very own meteorological station. You will find the 3D part for this device on Thingiverse. Have fun.

Add a comment 4 comments
Back to blog

1 - neilh Tuesday,august 27,2013 18H36

Hey great demo.
However one major issue that I've found with different tipping buckets in the great outdoors - SPIDERS -they LOVE hot dark locations and tie the bucket down.
This means the whole design is sealed, with funnel and water exit being a needed part of the design.
The led arrangement is power hungry for remote location and a simple magnet with hall-effect switch works well.
Also for some real world locations - freezing needs to be considered - and a model of how to keep it from freezing would be fantastic -say an insulated design with simple thermistor and heating resistor.
Just a thought for real world sensors. Good work.

2 - martinm (Yocto-Team)Thursday,september 05,2013 7H50

Most of our friday projects are proof of concept usually achieved in one day, they don't pretend to be perfects :-) they are mainly application examples for our devices.

Thanks for your comments anyway, we had slugs problems with some of our outdoor projects but we didn't think about spiders.

Regarding heating, I think that one of these heating cables used in vivariums would do the trick.

3 - carlisler Monday,september 28,2015 14H35

What is the scale used to print this? I tried to print one and it came it miniature, and I am wondering if my units are wrong.

4 - martinm (Yocto-Team)Monday,september 28,2015 15H05

We always work in mm.
