1. Introduction

The YoctoHub-GSM-3G-EU is a 60x58mm module enabling you to drive other Yoctopuce modules through a cellular connection of the 3G GSM type (UMTS and HSPA). The radio module supports the two GSM frequency bands 900MHz and 1800MHz used in Europe, the Middle-East, Africa, Asia and the Pacific 1

The YoctoHub-GSM-3G-EU is designed to be easily deployed and to not require any specific maintenance. In the opposite to a mini-computer, it does not have a complex operating system. Settings can be modified manually or automatically through USB. Therefore, the YoctoHub-GSM-3G-EU is much more suited to industrialization than a mini-computer. However, you cannot run additional software written by the user on the YoctoHub-GSM-3G-EU.

The YoctoHub-GSM-3G-EU is not a standard USB hub with network access. Although it uses USB cables, its down ports use a proprietary protocol, much simpler than USB. It is therefore not possible to control, or even to power, standard USB devices with a YoctoHub-GSM-3G-EU.

Yoctopuce thanks you for buying this YoctoHub-GSM-3G-EU and sincerely hopes that you will be satisfied with it. The Yoctopuce engineers have put a large amount of effort to ensure that your YoctoHub-GSM-3G-EU is easy to install anywhere and easy to use in any circumstance. If you are nevertheless disappointed with this device, do not hesitate to contact Yoctopuce support2.

1.1. Optional accessories

The accessories below are not strictly necessary, but they might help you to get the better of your YoctoHub-GSM-3G-EU.

Screws and spacers

In order to mount the Yocto-3D module, you can put small screws in the 3mm assembly holes, with a screw head no larger than 8mm. The best way is to use threaded spacers, which you can then mount wherever you want. You can find more details on this topic in the chapter about assembly and connections.

USB MicroB-MicroB cable

The YoctoHub-GSM-3G-EU connectivity is mainly achieved through USB microB connectors. This means you will have to use USB cables with a microB connector on both ends. These cables are not very common, but you can order some from the Yoctopuce online shop3.

1.27mm pitch connector

USB cable are very handy to quickly interconnect Yoctopuce devices. However, these use a lot of space. That's why there is, on the YoctoHub-GSM-3G-EU PCB, a small footprint for 1.27 or 1.25mm pitch connectors near each USB connector. Soldering 1.27 pitch connector on these footprints allows to use a much more compact wiring. These 1.27mm connectors are quite standard and can be ordered from any electronic shop. Yoctopuce sells the 1.27-1.27-11 product, which is a set of connector with a 11cm long cable.

YoctoHub-Shield

The YoctoHub-GSM-3G-EU features three down ports allowing to connect up to three sub-devices. However this capacity can be raised, thanks to the YoctoHub-Shield. Each shield add 4 new ports, and up to 10 shields can be daisy-chained to your YoctoHub-GSM-3G-EU. See the YoctoHub-Shield documentation for more details.


The YoctoHub-Shield adds more ports to your YoctoHub-GSM-3G-EU.

Enclosures

Your YoctoHub-GSM-3G-EU has been designed to be installed as is in your project. Nevertheless, Yoctopuce sells enclosures specifically designed for Yoctopuce devices. More details are available on the Yoctopuce web site. The suggested enclosure model for your YoctoHub-GSM-3G-EU is the YoctoBox-HubWlan-Transp.


Your YoctoHub-GSM-3G-EU can be installed in an enclosure.

2. Presentation


1:Yocto-button 10:Sleep neutralization
2:Control + power USB port 11:Back connection
3:Yocto-Led 12:Down port 1
4:Overload led 13:Down port 1 led
5:Network transfer led 14:Down port 2
6:Wake up button 15:Down port 2 led
7:Sleep button 16:Down port 3
8:SIM card holder (below) 17:Down port 3led
9:Antenna connector

2.1. The YoctoHub-GSM-3G-EU components

Serial number

Each Yocto-module has a unique serial number assigned to it at the factory. For YoctoHub-GSM-3G-EU modules, this number starts with YHUBGSM3. The module can be software driven using this serial number. The serial number cannot be modified.

Logical name

The logical name is similar to the serial number: it is a supposedly unique character string which allows you to reference your module by software. However, in the opposite of the serial number, the logical name can be modified at will. The advantage is to enable you to build several copies of the same project without needing to modify the driving software. You only need to program the same logical name in each copy. Warning: the behavior of a project becomes unpredictable when it contains several modules with the same logical name and when the driving software tries to access one of these modules through its logical name. When leaving the factory, modules do not have an assigned logical name. It is yours to define.

Yocto-button

The Yocto-button has two functionalities. First, it can activate the Yocto-beacon mode (see below under Yocto-led). Second, if you plug in a Yocto-module while keeping this button pressed, you can then reprogram its firmware with a new version. Note that there is a simpler UI-based method to update the firmware, but this one works even if the firmware on the module is incomplete or corrupted.

Yocto-led

Normally, the Yocto-led is used to indicate that the module is working smoothly. The Yocto-led then emits a low blue light which varies slowly, mimicking breathing. The Yocto-led stops breathing when the module is not communicating any more, as for instance when powered by a USB hub which is disconnected from any active computer.

When you press the Yocto-button, the Yocto-led switches to Yocto-beacon mode. It starts flashing faster with a stronger light, in order to facilitate the localization of a module when you have several identical ones. It is indeed possible to trigger off the Yocto-beacon by software, as it is possible to detect by software that a Yocto-beacon is on.

The Yocto-led has a third functionality, which is less pleasant: when the internal software which controls the module encounters a fatal error, the Yocto-led starts emitting an SOS in morse 4. If this happens, unplug and re-plug the module. If it happens again, check that the module contains the latest version of the firmware and, if it is the case, contact Yoctopuce support5.

Power / Control port

This port allows you to power the YoctoHub-GSM-3G-EU and the modules connected to it with a simple USB charger. This port also allows you to control the YoctoHub-GSM-3G-EU by USB, exactly like you can do it with a classic Yoctopuce module. It is particularly useful when you want to configure the YoctoHub-GSM-3G-EU without knowing its IP address.

Down ports

You can connect up to three Yoctopuce modules on these ports. They will then be available as if they were connected to a computer running a VirtualHub. Note that the protocol used between the YoctoHub-GSM-3G-EU and the USB modules is not USB but a lighter proprietary protocol. Therefore, the YoctoHub-GSM-3G-EU cannot manage devices other than Yoctopuce devices. A standard USB hub does not work either6. If you want to connect more than three Yoctopuce modules, just connect one or more YoctoHub-Shield7 to the back ports.

Warning: the USB connectors are simply soldered in surface and can be pulled out if the USB plug acts as a lever. In this case, if the tracks stayed in position, the connector can be soldered back with a good iron and flux to avoid bridges. Alternatively, you can solder a USB cable directly in the 1.27mm-spaced holes near the connector.

The SIM card holder

To connect the YoctoHub-GSM-3G-EU to a GSM cellular network, you must insert in your YoctoHub-GSM-3G-EU a SIM card, combined with a subscription allowing data transfers. The SIM card holder is designed for the most standard mini-SIM format, also called known as 2FF. Adaptors enabling the use Micro-SIM or Nano-SIM cards, can be found in any mobile phone store. The SIM card holder is of the push-push type: push to insert the SIM until it is in position and makes a small click. To remove the SIM card, don't pull it but push it a second time to eject it from the holder.

You must insert the SIM card with the metal contacts against the printed circuit.


Direction of insertion of the SIM card in the YoctoHub-GSM-3G-EU.

Antenna connector

The YoctoHub-GSM-3G-EU includes an ultra miniature coaxial antenna connector (UFL). Take great care of the UFL connector. It is fragile and is not designed to support many connection/deconnection cycles. The YoctoHub-GSM-3G-EU is sold with a small UFL cable to RP-SMA socket8 and a corresponding RP-SMA plug antenna9. You can use another antenna of your choice, as long as it is designed for the frequency range used in your country for GSM and it has the correct connector. Beware also that using a high-gain antenna may drive you to emit a signal stronger than the authorized norm in your country.


Antenna connection

Overload led

The YoctoHub-GSM-3G-EU continuously monitors its power consumption. If it detects a global consumption of more that 2A, following an overload on one of the down ports for example, it automatically disables all the down ports and lights the overload led. To isolate the source of the issue, you can reactivate the ports one by one, monitoring the power consumption increase. Alternatively, if you know the source of the overload issue and know to have solved it, you can restart the YoctoHub-GSM-3G-EU to enable all its ports at once.

Note that the overload led is a protection measure which can prevent overheating, but it is not a protection guarantee against shorts.

Sleep

On average, the YoctoHub-GSM-3G-EU consumes about 0.5 Watt ($SPECCONSO$), to which you must add the connected modules consumption. But it is able to get into sleep to reduce its power consumption to a strict minimum, and to wake up at a precise time or when an outside contact is closed. This feature is very useful to build measuring installations working on a battery. When the YoctoHub-GSM-3G-EU is in sleep mode, most of the electronics of the module as well as the connected Yoctopuce modules are switched off. This reduces the total consumption to 75 µW (15 µA).

Switching to sleep and waking up can be programmed based on a schedule, controlled by software, or controlled manually with two push buttons located on the YoctoHub-GSM-3G-EU circuit. You can find there two pairs of contacts which enable you to shunt these two buttons.


Sleep and wake up button deviation.

The YoctoHub-GSM-3G-EU includes a switch with which you can disable the sleep mode at the hardware level. This functionality is particularly useful when developing and debugging your project, as well as when updating the firmware.

3. First steps

The aim of this chapter is to help you connect and configure your YoctoHub-GSM-3G-EU for the first time.

3.1. Manual configuration

You can configure your YoctoHub-GSM-3G-EU through its USB control port, by using the VirtualHub10.

Run the VirtualHub on your preferred computer and connect it to the power / control port of the YoctoHub-GSM-3G-EU. You need a USB A-MicroB cable.


Configuration: connecting your YoctoHub-GSM-3G-EU by USB to a computer

Launch your preferred browser on the URL of your VirtualHub. It usually is http://127.0.0.1:4444. You obtain the list of Yoctopuce modules connected by USB, among which your YoctoHub-GSM-3G-EU.

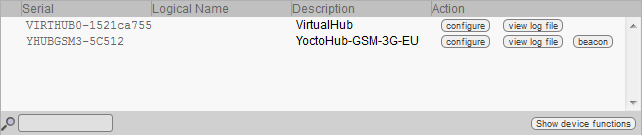

List of Yoctopuce modules connected by USB to your computer, among which your YoctoHub-GSM-3G-EU

Click on the configure button corresponding to your YoctoHub-GSM-3G-EU. You obtain the module configuration window. This window contains a Network configuration section.

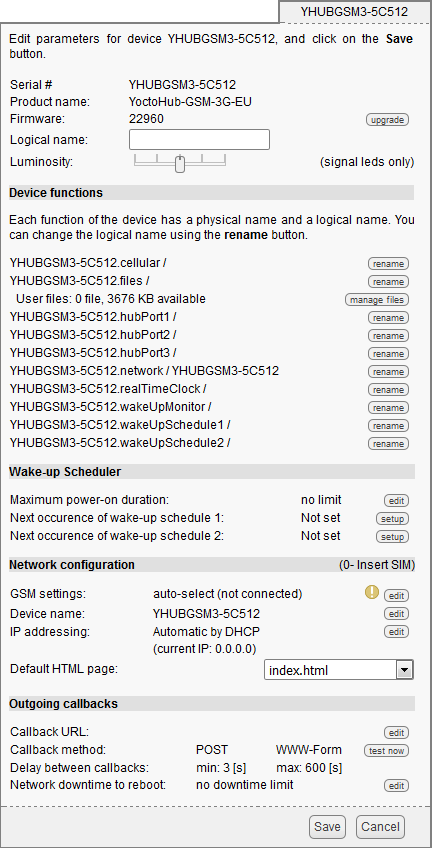

YoctoHub-GSM-3G-EU module configuration window

Connection to the GSM cellular network

The first thing you must do is to configure your YoctoHub-GSM-3G-EU so that it connects itself to your GSM network. To do so, click on the edit button corresponding to GSM configuration in the Network configuration section and the GSM cellular network configuration window opens:

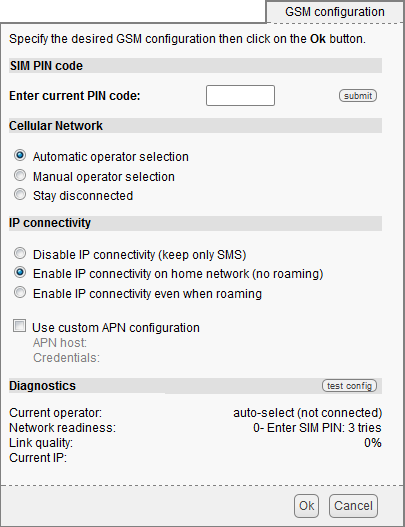

GSM cellular network configuration window

You can then enter the PIN code corresponding to the SIM card inserted in the YoctoHub-GSM-3G-EU if need be, and select with which provider you want to work.

In most cases, the SIM card "knows" the provider it is designed for and you can simply keep the automatic selection. However, near country borders, the card may wish to use a more powerful but foreign signal, more expensive to use. To prevent this, you can select the provider of your local network manually.

You can also specify in your YoctoHub-GSM-3G-EU the context in which you want to enable the IP connection data transfer. You can either completely disable it if you are only interested in SMS use11, or activate it on the SIM card network only, or even allow data use on other networks (roaming). Take care if you activate this latest option, because it can quickly generate significant costs!

Depending on your SIM card and on your cellular service provider, you may have to configure an APN (Access Point Name), corresponding to the Internet gateway on your cellular network. It is an arbitrary name, assigned by your provider, to which you must sometimes add a user name and a password. It is impossible to list in this user's guide the APN name to be used with each provider. But if you do a search on the Internet with the name of your cellular service provider and the "APN" keyword, you will very easily find the APN name to use as well as the potential user name and password. The apnchanger.org web site contains this information for the main providers in many countries.

Warning: you have only three chances to enter the correct PIN code, if you fail to do so, you will have to resest the SIM card with its PUK code.

When you have entered the network parameters and potentially tested them, click on the Ok button to close this configuration window and come back to the main configuration window.

Difference between a GSM network and a standard network

Important: The GSM cellular network to which your YoctoHub-GSM-3G-EU is connected is not strictly equivalent to a standard Internet connection. Indeed, the IP address assigned to a cellular modem is almost always a non routed IP address. The YoctoHub-GSM-3G-EU sees the whole Internet network, but Internet does not have a public address to contact it. This means that you cannot connect yourself remotely on your YoctoHub-GSM-3G-EU from any computer, by simply typing its IP address in a web browser.

One of the solutions to solve this issue is to obtain from your cellular service provided a SIM card enabling a direct connection through a virtual private network.

Using a virtual private network

Some cellular service providers can conditionally provide a GSM connection with an internet link to a private address range, which is dedicated to you. This type of connection, dedicated to the machine-to-machine services, is generally restricted to businesses. It allows you to connect yourself remotely (through a virtual private network) to your YoctoHub-GSM-3G-EU, which is otherwise impossible because each cellular phone is normally implicitly isolated behind a NAT filter.

If you do have such a connection, you can configure which IP address must be assigned to the YoctoHub-GSM-3G-EU, and which IP address is authorized to contact it (firewall function). To do so, click on the edit opposite to the IP addressing line. It is essential to configure these parameters correctly to be able to contact your module through its IP address. Otherwise, the firewall blocks any incoming connection.

3.2. Device state window

It is possible to check the device general state, such as logical name, Network state, Hub ports states etc. Juste go back to the device list.

Click on the serial number corresponding to your YoctoHub-GSM-3G-EU. This opens your module property window:

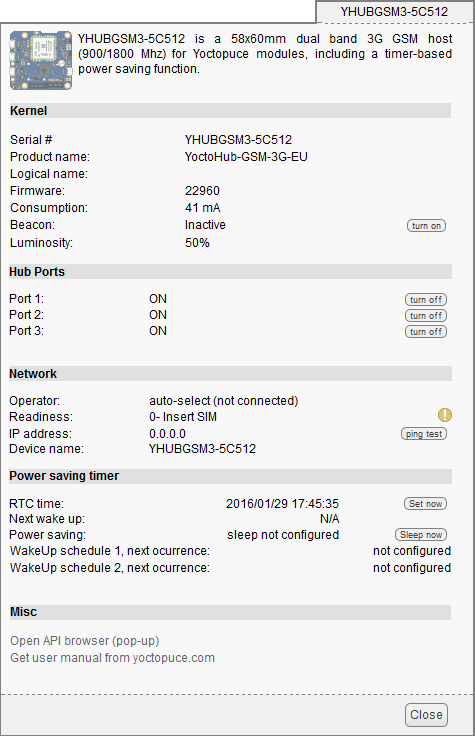

The YoctoHub-GSM-3G-EU properties

This window contains a section indicating the state of the YoctoHub-GSM-3G-EU network part. You can find there its MAC address, current IP address, and network name. This section also provides the state of the network connection. Possible states are:

If your YoctoHub-GSM-3G-EU does indeed go into the WWW Ready state, it means that your internet cellular connection works correctly. You can then perform the next steps: Connect the wanted Yoctopuce modules (sensors and/or actuators) and configure the interactions with the outside.

3.3. Automated configuration

You can industrialize the YoctoHub-GSM-3G-EU network configuration. You can find in the following chapters of this documentation the description of the programming functions enabling you to read the Ethernet address (MAC address) of a module, and to configure all of its network parameters.

The network configuration functions are also available as command lines, using the YNetwork utility software available in the command line programming library 12.

After having set some parameters by software, make sure to call the saveToFlash() function to ensure that the new settings are saved permanently in the module flash memory.

3.4. Connections

Power supply

The YoctoHub-GSM-3G-EU must be powered by the USB control socket.

USB

Simply connect a USB charger in the power / control port port, but make sure that the charger provides enough electric power. The YoctoHub-GSM-3G-EU consumes about $SPECCONSO$, to which you must add the power consumption of each submodule. The YoctoHub-GSM-3G-EU is designed to manage a maximum of 2A. Therefore, we recommend a USB charger able to deliver at least 2A. Moreover, you must make sure that the total power consumption of the set "hub + submodules" does not go above this limit.


The YoctoHub-GSM-3G-EU can be powered by a regular USB charger

Sub-modules

The YoctoHub-GSM-3G-EU is able to drive all the Yoctopuce modules of the Yocto range. These modules can be directly connected to the down ports. They are automatically detected. For this, you need Micro-B Micro-B USB cables. Whether you use OTG cables or not does not matter.


Connecting sub-modules with USB cables

Alternatively, you can connect your modules by directly soldering electric cables between the YoctoHub-GSM-3G-EU and its sub-modules. Indeed, all the Yoctopuce modules have contacts designed for direct cabling. We recommend you to use solid coper ribbon cables, with a 1.27mm pitch. Solid copper ribbon cable is less supple than threaded cable but easier to solder. Pay particular attention to polarity: the YoctoHub-GSM-3G-EU, like all modules in the Yoctopuce range, is not protected against polarity inversion. Such an inversion would likely destroy your devices. Make sure the positions of the square contacts on both sides of the cable correspond.


Sub-module connection with ribbon cable

The YoctoHub-GSM-3G-EU is designed so that you can fix a single width module directly on top of it. To do so, you need screws, spacers13, and a 1.27mm pitch connector14. You can thus transform your USB Yoctopuce module into a network module while keeping a very compact format.


Fixing a module directly on the hub

Beware, the YoctoHub-GSM-3G-EU is designed to drive only Yoctopuce modules. Indeed, the protocol used between the YoctoHub-GSM-3G-EU and the sub-modules is not USB but a much lighter proprietary protocol. If, by chance, you connect a device other than a Yoctopuce module on one of the YoctoHub-GSM-3G-EU down ports, this port is automatically disabled to prevent damages to the device.

4. Assembly

This chapter provides important information regarding the use of the YoctoHub-GSM-3G-EU module in real-world situations. Make sure to read it carefully before going too far into your project if you want to avoid pitfalls.

4.1. Fixing

While developing your project, you can simply let the hub hang at the end of its cable. Check only that it does not come in contact with any conducting material (such as your tools). When your project is almost at an end, you need to find a way for your modules to stop moving around.


Examples of assembly on supports

The YoctoHub-GSM-3G-EU module contains 3mm assembly holes. You can use these holes for screws. The screw head diameter must not be larger than 8mm or the heads will damage the module circuits.

Make sure that the lower surface of the module is not in contact with the support. We recommend using spacers. You can fix the module in any position that suits you: however be aware that the YoctoHub-GSM-3G-EU electronic components, in particular the network part, generate heat. You must not let this heat accumulate.

4.2. Fixing a sub-module

The YoctoHub-GSM-3G-EU is designed so that you can screw a single width module directly on top of it. By single width, we mean modules with a 20mm width. All the single width modules have their 5 assembly holes and the USB socket in the same position. The sub-module can be assembled with screws and spacers. At the back of the YoctoHub-GSM-3G-EU and sub-module USB connectors, there are a set of 4 contacts enabling you to easily perform an electrical connection between the hub and the sub-module. If you do not feel sufficiently at ease with a soldering iron, you can also use a simple Micro-B Micro-B USB cable, OTG or not.


Fixing a module directly on the hub

Make sure to mount your module on the designed side, as illustrated above. The module 5 holes must correspond to the YoctoHub-GSM-3G-EU 5 holes, and the square contact on the module must be connected to the square contact on the YoctoHub-GSM-3G-EU down port. If you assemble a module on the other side or in another way, the connector polarity will be inverted and you risk to permanently damage your equipment.

All the accessories necessary to fix a module on your YoctoHub-GSM-3G-EU are relatively usual. You can find them on the Yoctopuce web site, as on most web sites selling electronic equipment. However, beware: the head of the screws used to assemble the sub-module must have a maximum head diameter of 4.5mm, otherwise they could damage the electronic components.

5. Interaction with external services

The YoctoHub-GSM-3G-EU can publish the state of connected devices on any web server. The values are posted on a regular basis and each time one of them changes significantly. This feature, named HTTP Callback, enables you to interface your Yoctopuce devices with many web services.

5.1. Configuration

To use this feature, just click on the configure button located on the line matching the YoctoHub-GSM-3G-EU on the main user interface. Then look for the Outgoing calbacks section and click on the edit button.


Just click on the "Configure" button on the first line.


Then edit the "Outgoing callbacks" section.

The callback configuration window shows up. This window enables you to define how your YoctoHub-GSM-3G-EU interacts with an external web server. Several interaction types are at your disposal. For each type, a specific wizard will help you enter appropriate parameters

5.2. Emoncms

Emoncms.org is an open-source cloud service where you can register to upload your sensor data. It will let you view your measures in real-time over the Internet, and draw historical graphs, without writing a single line of code. You just have to enter in the configuration window your own API key, as provided by Emoncms, and allocate an arbitrary node number to YoctoHub-GSM-3G-EU.

It is also possible to install Emoncms on your own server, to keep control on your data. You will find more explanations about this on Yoctopuce blog15.

Yoctopuce is not affiliated with Emoncms.org.

5.3. Valarm.net

Valarm is a professional cloud service where you can register to upload your sensor data, with some advanced features like remote configuration of Yoctopuce devices and measure geolocation.

Valarm is a reseller for Yoctopuce products, but Yoctopuce is not otherwise affiliated with Valarm.

5.4. ThinkSpeak

ThingSpeak16 is another free cloud service. It enables you not only to trace graphs with data coming from your Yoctopuce sensors, but also to trigger some actions based on conditions set on incoming measures. The UI is not as friendly as Emoncms, but you can find on the Yoctopuce blog 17 how to configure your YoctoHub-GSM-3G-EU to post data directly on ThinkSpeak.

Yoctopuce is not affiliated to ThingSpeak.

5.5. Microsoft Azure

Azure is Microsoft cloud computing platform, including a collection of integrated services - database, computing, etc. For more details, see azure.microsoft.com. You can upload sensor data directly to an Azure Mobile Service, using the standard NoSQL Rest API.

Yoctopuce is not affiliated with Microsoft.

5.6. Xively (previously Cosm)

Xively is a commercial cloud service where you might be able to register to upload your sensor data. Note that since end of 2014, Xively is focusing on enterprise and OEM customers, and might therefore not be available to everyone. For more details, see xively.com.

Yoctopuce is not affiliated with Xively.

5.7. InfluxDB

InfluxDB is an open-source database for time series, metrics and events. It is very efficient to retrieve measure series for a given time range, even when averaging on-the-fly. You can easily install it on your own computer to record and graph your sensor data. There is a step-by-step guide on how to configure InfluxDB and Grafana to graph Yoctopuce sensors on the Yoctopuce blog 18.

Yoctopuce is not affiliated to InfluxData nor to Grafana.

5.8. Yocto-API callback

With some programming environments, the full Yoctopuce API can be used to drive devices in HTTP callback mode. This way, a web server script can take control of Yoctopuce devices installed behind a NAT filter without having to open any port. Typically, this allows you to control Yoctopuce devices running on a LAN behind a private DSL router from a public web site. The YoctoHub-GSM-3G-EU then acts as a gateway. All you have to do is to define the HTTP server script URL and, if applicable, the credentials needed to access it. On the server script, you would initialize the library using the following call:

RegisterHub("http://callback");

There are two possibilities to use the Yoctopuce API in callback mode. The first one, available in PHP, Java and Node.JS is using pure HTTP callbacks. The YoctoHub-GSM-3G-EU posts its complete state to the server, and receives commands in return from the server script. There are however some limitations with this mode: complex interactions, such as retrieving data from the datalogger, are not possible.

The second mode API callback mode is using WebSocket callbacks. It is currently only available in Java and Node.JS. WebSockets are a standard extension of HTTP, providing a full bidirectional exchange channel over an HTTP connection. When a server script is connected by a YoctoHub-GSM-3G-EU over a Websocket callback connection, the fully Yoctopuce API can be used, without any limitation.

5.9. User defined callback

The "User defined callback" allow you to fully customize the way the YoctoHub-GSM-3G-EU interacts with an external web site. You need to provide the URL of the web server where you want the hub to post data. Note that only HTTP protocol is supported (no HTTPS).


The callback configuration window.

If you want to secure access to your callback script, you can setup a standard HTTP authentication. The YoctoHub-GSM-3G-EU knows how to handle standard HTTP authentication schemes: simply fill in the user and and password fields needed to access the URL. Both Basic and Digest authentication are supported. However, Digest authentication is highly recommended, since it uses a challenge mechanism that avoids sending the password itself over the Internet, and prevents replays.

The YoctoHub-GSM-3G-EU posts the advertised values19 on a regular basis, and each time one of these values changes significantly. You can change the default delay between posts.

Tests

To help you debug the process, you can visualize with the YoctoHub-GSM-3G-EU the answer to the callback sent by the web server. Click on the test button when all required fields are filled. When the result meets your expectations, close the debug window and then click on the "Ok" button.

Format

Values are posted in one of the following formats:

1. If the function has been assigned a logical name:

FUNCTION_NAME = VALUE

2. If the module has been assigned a logical name, but not the function:

MODULE_NAME#HARDWARE_NAME = VALUE

3. If no logical name has been set:

SERIAL_NUMBER#HARDWARE_NAME = VALUE

Here is a short PHP script allowing you to visualize the data posted by the callback and the result in the debug window:


<?php
  Print(Date('H:i:s')."\r\n");
  foreach ($_POST as $key=>$value) {
      Print("$key=$value\r\n");
  }
?>


Callback test results with a Yocto-PowerRelay and a Yocto-Temperature.

6. Programming

6.1. Accessing connected modules

The YoctoHub-GSM-3G-EU behaves itself exactly like a computer running a VirtualHub. The only difference between a program using the Yoctopuce API with modules in native USB and the same program with Yoctopuce modules connected to a YoctoHub-GSM-3G-EU is located at the level of the registerHub function call. To use USB modules connected natively, the registerHub parameter is usb. To use modules connected to a YoctoHub-GSM-3G-EU, you must simply replace this parameter by the IP address of the YoctoHub-GSM-3G-EU. For instance, in Delphi:


YRegisterHub("usb",errmsg);

becomes


YRegisterHub("192.168.0.10",errmsg); // The hub IP address is 192.168.0.10

6.2. Controlling the YoctoHub-GSM-3G-EU

From the programming API standpoint, the YoctoHub-GSM-3G-EU is a module like the others. You can perfectly manage it from the Yoctopuce API. To do so, you need the following classes:

Module

This class, shared by all Yoctopuce modules, enables you to control the module itself. You can drive the Yocto-led, know the USB power consumption of the YoctoHub-GSM-3G-EU, and so on.

Network

This class enables you to manage the network part of the YoctoHub-GSM-3G-EU. You can control the link state, read the MAC address, change the YoctoHub-GSM-3G-EU IP address, know the power consumption on PoE, and so on.

HubPort

This class enables you to manage the hub part. You can enable or disable the YoctoHub-GSM-3G-EU ports, you can also know which module is connected to which port.

Files

This class enables you to access files stored in the flash memory of the YoctoHub-GSM-3G-EU. The YoctoHub-GSM-3G-EU contains a small file system which allows you to store, for example, a web application controlling the modules connected to the YoctoHub-GSM-3G-EU.

WakeMonitor

This class enables you to monitor the sleep mode of the YoctoHub-GSM-3G-EU.

WakeSchedule

This class enables you to schedule one or several wake ups for the YoctoHub-GSM-3G-EU.

You can find some examples on how to drive the YoctoHub-GSM-3G-EU by software in the Yoctopuce programming libraries, available free of charge on the Yoctopuce web site.

7. Sleep mode

The YoctoHub-GSM-3G-EU includes a real time clock (RTC) powered by a super capacitor. This capacitor charges itself automatically when the module is powered. But it is able to keep time without any power for several days. This RTC is used to drive a sleep and wake up system to save power. You can configure the sleep system manually through an interface or drive it through software.

7.1. Manual configuration of the wake ups

You can manually configure the wake up conditions by connecting yourself on the interface of the YoctoHub-GSM-3G-EU. In the Wake-up scheduler section of the main configuration window, click on the setup button corresponding to one of the "wakeup-schedule". This opens a window enabling you to schedule more or less regular wake ups. Select the boxes corresponding to the wanted occurrences. Empty sections are ignored.

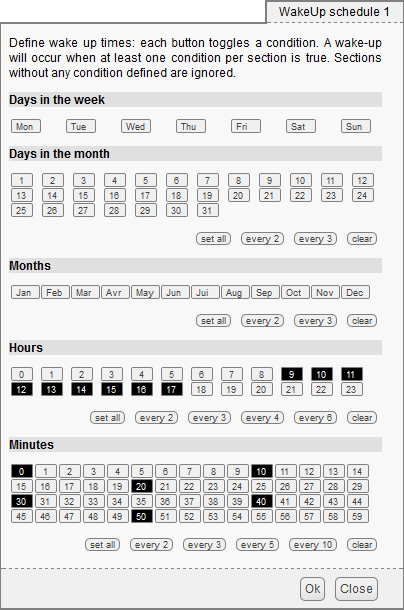

Wake up configuration window: here every 10 minutes between 9h and 17h.

Likewise, you can configure directly in the YoctoHub-GSM-3G-EU interface the maximal wake up duration, after which the module automatically goes back to sleep. If your YoctoHub-GSM-3G-EU is running on batteries, this ensures they do not empty even if no explicit sleep command is received.

7.2. Configuring the wake up system by software

At the programming interface level, the wake up system is implemented with two types of functions: the wakeUpMonitor function and the wakeUpSchedule function.

wakeUpMonitor

The wakeUpMonitor function manages wake ups and sleep periods, proper. It provides all the instant managing functionalities : instant wake up, instant sleep, computing the date of the next wake up, and so on...

The wakeUpMonitor function enables you also to define the maximum duration during which the YoctoHub-GSM-3G-EU stays awake before automatically going back to sleep.

wakeUpSchedule

The wakeUpSchedule function enables you to program a wake up condition followed by a possible sleep. It includes five variables enabling you to define correspondences on minutes, hours, days of the week, days of the month, and months. These variables are integers where each bit defines a correspondence. Schematically, each set of minutes, hours, and days is represented as a set of boxes with each a coefficient which is a power of two, exactly like in the corresponding interface of the YoctoHub-GSM-3G-EU.

For example, bit 0 for the hours corresponds to hour zero, bit 1 corresponds to hour 1, bit 2 to hour 2, and so on.


To each box is assigned a power of two

Thus, to program the YoctoHub-GSM-3G-EU for it to wake up every day at noon, you must set bit 12 to 1, which corresponds to the value 2^12 = 4096.


Example for a wake up at 12h

For the module to wake up at 0 hour, 6 hours, and 12 hours, you must set the 0, 6, and 12 bits to 1, which corresponds to the value 2^0 +2^6 +2^12 = 1 + 64 + 4096 = 4161


Example for wake ups at 0, 6, and 12h

Variables can be combined. For a wake up to happen every day at 6h05, 6h10, 12h05, and 12h10, you must set the hours to 2^6 + 2^12 = 4060, minutes to 2^5 and 2^10 = 1056. Variables remaining at the zero value are ignored.


Example for wake ups at 6H05, 6h10, 12h05, and 12h10

Note that if you want to program a wake up at 6h05 and 12h10, but not at 6h10 and 12h05, you need to use two distinct wakeUpSchedule functions.

This paradigm allows you to schedule complex wake ups. Thus, to program a wake up every first Tuesday of the month, you must set to 1 bit 1 of the days of the week and the first seven bits of the days of the month.


Example for a wake up every first Tuesday of the month

Some programming languages, among which JavaScript, do not support 64 bit integers. This is an issue for encoding minutes. Therefore, minutes are available both through a 64 bit integer minutes and two 32 bit integers minutesA and minutesB. These 32 bit integers are supposed to be available in any current programming language.


Minutes are also available in the shape of two 32 bit integers

The wakeUpSchedule function includes an additional variable to define the duration, in seconds, during which the module stays awake after a wake up. If this variable is set to zero, the modules stays awake.

The YoctoHub-GSM-3G-EU includes two wakeUpSchedule functions, enabling you to program up to two independent wake up types.

8. High-level API Reference

This chapter summarizes the high-level API functions to drive your YoctoHub-GSM-3G-EU. Syntax and exact type names may vary from one language to another, but, unless otherwise stated, all the functions are available in every language. For detailed information regarding the types of arguments and return values for a given language, refer to the definition file for this language (yocto_api.* as well as the other yocto_* files that define the function interfaces).

For languages which support exceptions, all of these functions throw exceptions in case of error by default, rather than returning the documented error value for each function. This is by design, to facilitate debugging. It is however possible to disable the use of exceptions using the yDisableExceptions() function, in case you prefer to work with functions that return error values.

This chapter does not explain Yoctopuce programming concepts, in order to stay as concise as possible. You will find more details in the documentation of the devices you plan to connect to your YoctoHub-GSM-3G-EU.

8.1. Yocto-hub port interface

YHubPort objects provide control over the power supply for every YoctoHub port and provide information about the device connected to it. The logical name of a YHubPort is always automatically set to the unique serial number of the Yoctopuce device connected to it.

In order to use the functions described here, you should include:

js
<script type='text/javascript' src='yocto_hubport.js'></script>
nodejs
var yoctolib = require('yoctolib');
var YHubPort = yoctolib.YHubPort;
cpp
#include "yocto_hubport.h"
m
#import "yocto_hubport.h"
pas
uses yocto_hubport;
vb
yocto_hubport.vb
cs
yocto_hubport.cs
java
import com.yoctopuce.YoctoAPI.YHubPort;
py
from yocto_hubport import *
php
require_once('yocto_hubport.php');
ecmascript
import { YHubPort } from 'yoctolib-es'
Global functions
yFindHubPort(func)

Retrieves a Yocto-hub port for a given identifier.

yFindHubPortInContext(yctx, func)

Retrieves a Yocto-hub port for a given identifier in a YAPI context.

yFirstHubPort()

Starts the enumeration of Yocto-hub ports currently accessible.

yFirstHubPortInContext(yctx)

Starts the enumeration of Yocto-hub ports currently accessible.

YHubPort methods
hubport→clearCache()

Invalidates the cache.

hubport→describe()

Returns a short text that describes unambiguously the instance of the Yocto-hub port in the form TYPE(NAME)=SERIAL.FUNCTIONID.

hubport→get_advertisedValue()

Returns the current value of the Yocto-hub port (no more than 6 characters).

hubport→get_baudRate()

Returns the current baud rate used by this Yocto-hub port, in kbps.

hubport→get_enabled()

Returns true if the Yocto-hub port is powered, false otherwise.

hubport→get_errorMessage()

Returns the error message of the latest error with the Yocto-hub port.

hubport→get_errorType()

Returns the numerical error code of the latest error with the Yocto-hub port.

hubport→get_friendlyName()

Returns a global identifier of the Yocto-hub port in the format MODULE_NAME.FUNCTION_NAME.

hubport→get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

hubport→get_functionId()

Returns the hardware identifier of the Yocto-hub port, without reference to the module.

hubport→get_hardwareId()

Returns the unique hardware identifier of the Yocto-hub port in the form SERIAL.FUNCTIONID.

hubport→get_logicalName()

Returns the logical name of the Yocto-hub port.

hubport→get_module()

Gets the YModule object for the device on which the function is located.

hubport→get_module_async(callback, context)

Gets the YModule object for the device on which the function is located (asynchronous version).

hubport→get_portState()

Returns the current state of the Yocto-hub port.

hubport→get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

hubport→isOnline()

Checks if the Yocto-hub port is currently reachable, without raising any error.

hubport→isOnline_async(callback, context)

Checks if the Yocto-hub port is currently reachable, without raising any error (asynchronous version).

hubport→load(msValidity)

Preloads the Yocto-hub port cache with a specified validity duration.

hubport→load_async(msValidity, callback, context)

Preloads the Yocto-hub port cache with a specified validity duration (asynchronous version).

hubport→muteValueCallbacks()

Disable the propagation of every new advertised value to the parent hub.

hubport→nextHubPort()

Continues the enumeration of Yocto-hub ports started using yFirstHubPort().

hubport→registerValueCallback(callback)

Registers the callback function that is invoked on every change of advertised value.

hubport→set_enabled(newval)

Changes the activation of the Yocto-hub port.

hubport→set_logicalName(newval)

Changes the logical name of the Yocto-hub port.

hubport→set_userData(data)

Stores a user context provided as argument in the userData attribute of the function.

hubport→unmuteValueCallbacks()

Re-enable the propagation of every new advertised value to the parent hub.

hubport→wait_async(callback, context)

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

YHubPort.FindHubPort()
yFindHubPort()
yFindHubPort()YHubPort.FindHubPort()yFindHubPort()[YHubPort FindHubPort: ]yFindHubPort()yFindHubPort()YHubPort.FindHubPort()YHubPort.FindHubPort()YHubPort.FindHubPort()yFindHubPort()YHubPort.FindHubPort()

Retrieves a Yocto-hub port for a given identifier.

js
function yFindHubPort(func)
nodejs
function FindHubPort(func)
cpp
YHubPort* yFindHubPort(const string& func)
m
+(YHubPort*) FindHubPort:(NSString*) func
pas
function yFindHubPort(func: string): TYHubPort
vb
function yFindHubPort(ByVal func As String) As YHubPort
cs
YHubPort FindHubPort(string func)
java
YHubPort FindHubPort(String func)
py
def FindHubPort(func)
php
function yFindHubPort($func)
ecmascript
function FindHubPort(func)

The identifier can be specified using several formats:

This function does not require that the Yocto-hub port is online at the time it is invoked. The returned object is nevertheless valid. Use the method YHubPort.isOnline() to test if the Yocto-hub port is indeed online at a given time. In case of ambiguity when looking for a Yocto-hub port by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

funca string that uniquely characterizes the Yocto-hub port

Returns :

a YHubPort object allowing you to drive the Yocto-hub port.

YHubPort.FindHubPortInContext()
yFindHubPortInContext()
YHubPort.FindHubPortInContext()YHubPort.FindHubPortInContext()

Retrieves a Yocto-hub port for a given identifier in a YAPI context.

java
YHubPort FindHubPortInContext(YAPIContext yctx, String func)
ecmascript
function FindHubPortInContext(yctx, func)

The identifier can be specified using several formats:

This function does not require that the Yocto-hub port is online at the time it is invoked. The returned object is nevertheless valid. Use the method YHubPort.isOnline() to test if the Yocto-hub port is indeed online at a given time. In case of ambiguity when looking for a Yocto-hub port by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

yctxa YAPI context
funca string that uniquely characterizes the Yocto-hub port

Returns :

a YHubPort object allowing you to drive the Yocto-hub port.

YHubPort.FirstHubPort()
yFirstHubPort()
yFirstHubPort()YHubPort.FirstHubPort()yFirstHubPort()[YHubPort FirstHubPort]yFirstHubPort()yFirstHubPort()YHubPort.FirstHubPort()YHubPort.FirstHubPort()YHubPort.FirstHubPort()yFirstHubPort()YHubPort.FirstHubPort()

Starts the enumeration of Yocto-hub ports currently accessible.

js
function yFirstHubPort()
nodejs
function FirstHubPort()
cpp
YHubPort* yFirstHubPort()
m
+(YHubPort*) FirstHubPort
pas
function yFirstHubPort(): TYHubPort
vb
function yFirstHubPort() As YHubPort
cs
YHubPort FirstHubPort()
java
YHubPort FirstHubPort()
py
def FirstHubPort()
php
function yFirstHubPort()
ecmascript
function FirstHubPort()

Use the method YHubPort.nextHubPort() to iterate on next Yocto-hub ports.

Returns :

a pointer to a YHubPort object, corresponding to the first Yocto-hub port currently online, or a null pointer if there are none.

YHubPort.FirstHubPortInContext()
yFirstHubPortInContext()
YHubPort.FirstHubPortInContext()YHubPort.FirstHubPortInContext()

Starts the enumeration of Yocto-hub ports currently accessible.

java
YHubPort FirstHubPortInContext(YAPIContext yctx)
ecmascript
function FirstHubPortInContext(yctx)

Use the method YHubPort.nextHubPort() to iterate on next Yocto-hub ports.

Parameters :

yctxa YAPI context.

Returns :

a pointer to a YHubPort object, corresponding to the first Yocto-hub port currently online, or a null pointer if there are none.

hubport→clearCache()hubport.clearCache()hubport.clearCache()hubport→clearCache()[hubport clearCache]hubport.clearCache()hubport.clearCache()hubport.clearCache()hubport.clearCache()hubport.clearCache()hubport→clearCache()hubport.clearCache()

Invalidates the cache.

js
function clearCache()
nodejs
function clearCache()
cpp
void clearCache()
m
-(void) clearCache
pas
procedure clearCache()
vb
procedure clearCache()
cs
void clearCache()
java
void clearCache()
py
def clearCache()
php
function clearCache()
ecmascript
function clearCache()

Invalidates the cache of the Yocto-hub port attributes. Forces the next call to get_xxx() or loadxxx() to use values that come from the device.

hubport→describe()hubport.describe()hubport.describe()hubport→describe()[hubport describe]hubport.describe()hubport.describe()hubport.describe()hubport.describe()hubport.describe()hubport→describe()hubport.describe()

Returns a short text that describes unambiguously the instance of the Yocto-hub port in the form TYPE(NAME)=SERIAL.FUNCTIONID.

js
function describe()
nodejs
function describe()
cpp
string describe()
m
-(NSString*) describe
pas
function describe(): string
vb
function describe() As String
cs
string describe()
java
String describe()
py
def describe()
php
function describe()
ecmascript
function describe()

More precisely, TYPE is the type of the function, NAME it the name used for the first access to the function, SERIAL is the serial number of the module if the module is connected or "unresolved", and FUNCTIONID is the hardware identifier of the function if the module is connected. For example, this method returns Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1 if the module is already connected or Relay(BadCustomeName.relay1)=unresolved if the module has not yet been connected. This method does not trigger any USB or TCP transaction and can therefore be used in a debugger.

Returns :

a string that describes the Yocto-hub port (ex: Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1)

hubport→get_advertisedValue()
hubport→advertisedValue()
hubport.get_advertisedValue()hubport.get_advertisedValue()hubport→get_advertisedValue()[hubport advertisedValue]hubport.get_advertisedValue()hubport.get_advertisedValue()hubport.get_advertisedValue()hubport.get_advertisedValue()hubport.get_advertisedValue()hubport→get_advertisedValue()hubport.get_advertisedValue()YHubPort get_advertisedValue

Returns the current value of the Yocto-hub port (no more than 6 characters).

js
function get_advertisedValue()
nodejs
function get_advertisedValue()
cpp
string get_advertisedValue()
m
-(NSString*) advertisedValue
pas
function get_advertisedValue(): string
vb
function get_advertisedValue() As String
cs
string get_advertisedValue()
java
String get_advertisedValue()
py
def get_advertisedValue()
php
function get_advertisedValue()
ecmascript
function get_advertisedValue()
cmd
YHubPort target get_advertisedValue

Returns :

a string corresponding to the current value of the Yocto-hub port (no more than 6 characters).

On failure, throws an exception or returns Y_ADVERTISEDVALUE_INVALID.

hubport→get_baudRate()
hubport→baudRate()
hubport.get_baudRate()hubport.get_baudRate()hubport→get_baudRate()[hubport baudRate]hubport.get_baudRate()hubport.get_baudRate()hubport.get_baudRate()hubport.get_baudRate()hubport.get_baudRate()hubport→get_baudRate()hubport.get_baudRate()YHubPort get_baudRate

Returns the current baud rate used by this Yocto-hub port, in kbps.

js
function get_baudRate()
nodejs
function get_baudRate()
cpp
int get_baudRate()
m
-(int) baudRate
pas
function get_baudRate(): LongInt
vb
function get_baudRate() As Integer
cs
int get_baudRate()
java
int get_baudRate()
py
def get_baudRate()
php
function get_baudRate()
ecmascript
function get_baudRate()
cmd
YHubPort target get_baudRate

The default value is 1000 kbps, but a slower rate may be used if communication problems are encountered.

Returns :

an integer corresponding to the current baud rate used by this Yocto-hub port, in kbps

On failure, throws an exception or returns Y_BAUDRATE_INVALID.

hubport→get_enabled()
hubport→enabled()
hubport.get_enabled()hubport.get_enabled()hubport→get_enabled()[hubport enabled]hubport.get_enabled()hubport.get_enabled()hubport.get_enabled()hubport.get_enabled()hubport.get_enabled()hubport→get_enabled()hubport.get_enabled()YHubPort get_enabled

Returns true if the Yocto-hub port is powered, false otherwise.

js
function get_enabled()
nodejs
function get_enabled()
cpp
Y_ENABLED_enum get_enabled()
m
-(Y_ENABLED_enum) enabled
pas
function get_enabled(): Integer
vb
function get_enabled() As Integer
cs
int get_enabled()
java
int get_enabled()
py
def get_enabled()
php
function get_enabled()
ecmascript
function get_enabled()
cmd
YHubPort target get_enabled

Returns :

either Y_ENABLED_FALSE or Y_ENABLED_TRUE, according to true if the Yocto-hub port is powered, false otherwise

On failure, throws an exception or returns Y_ENABLED_INVALID.

hubport→get_errorMessage()
hubport→errorMessage()
hubport.get_errorMessage()hubport.get_errorMessage()hubport→get_errorMessage()[hubport errorMessage]hubport.get_errorMessage()hubport.get_errorMessage()hubport.get_errorMessage()hubport.get_errorMessage()hubport.get_errorMessage()hubport→get_errorMessage()hubport.get_errorMessage()

Returns the error message of the latest error with the Yocto-hub port.

js
function get_errorMessage()
nodejs
function get_errorMessage()
cpp
string get_errorMessage()
m
-(NSString*) errorMessage
pas
function get_errorMessage(): string
vb
function get_errorMessage() As String
cs
string get_errorMessage()
java
String get_errorMessage()
py
def get_errorMessage()
php
function get_errorMessage()
ecmascript
function get_errorMessage()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a string corresponding to the latest error message that occured while using the Yocto-hub port object

hubport→get_errorType()
hubport→errorType()
hubport.get_errorType()hubport.get_errorType()hubport→get_errorType()hubport.get_errorType()hubport.get_errorType()hubport.get_errorType()hubport.get_errorType()hubport.get_errorType()hubport→get_errorType()hubport.get_errorType()

Returns the numerical error code of the latest error with the Yocto-hub port.

js
function get_errorType()
nodejs
function get_errorType()
cpp
YRETCODE get_errorType()
pas
function get_errorType(): YRETCODE
vb
function get_errorType() As YRETCODE
cs
YRETCODE get_errorType()
java
int get_errorType()
py
def get_errorType()
php
function get_errorType()
ecmascript
function get_errorType()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a number corresponding to the code of the latest error that occurred while using the Yocto-hub port object

hubport→get_friendlyName()
hubport→friendlyName()
hubport.get_friendlyName()hubport.get_friendlyName()hubport→get_friendlyName()[hubport friendlyName]hubport.get_friendlyName()hubport.get_friendlyName()hubport.get_friendlyName()hubport→get_friendlyName()hubport.get_friendlyName()

Returns a global identifier of the Yocto-hub port in the format MODULE_NAME.FUNCTION_NAME.

js
function get_friendlyName()
nodejs
function get_friendlyName()
cpp
string get_friendlyName()
m
-(NSString*) friendlyName
cs
string get_friendlyName()
java
String get_friendlyName()
py
def get_friendlyName()
php
function get_friendlyName()
ecmascript
function get_friendlyName()

The returned string uses the logical names of the module and of the Yocto-hub port if they are defined, otherwise the serial number of the module and the hardware identifier of the Yocto-hub port (for example: MyCustomName.relay1)

Returns :

a string that uniquely identifies the Yocto-hub port using logical names (ex: MyCustomName.relay1)

On failure, throws an exception or returns Y_FRIENDLYNAME_INVALID.

hubport→get_functionDescriptor()
hubport→functionDescriptor()
hubport.get_functionDescriptor()hubport.get_functionDescriptor()hubport→get_functionDescriptor()[hubport functionDescriptor]hubport.get_functionDescriptor()hubport.get_functionDescriptor()hubport.get_functionDescriptor()hubport.get_functionDescriptor()hubport.get_functionDescriptor()hubport→get_functionDescriptor()hubport.get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

js
function get_functionDescriptor()
nodejs
function get_functionDescriptor()
cpp
YFUN_DESCR get_functionDescriptor()
m
-(YFUN_DESCR) functionDescriptor
pas
function get_functionDescriptor(): YFUN_DESCR
vb
function get_functionDescriptor() As YFUN_DESCR
cs
YFUN_DESCR get_functionDescriptor()
java
String get_functionDescriptor()
py
def get_functionDescriptor()
php
function get_functionDescriptor()
ecmascript
function get_functionDescriptor()

This identifier can be used to test if two instances of YFunction reference the same physical function on the same physical device.

Returns :

an identifier of type YFUN_DESCR.

If the function has never been contacted, the returned value is Y_FUNCTIONDESCRIPTOR_INVALID.

hubport→get_functionId()
hubport→functionId()
hubport.get_functionId()hubport.get_functionId()hubport→get_functionId()[hubport functionId]hubport.get_functionId()hubport.get_functionId()hubport.get_functionId()hubport.get_functionId()hubport→get_functionId()hubport.get_functionId()

Returns the hardware identifier of the Yocto-hub port, without reference to the module.

js
function get_functionId()
nodejs
function get_functionId()
cpp
string get_functionId()
m
-(NSString*) functionId
vb
function get_functionId() As String
cs
string get_functionId()
java
String get_functionId()
py
def get_functionId()
php
function get_functionId()
ecmascript
function get_functionId()

For example relay1

Returns :

a string that identifies the Yocto-hub port (ex: relay1)

On failure, throws an exception or returns Y_FUNCTIONID_INVALID.

hubport→get_hardwareId()
hubport→hardwareId()
hubport.get_hardwareId()hubport.get_hardwareId()hubport→get_hardwareId()[hubport hardwareId]hubport.get_hardwareId()hubport.get_hardwareId()hubport.get_hardwareId()hubport.get_hardwareId()hubport→get_hardwareId()hubport.get_hardwareId()

Returns the unique hardware identifier of the Yocto-hub port in the form SERIAL.FUNCTIONID.

js
function get_hardwareId()
nodejs
function get_hardwareId()
cpp
string get_hardwareId()
m
-(NSString*) hardwareId
vb
function get_hardwareId() As String
cs
string get_hardwareId()
java
String get_hardwareId()
py
def get_hardwareId()
php
function get_hardwareId()
ecmascript
function get_hardwareId()

The unique hardware identifier is composed of the device serial number and of the hardware identifier of the Yocto-hub port (for example RELAYLO1-123456.relay1).

Returns :

a string that uniquely identifies the Yocto-hub port (ex: RELAYLO1-123456.relay1)

On failure, throws an exception or returns Y_HARDWAREID_INVALID.

hubport→get_logicalName()
hubport→logicalName()
hubport.get_logicalName()hubport.get_logicalName()hubport→get_logicalName()[hubport logicalName]hubport.get_logicalName()hubport.get_logicalName()hubport.get_logicalName()hubport.get_logicalName()hubport.get_logicalName()hubport→get_logicalName()hubport.get_logicalName()YHubPort get_logicalName

Returns the logical name of the Yocto-hub port.

js
function get_logicalName()
nodejs
function get_logicalName()
cpp
string get_logicalName()
m
-(NSString*) logicalName
pas
function get_logicalName(): string
vb
function get_logicalName() As String
cs
string get_logicalName()
java
String get_logicalName()
py
def get_logicalName()
php
function get_logicalName()
ecmascript
function get_logicalName()
cmd
YHubPort target get_logicalName

Returns :

a string corresponding to the logical name of the Yocto-hub port.

On failure, throws an exception or returns Y_LOGICALNAME_INVALID.

hubport→get_module()
hubport→module()
hubport.get_module()hubport.get_module()hubport→get_module()[hubport module]hubport.get_module()hubport.get_module()hubport.get_module()hubport.get_module()hubport.get_module()hubport→get_module()hubport.get_module()

Gets the YModule object for the device on which the function is located.

js
function get_module()
nodejs
function get_module()
cpp
YModule * get_module()
m
-(YModule*) module
pas
function get_module(): TYModule
vb
function get_module() As YModule
cs
YModule get_module()
java
YModule get_module()
py
def get_module()
php
function get_module()
ecmascript
function get_module()

If the function cannot be located on any module, the returned instance of YModule is not shown as on-line.

Returns :

an instance of YModule

hubport→get_module_async()
hubport→module_async()
hubport.get_module_async()hubport.get_module_async()

Gets the YModule object for the device on which the function is located (asynchronous version).

js
function get_module_async(callback, context)
nodejs
function get_module_async(callback, context)

If the function cannot be located on any module, the returned YModule object does not show as on-line.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking Firefox javascript VM that does not implement context switching during blocking I/O calls. See the documentation section on asynchronous Javascript calls for more details.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the requested YModule object
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

hubport→get_portState()
hubport→portState()
hubport.get_portState()hubport.get_portState()hubport→get_portState()[hubport portState]hubport.get_portState()hubport.get_portState()hubport.get_portState()hubport.get_portState()hubport.get_portState()hubport→get_portState()hubport.get_portState()YHubPort get_portState

Returns the current state of the Yocto-hub port.

js
function get_portState()
nodejs
function get_portState()
cpp
Y_PORTSTATE_enum get_portState()
m
-(Y_PORTSTATE_enum) portState
pas
function get_portState(): Integer
vb
function get_portState() As Integer
cs
int get_portState()
java
int get_portState()
py
def get_portState()
php
function get_portState()
ecmascript
function get_portState()
cmd
YHubPort target get_portState

Returns :

a value among Y_PORTSTATE_OFF, Y_PORTSTATE_OVRLD, Y_PORTSTATE_ON, Y_PORTSTATE_RUN and Y_PORTSTATE_PROG corresponding to the current state of the Yocto-hub port

On failure, throws an exception or returns Y_PORTSTATE_INVALID.

hubport→get_userData()
hubport→userData()
hubport.get_userData()hubport.get_userData()hubport→get_userData()[hubport userData]hubport.get_userData()hubport.get_userData()hubport.get_userData()hubport.get_userData()hubport.get_userData()hubport→get_userData()hubport.get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

js
function get_userData()
nodejs
function get_userData()
cpp
void * get_userData()
m
-(id) userData
pas
function get_userData(): Tobject
vb
function get_userData() As Object
cs
object get_userData()
java
Object get_userData()
py
def get_userData()
php
function get_userData()
ecmascript
function get_userData()

This attribute is never touched directly by the API, and is at disposal of the caller to store a context.

Returns :

the object stored previously by the caller.

hubport→isOnline()hubport.isOnline()hubport.isOnline()hubport→isOnline()[hubport isOnline]hubport.isOnline()hubport.isOnline()hubport.isOnline()hubport.isOnline()hubport.isOnline()hubport→isOnline()hubport.isOnline()

Checks if the Yocto-hub port is currently reachable, without raising any error.

js
function isOnline()
nodejs
function isOnline()
cpp
bool isOnline()
m
-(BOOL) isOnline
pas
function isOnline(): boolean
vb
function isOnline() As Boolean
cs
bool isOnline()
java
boolean isOnline()
py
def isOnline()
php
function isOnline()
ecmascript
function isOnline()

If there is a cached value for the Yocto-hub port in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the Yocto-hub port.

Returns :

true if the Yocto-hub port can be reached, and false otherwise

hubport→isOnline_async()hubport.isOnline_async()hubport.isOnline_async()

Checks if the Yocto-hub port is currently reachable, without raising any error (asynchronous version).

js
function isOnline_async(callback, context)
nodejs
function isOnline_async(callback, context)

If there is a cached value for the Yocto-hub port in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the requested function.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the boolean result
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

hubport→load()hubport.load()hubport.load()hubport→load()[hubport load: ]hubport.load()hubport.load()hubport.load()hubport.load()hubport.load()hubport→load()hubport.load()

Preloads the Yocto-hub port cache with a specified validity duration.

js
function load(msValidity)
nodejs
function load(msValidity)
cpp
YRETCODE load(int msValidity)
m
-(YRETCODE) load: (int) msValidity
pas
function load(msValidity: integer): YRETCODE
vb
function load(ByVal msValidity As Integer) As YRETCODE
cs
YRETCODE load(ulong msValidity)
java
int load(long msValidity)
py
def load(msValidity)
php
function load($msValidity)
ecmascript
function load(msValidity)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network traffic for instance.

Parameters :

msValidityan integer corresponding to the validity attributed to the loaded function parameters, in milliseconds

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

hubport→load_async()hubport.load_async()hubport.load_async()

Preloads the Yocto-hub port cache with a specified validity duration (asynchronous version).

js
function load_async(msValidity, callback, context)
nodejs
function load_async(msValidity, callback, context)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network trafic for instance.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

msValidityan integer corresponding to the validity of the loaded function parameters, in milliseconds
callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the error code (or YAPI_SUCCESS)
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

hubport→muteValueCallbacks()hubport.muteValueCallbacks()hubport.muteValueCallbacks()hubport→muteValueCallbacks()[hubport muteValueCallbacks]hubport.muteValueCallbacks()hubport.muteValueCallbacks()hubport.muteValueCallbacks()hubport.muteValueCallbacks()hubport.muteValueCallbacks()hubport→muteValueCallbacks()hubport.muteValueCallbacks()YHubPort muteValueCallbacks

Disable the propagation of every new advertised value to the parent hub.

js
function muteValueCallbacks()
nodejs
function muteValueCallbacks()
cpp
int muteValueCallbacks()
m
-(int) muteValueCallbacks
pas
function muteValueCallbacks(): LongInt
vb
function muteValueCallbacks() As Integer
cs
int muteValueCallbacks()
java
int muteValueCallbacks()
py
def muteValueCallbacks()
php
function muteValueCallbacks()
ecmascript
function muteValueCallbacks()
cmd
YHubPort target muteValueCallbacks

You can use this function to save bandwidth and CPU on computers with limited resources, or to prevent unwanted invocations of the HTTP callback. Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

hubport→nextHubPort()hubport.nextHubPort()hubport.nextHubPort()hubport→nextHubPort()[hubport nextHubPort]hubport.nextHubPort()hubport.nextHubPort()hubport.nextHubPort()hubport.nextHubPort()hubport.nextHubPort()hubport→nextHubPort()hubport.nextHubPort()

Continues the enumeration of Yocto-hub ports started using yFirstHubPort().

js
function nextHubPort()
nodejs
function nextHubPort()
cpp
YHubPort * nextHubPort()
m
-(YHubPort*) nextHubPort
pas
function nextHubPort(): TYHubPort
vb
function nextHubPort() As YHubPort
cs
YHubPort nextHubPort()
java
YHubPort nextHubPort()
py
def nextHubPort()
php
function nextHubPort()
ecmascript
function nextHubPort()

Returns :

a pointer to a YHubPort object, corresponding to a Yocto-hub port currently online, or a null pointer if there are no more Yocto-hub ports to enumerate.

hubport→registerValueCallback()hubport.registerValueCallback()hubport.registerValueCallback()hubport→registerValueCallback()[hubport registerValueCallback: ]hubport.registerValueCallback()hubport.registerValueCallback()hubport.registerValueCallback()hubport.registerValueCallback()hubport.registerValueCallback()hubport→registerValueCallback()hubport.registerValueCallback()

Registers the callback function that is invoked on every change of advertised value.

js
function registerValueCallback(callback)
nodejs
function registerValueCallback(callback)
cpp
int registerValueCallback(YHubPortValueCallback callback)
m
-(int) registerValueCallback: (YHubPortValueCallback) callback
pas
function registerValueCallback(callback: TYHubPortValueCallback): LongInt
vb
function registerValueCallback() As Integer
cs
int registerValueCallback(ValueCallback callback)
java
int registerValueCallback(UpdateCallback callback)
py
def registerValueCallback(callback)
php
function registerValueCallback($callback)
ecmascript
function registerValueCallback(callback)

The callback is invoked only during the execution of ySleep or yHandleEvents. This provides control over the time when the callback is triggered. For good responsiveness, remember to call one of these two functions periodically. To unregister a callback, pass a null pointer as argument.

Parameters :

callbackthe callback function to call, or a null pointer. The callback function should take two arguments: the function object of which the value has changed, and the character string describing the new advertised value.

hubport→set_enabled()
hubport→setEnabled()
hubport.set_enabled()hubport.set_enabled()hubport→set_enabled()[hubport setEnabled: ]hubport.set_enabled()hubport.set_enabled()hubport.set_enabled()hubport.set_enabled()hubport.set_enabled()hubport→set_enabled()hubport.set_enabled()YHubPort set_enabled

Changes the activation of the Yocto-hub port.

js
function set_enabled(newval)
nodejs
function set_enabled(newval)
cpp
int set_enabled(Y_ENABLED_enum newval)
m
-(int) setEnabled: (Y_ENABLED_enum) newval
pas
function set_enabled(newval: Integer): integer
vb
function set_enabled(ByVal newval As Integer) As Integer
cs
int set_enabled(int newval)
java
int set_enabled(int newval)
py
def set_enabled(newval)
php
function set_enabled($newval)
ecmascript
function set_enabled(newval)
cmd
YHubPort target set_enabled newval

If the port is enabled, the connected module is powered. Otherwise, port power is shut down.

Parameters :

newvaleither Y_ENABLED_FALSE or Y_ENABLED_TRUE, according to the activation of the Yocto-hub port

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

hubport→set_logicalName()
hubport→setLogicalName()
hubport.set_logicalName()hubport.set_logicalName()hubport→set_logicalName()[hubport setLogicalName: ]hubport.set_logicalName()hubport.set_logicalName()hubport.set_logicalName()hubport.set_logicalName()hubport.set_logicalName()hubport→set_logicalName()hubport.set_logicalName()YHubPort set_logicalName

Changes the logical name of the Yocto-hub port.

js
function set_logicalName(newval)
nodejs
function set_logicalName(newval)
cpp
int set_logicalName(const string& newval)
m
-(int) setLogicalName: (NSString*) newval
pas
function set_logicalName(newval: string): integer
vb
function set_logicalName(ByVal newval As String) As Integer
cs
int set_logicalName(string newval)
java
int set_logicalName(String newval)
py
def set_logicalName(newval)
php
function set_logicalName($newval)
ecmascript
function set_logicalName(newval)
cmd
YHubPort target set_logicalName newval

You can use yCheckLogicalName() prior to this call to make sure that your parameter is valid. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the logical name of the Yocto-hub port.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

hubport→set_userData()
hubport→setUserData()
hubport.set_userData()hubport.set_userData()hubport→set_userData()[hubport setUserData: ]hubport.set_userData()hubport.set_userData()hubport.set_userData()hubport.set_userData()hubport.set_userData()hubport→set_userData()hubport.set_userData()

Stores a user context provided as argument in the userData attribute of the function.

js
function set_userData(data)
nodejs
function set_userData(data)
cpp
void set_userData(void* data)
m
-(void) setUserData: (id) data
pas
procedure set_userData(data: Tobject)
vb
procedure set_userData(ByVal data As Object)
cs
void set_userData(object data)
java
void set_userData(Object data)
py
def set_userData(data)
php
function set_userData($data)
ecmascript
function set_userData(data)

This attribute is never touched by the API, and is at disposal of the caller to store a context.

Parameters :

dataany kind of object to be stored

hubport→unmuteValueCallbacks()hubport.unmuteValueCallbacks()hubport.unmuteValueCallbacks()hubport→unmuteValueCallbacks()[hubport unmuteValueCallbacks]hubport.unmuteValueCallbacks()hubport.unmuteValueCallbacks()hubport.unmuteValueCallbacks()hubport.unmuteValueCallbacks()hubport.unmuteValueCallbacks()hubport→unmuteValueCallbacks()hubport.unmuteValueCallbacks()YHubPort unmuteValueCallbacks

Re-enable the propagation of every new advertised value to the parent hub.

js
function unmuteValueCallbacks()
nodejs
function unmuteValueCallbacks()
cpp
int unmuteValueCallbacks()
m
-(int) unmuteValueCallbacks
pas
function unmuteValueCallbacks(): LongInt
vb
function unmuteValueCallbacks() As Integer
cs
int unmuteValueCallbacks()
java
int unmuteValueCallbacks()
py
def unmuteValueCallbacks()
php
function unmuteValueCallbacks()
ecmascript
function unmuteValueCallbacks()
cmd
YHubPort target unmuteValueCallbacks

This function reverts the effect of a previous call to muteValueCallbacks(). Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

hubport→wait_async()hubport.wait_async()hubport.wait_async()hubport.wait_async()

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

js
function wait_async(callback, context)
nodejs
function wait_async(callback, context)
ecmascript
function wait_async(callback, context, null)

The callback function can therefore freely issue synchronous or asynchronous commands, without risking to block the Javascript VM.

Parameters :

callbackcallback function that is invoked when all pending commands on the module are completed. The callback function receives two arguments: the caller-specific context object and the receiving function object.
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing.

8.2. Cellular function interface

YCellular functions provides control over cellular network parameters and status for devices that are GSM-enabled.

In order to use the functions described here, you should include:

js
<script type='text/javascript' src='yocto_cellular.js'></script>
nodejs
var yoctolib = require('yoctolib');
var YCellular = yoctolib.YCellular;
cpp
#include "yocto_cellular.h"
m
#import "yocto_cellular.h"
pas
uses yocto_cellular;
vb
yocto_cellular.vb
cs
yocto_cellular.cs
java
import com.yoctopuce.YoctoAPI.YCellular;
py
from yocto_cellular import *
php
require_once('yocto_cellular.php');
ecmascript
import { YCellular } from 'yoctolib-es'
Global functions
yFindCellular(func)

Retrieves a cellular interface for a given identifier.

yFindCellularInContext(yctx, func)

Retrieves a cellular interface for a given identifier in a YAPI context.

yFirstCellular()

Starts the enumeration of cellular interfaces currently accessible.

yFirstCellularInContext(yctx)

Starts the enumeration of cellular interfaces currently accessible.

y_AT(cmd)

Sends an AT command to the GSM module and returns the command output.

YCellular methods
cellular→clearCache()

Invalidates the cache.

cellular→describe()

Returns a short text that describes unambiguously the instance of the cellular interface in the form TYPE(NAME)=SERIAL.FUNCTIONID.

cellular→get_advertisedValue()

Returns the current value of the cellular interface (no more than 6 characters).

cellular→get_apn()

Returns the Access Point Name (APN) to be used, if needed.

cellular→get_apnSecret()

Returns an opaque string if APN authentication parameters have been configured in the device, or an empty string otherwise.

cellular→get_availableOperators()

Returns the list detected cell operators in the neighborhood.

cellular→get_cellIdentifier()

Returns the unique identifier of the cellular antenna in use: MCC, MNC, LAC and Cell ID.

cellular→get_cellOperator()

Returns the name of the cell operator currently in use.

cellular→get_enableData()

Returns the condition for enabling IP data services (GPRS).

cellular→get_errorMessage()

Returns the error message of the latest error with the cellular interface.

cellular→get_errorType()

Returns the numerical error code of the latest error with the cellular interface.

cellular→get_friendlyName()

Returns a global identifier of the cellular interface in the format MODULE_NAME.FUNCTION_NAME.

cellular→get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

cellular→get_functionId()

Returns the hardware identifier of the cellular interface, without reference to the module.

cellular→get_hardwareId()

Returns the unique hardware identifier of the cellular interface in the form SERIAL.FUNCTIONID.

cellular→get_imsi()

Returns an opaque string if a PIN code has been configured in the device to access the SIM card, or an empty string if none has been configured or if the code provided was rejected by the SIM card.

cellular→get_linkQuality()

Returns the link quality, expressed in percent.

cellular→get_lockedOperator()

Returns the name of the only cell operator to use if automatic choice is disabled, or an empty string if the SIM card will automatically choose among available cell operators.

cellular→get_logicalName()

Returns the logical name of the cellular interface.

cellular→get_message()

Returns the latest status message from the wireless interface.

cellular→get_module()

Gets the YModule object for the device on which the function is located.

cellular→get_module_async(callback, context)

Gets the YModule object for the device on which the function is located (asynchronous version).

cellular→get_pin()

Returns an opaque string if a PIN code has been configured in the device to access the SIM card, or an empty string if none has been configured or if the code provided was rejected by the SIM card.

cellular→get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

cellular→isOnline()

Checks if the cellular interface is currently reachable, without raising any error.

cellular→isOnline_async(callback, context)

Checks if the cellular interface is currently reachable, without raising any error (asynchronous version).

cellular→load(msValidity)

Preloads the cellular interface cache with a specified validity duration.

cellular→load_async(msValidity, callback, context)

Preloads the cellular interface cache with a specified validity duration (asynchronous version).

cellular→muteValueCallbacks()

Disable the propagation of every new advertised value to the parent hub.

cellular→nextCellular()

Continues the enumeration of cellular interfaces started using yFirstCellular().

cellular→quickCellSurvey()

Returns a list of nearby cellular antennas, as required for quick geolocation of the device.

cellular→registerValueCallback(callback)

Registers the callback function that is invoked on every change of advertised value.

cellular→sendPUK(puk, newPin)

Sends a PUK code to unlock the SIM card after three failed PIN code attempts, and setup a new PIN into the SIM card.

cellular→set_apn(newval)

Returns the Access Point Name (APN) to be used, if needed.

cellular→set_apnAuth(username, password)

Configure authentication parameters to connect to the APN.

cellular→set_enableData(newval)

Changes the condition for enabling IP data services (GPRS).

cellular→set_lockedOperator(newval)

Changes the name of the cell operator to be used.

cellular→set_logicalName(newval)

Changes the logical name of the cellular interface.

cellular→set_pin(newval)

Changes the PIN code used by the module to access the SIM card.

cellular→set_userData(data)

Stores a user context provided as argument in the userData attribute of the function.

cellular→unmuteValueCallbacks()

Re-enable the propagation of every new advertised value to the parent hub.

cellular→wait_async(callback, context)

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

YCellular.FindCellular()
yFindCellular()
yFindCellular()YCellular.FindCellular()yFindCellular()[YCellular FindCellular: ]yFindCellular()yFindCellular()YCellular.FindCellular()YCellular.FindCellular()YCellular.FindCellular()yFindCellular()YCellular.FindCellular()

Retrieves a cellular interface for a given identifier.

js
function yFindCellular(func)
nodejs
function FindCellular(func)
cpp
YCellular* yFindCellular(string func)
m
+(YCellular*) FindCellular: (NSString*) func
pas
function yFindCellular(func: string): TYCellular
vb
function yFindCellular(ByVal func As String) As YCellular
cs
YCellular FindCellular(string func)
java
YCellular FindCellular(String func)
py
def FindCellular(func)
php
function yFindCellular($func)
ecmascript
function FindCellular(func)

The identifier can be specified using several formats:

This function does not require that the cellular interface is online at the time it is invoked. The returned object is nevertheless valid. Use the method YCellular.isOnline() to test if the cellular interface is indeed online at a given time. In case of ambiguity when looking for a cellular interface by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

funca string that uniquely characterizes the cellular interface

Returns :

a YCellular object allowing you to drive the cellular interface.

YCellular.FindCellularInContext()
yFindCellularInContext()
YCellular.FindCellularInContext()YCellular.FindCellularInContext()

Retrieves a cellular interface for a given identifier in a YAPI context.

java
YCellular FindCellularInContext(YAPIContext yctx, String func)
ecmascript
function FindCellularInContext(yctx, func)

The identifier can be specified using several formats:

This function does not require that the cellular interface is online at the time it is invoked. The returned object is nevertheless valid. Use the method YCellular.isOnline() to test if the cellular interface is indeed online at a given time. In case of ambiguity when looking for a cellular interface by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

yctxa YAPI context
funca string that uniquely characterizes the cellular interface

Returns :

a YCellular object allowing you to drive the cellular interface.

YCellular.FirstCellular()
yFirstCellular()
yFirstCellular()YCellular.FirstCellular()yFirstCellular()[YCellular FirstCellular]yFirstCellular()yFirstCellular()YCellular.FirstCellular()YCellular.FirstCellular()YCellular.FirstCellular()yFirstCellular()YCellular.FirstCellular()

Starts the enumeration of cellular interfaces currently accessible.

js
function yFirstCellular()
nodejs
function FirstCellular()
cpp
YCellular* yFirstCellular()
m
+(YCellular*) FirstCellular
pas
function yFirstCellular(): TYCellular
vb
function yFirstCellular() As YCellular
cs
YCellular FirstCellular()
java
YCellular FirstCellular()
py
def FirstCellular()
php
function yFirstCellular()
ecmascript
function FirstCellular()

Use the method YCellular.nextCellular() to iterate on next cellular interfaces.

Returns :

a pointer to a YCellular object, corresponding to the first cellular interface currently online, or a null pointer if there are none.

YCellular.FirstCellularInContext()
yFirstCellularInContext()
YCellular.FirstCellularInContext()YCellular.FirstCellularInContext()

Starts the enumeration of cellular interfaces currently accessible.

java
YCellular FirstCellularInContext(YAPIContext yctx)
ecmascript
function FirstCellularInContext(yctx)

Use the method YCellular.nextCellular() to iterate on next cellular interfaces.

Parameters :

yctxa YAPI context.

Returns :

a pointer to a YCellular object, corresponding to the first cellular interface currently online, or a null pointer if there are none.

YCellular._AT()
y_AT()
y_AT()[cellular _AT: ]y_AT()y_AT()cellular._AT()cellular._AT()cellular._AT()y_AT()cellular._AT()YCellular _AT

Sends an AT command to the GSM module and returns the command output.

cpp
string y_AT(string cmd)
m
-(NSString*) _AT: (NSString*) cmd
pas
function y_AT(cmd: string): string
vb
function y_AT() As String
cs
string _AT(string cmd)
java
String _AT(String cmd)
py
def _AT(cmd)
php
function y_AT($cmd)
ecmascript
function _AT(cmd)
cmd
YCellular target _AT cmd

The command will only execute when the GSM module is in standard command state, and should leave it in the exact same state. Use this function with great care !

Parameters :

cmdthe AT command to execute, like for instance: "+CCLK?".

Returns :

a string with the result of the commands. Empty lines are automatically removed from the output.

cellular→clearCache()cellular.clearCache()cellular.clearCache()cellular→clearCache()[cellular clearCache]cellular.clearCache()cellular.clearCache()cellular.clearCache()cellular.clearCache()cellular.clearCache()cellular→clearCache()cellular.clearCache()

Invalidates the cache.

js
function clearCache()
nodejs
function clearCache()
cpp
void clearCache()
m
-(void) clearCache
pas
procedure clearCache()
vb
procedure clearCache()
cs
void clearCache()
java
void clearCache()
py
def clearCache()
php
function clearCache()
ecmascript
function clearCache()

Invalidates the cache of the cellular interface attributes. Forces the next call to get_xxx() or loadxxx() to use values that come from the device.

cellular→describe()cellular.describe()cellular.describe()cellular→describe()[cellular describe]cellular.describe()cellular.describe()cellular.describe()cellular.describe()cellular.describe()cellular→describe()cellular.describe()

Returns a short text that describes unambiguously the instance of the cellular interface in the form TYPE(NAME)=SERIAL.FUNCTIONID.

js
function describe()
nodejs
function describe()
cpp
string describe()
m
-(NSString*) describe
pas
function describe(): string
vb
function describe() As String
cs
string describe()
java
String describe()
py
def describe()
php
function describe()
ecmascript
function describe()

More precisely, TYPE is the type of the function, NAME it the name used for the first access to the function, SERIAL is the serial number of the module if the module is connected or "unresolved", and FUNCTIONID is the hardware identifier of the function if the module is connected. For example, this method returns Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1 if the module is already connected or Relay(BadCustomeName.relay1)=unresolved if the module has not yet been connected. This method does not trigger any USB or TCP transaction and can therefore be used in a debugger.

Returns :

a string that describes the cellular interface (ex: Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1)

cellular→get_advertisedValue()
cellular→advertisedValue()
cellular.get_advertisedValue()cellular.get_advertisedValue()cellular→get_advertisedValue()[cellular advertisedValue]cellular.get_advertisedValue()cellular.get_advertisedValue()cellular.get_advertisedValue()cellular.get_advertisedValue()cellular.get_advertisedValue()cellular→get_advertisedValue()cellular.get_advertisedValue()YCellular get_advertisedValue

Returns the current value of the cellular interface (no more than 6 characters).

js
function get_advertisedValue()
nodejs
function get_advertisedValue()
cpp
string get_advertisedValue()
m
-(NSString*) advertisedValue
pas
function get_advertisedValue(): string
vb
function get_advertisedValue() As String
cs
string get_advertisedValue()
java
String get_advertisedValue()
py
def get_advertisedValue()
php
function get_advertisedValue()
ecmascript
function get_advertisedValue()
cmd
YCellular target get_advertisedValue

Returns :

a string corresponding to the current value of the cellular interface (no more than 6 characters).

On failure, throws an exception or returns Y_ADVERTISEDVALUE_INVALID.

cellular→get_apn()
cellular→apn()
cellular.get_apn()cellular.get_apn()cellular→get_apn()[cellular apn]cellular.get_apn()cellular.get_apn()cellular.get_apn()cellular.get_apn()cellular.get_apn()cellular→get_apn()cellular.get_apn()YCellular get_apn

Returns the Access Point Name (APN) to be used, if needed.

js
function get_apn()
nodejs
function get_apn()
cpp
string get_apn()
m
-(NSString*) apn
pas
function get_apn(): string
vb
function get_apn() As String
cs
string get_apn()
java
String get_apn()
py
def get_apn()
php
function get_apn()
ecmascript
function get_apn()
cmd
YCellular target get_apn

When left blank, the APN suggested by the cell operator will be used.

Returns :

a string corresponding to the Access Point Name (APN) to be used, if needed

On failure, throws an exception or returns Y_APN_INVALID.

cellular→get_apnSecret()
cellular→apnSecret()
cellular.get_apnSecret()cellular.get_apnSecret()cellular→get_apnSecret()[cellular apnSecret]cellular.get_apnSecret()cellular.get_apnSecret()cellular.get_apnSecret()cellular.get_apnSecret()cellular.get_apnSecret()cellular→get_apnSecret()cellular.get_apnSecret()YCellular get_apnSecret

Returns an opaque string if APN authentication parameters have been configured in the device, or an empty string otherwise.

js
function get_apnSecret()
nodejs
function get_apnSecret()
cpp
string get_apnSecret()
m
-(NSString*) apnSecret
pas
function get_apnSecret(): string
vb
function get_apnSecret() As String
cs
string get_apnSecret()
java
String get_apnSecret()
py
def get_apnSecret()
php
function get_apnSecret()
ecmascript
function get_apnSecret()
cmd
YCellular target get_apnSecret

To configure these parameters, use set_apnAuth().

Returns :

a string corresponding to an opaque string if APN authentication parameters have been configured in the device, or an empty string otherwise

On failure, throws an exception or returns Y_APNSECRET_INVALID.

cellular→get_availableOperators()
cellular→availableOperators()
cellular.get_availableOperators()cellular.get_availableOperators()cellular→get_availableOperators()[cellular availableOperators]cellular.get_availableOperators()cellular.get_availableOperators()cellular.get_availableOperators()cellular.get_availableOperators()cellular.get_availableOperators()cellular→get_availableOperators()cellular.get_availableOperators()YCellular get_availableOperators

Returns the list detected cell operators in the neighborhood.

js
function get_availableOperators()
nodejs
function get_availableOperators()
cpp
vector<string> get_availableOperators()
m
-(NSMutableArray*) availableOperators
pas
function get_availableOperators(): TStringArray
vb
function get_availableOperators() As List
cs
List<string> get_availableOperators()
java
ArrayList<String> get_availableOperators()
py
def get_availableOperators()
php
function get_availableOperators()
ecmascript
function get_availableOperators()
cmd
YCellular target get_availableOperators

This function will typically take between 30 seconds to 1 minute to return. Note that any SIM card can usually only connect to specific operators. All networks returned by this function might therefore not be available for connection.

Returns :

a list of string (cell operator names).

cellular→get_cellIdentifier()
cellular→cellIdentifier()
cellular.get_cellIdentifier()cellular.get_cellIdentifier()cellular→get_cellIdentifier()[cellular cellIdentifier]cellular.get_cellIdentifier()cellular.get_cellIdentifier()cellular.get_cellIdentifier()cellular.get_cellIdentifier()cellular.get_cellIdentifier()cellular→get_cellIdentifier()cellular.get_cellIdentifier()YCellular get_cellIdentifier

Returns the unique identifier of the cellular antenna in use: MCC, MNC, LAC and Cell ID.

js
function get_cellIdentifier()
nodejs
function get_cellIdentifier()
cpp
string get_cellIdentifier()
m
-(NSString*) cellIdentifier
pas
function get_cellIdentifier(): string
vb
function get_cellIdentifier() As String
cs
string get_cellIdentifier()
java
String get_cellIdentifier()
py
def get_cellIdentifier()
php
function get_cellIdentifier()
ecmascript
function get_cellIdentifier()
cmd
YCellular target get_cellIdentifier

Returns :

a string corresponding to the unique identifier of the cellular antenna in use: MCC, MNC, LAC and Cell ID

On failure, throws an exception or returns Y_CELLIDENTIFIER_INVALID.

cellular→get_cellOperator()
cellular→cellOperator()
cellular.get_cellOperator()cellular.get_cellOperator()cellular→get_cellOperator()[cellular cellOperator]cellular.get_cellOperator()cellular.get_cellOperator()cellular.get_cellOperator()cellular.get_cellOperator()cellular.get_cellOperator()cellular→get_cellOperator()cellular.get_cellOperator()YCellular get_cellOperator

Returns the name of the cell operator currently in use.

js
function get_cellOperator()
nodejs
function get_cellOperator()
cpp
string get_cellOperator()
m
-(NSString*) cellOperator
pas
function get_cellOperator(): string
vb
function get_cellOperator() As String
cs
string get_cellOperator()
java
String get_cellOperator()
py
def get_cellOperator()
php
function get_cellOperator()
ecmascript
function get_cellOperator()
cmd
YCellular target get_cellOperator

Returns :

a string corresponding to the name of the cell operator currently in use

On failure, throws an exception or returns Y_CELLOPERATOR_INVALID.

cellular→get_enableData()
cellular→enableData()
cellular.get_enableData()cellular.get_enableData()cellular→get_enableData()[cellular enableData]cellular.get_enableData()cellular.get_enableData()cellular.get_enableData()cellular.get_enableData()cellular.get_enableData()cellular→get_enableData()cellular.get_enableData()YCellular get_enableData

Returns the condition for enabling IP data services (GPRS).

js
function get_enableData()
nodejs
function get_enableData()
cpp
Y_ENABLEDATA_enum get_enableData()
m
-(Y_ENABLEDATA_enum) enableData
pas
function get_enableData(): Integer
vb
function get_enableData() As Integer
cs
int get_enableData()
java
int get_enableData()
py
def get_enableData()
php
function get_enableData()
ecmascript
function get_enableData()
cmd
YCellular target get_enableData

When data services are disabled, SMS are the only mean of communication.

Returns :

a value among Y_ENABLEDATA_HOMENETWORK, Y_ENABLEDATA_ROAMING and Y_ENABLEDATA_NEVER corresponding to the condition for enabling IP data services (GPRS)

On failure, throws an exception or returns Y_ENABLEDATA_INVALID.

cellular→get_errorMessage()
cellular→errorMessage()
cellular.get_errorMessage()cellular.get_errorMessage()cellular→get_errorMessage()[cellular errorMessage]cellular.get_errorMessage()cellular.get_errorMessage()cellular.get_errorMessage()cellular.get_errorMessage()cellular.get_errorMessage()cellular→get_errorMessage()cellular.get_errorMessage()

Returns the error message of the latest error with the cellular interface.

js
function get_errorMessage()
nodejs
function get_errorMessage()
cpp
string get_errorMessage()
m
-(NSString*) errorMessage
pas
function get_errorMessage(): string
vb
function get_errorMessage() As String
cs
string get_errorMessage()
java
String get_errorMessage()
py
def get_errorMessage()
php
function get_errorMessage()
ecmascript
function get_errorMessage()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a string corresponding to the latest error message that occured while using the cellular interface object

cellular→get_errorType()
cellular→errorType()
cellular.get_errorType()cellular.get_errorType()cellular→get_errorType()cellular.get_errorType()cellular.get_errorType()cellular.get_errorType()cellular.get_errorType()cellular.get_errorType()cellular→get_errorType()cellular.get_errorType()

Returns the numerical error code of the latest error with the cellular interface.

js
function get_errorType()
nodejs
function get_errorType()
cpp
YRETCODE get_errorType()
pas
function get_errorType(): YRETCODE
vb
function get_errorType() As YRETCODE
cs
YRETCODE get_errorType()
java
int get_errorType()
py
def get_errorType()
php
function get_errorType()
ecmascript
function get_errorType()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a number corresponding to the code of the latest error that occurred while using the cellular interface object

cellular→get_friendlyName()
cellular→friendlyName()
cellular.get_friendlyName()cellular.get_friendlyName()cellular→get_friendlyName()[cellular friendlyName]cellular.get_friendlyName()cellular.get_friendlyName()cellular.get_friendlyName()cellular→get_friendlyName()cellular.get_friendlyName()

Returns a global identifier of the cellular interface in the format MODULE_NAME.FUNCTION_NAME.

js
function get_friendlyName()
nodejs
function get_friendlyName()
cpp
string get_friendlyName()
m
-(NSString*) friendlyName
cs
string get_friendlyName()
java
String get_friendlyName()
py
def get_friendlyName()
php
function get_friendlyName()
ecmascript
function get_friendlyName()

The returned string uses the logical names of the module and of the cellular interface if they are defined, otherwise the serial number of the module and the hardware identifier of the cellular interface (for example: MyCustomName.relay1)

Returns :

a string that uniquely identifies the cellular interface using logical names (ex: MyCustomName.relay1)

On failure, throws an exception or returns Y_FRIENDLYNAME_INVALID.

cellular→get_functionDescriptor()
cellular→functionDescriptor()
cellular.get_functionDescriptor()cellular.get_functionDescriptor()cellular→get_functionDescriptor()[cellular functionDescriptor]cellular.get_functionDescriptor()cellular.get_functionDescriptor()cellular.get_functionDescriptor()cellular.get_functionDescriptor()cellular.get_functionDescriptor()cellular→get_functionDescriptor()cellular.get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

js
function get_functionDescriptor()
nodejs
function get_functionDescriptor()
cpp
YFUN_DESCR get_functionDescriptor()
m
-(YFUN_DESCR) functionDescriptor
pas
function get_functionDescriptor(): YFUN_DESCR
vb
function get_functionDescriptor() As YFUN_DESCR
cs
YFUN_DESCR get_functionDescriptor()
java
String get_functionDescriptor()
py
def get_functionDescriptor()
php
function get_functionDescriptor()
ecmascript
function get_functionDescriptor()

This identifier can be used to test if two instances of YFunction reference the same physical function on the same physical device.

Returns :

an identifier of type YFUN_DESCR.

If the function has never been contacted, the returned value is Y_FUNCTIONDESCRIPTOR_INVALID.

cellular→get_functionId()
cellular→functionId()
cellular.get_functionId()cellular.get_functionId()cellular→get_functionId()[cellular functionId]cellular.get_functionId()cellular.get_functionId()cellular.get_functionId()cellular.get_functionId()cellular→get_functionId()cellular.get_functionId()

Returns the hardware identifier of the cellular interface, without reference to the module.

js
function get_functionId()
nodejs
function get_functionId()
cpp
string get_functionId()
m
-(NSString*) functionId
vb
function get_functionId() As String
cs
string get_functionId()
java
String get_functionId()
py
def get_functionId()
php
function get_functionId()
ecmascript
function get_functionId()

For example relay1

Returns :

a string that identifies the cellular interface (ex: relay1)

On failure, throws an exception or returns Y_FUNCTIONID_INVALID.

cellular→get_hardwareId()
cellular→hardwareId()
cellular.get_hardwareId()cellular.get_hardwareId()cellular→get_hardwareId()[cellular hardwareId]cellular.get_hardwareId()cellular.get_hardwareId()cellular.get_hardwareId()cellular.get_hardwareId()cellular→get_hardwareId()cellular.get_hardwareId()

Returns the unique hardware identifier of the cellular interface in the form SERIAL.FUNCTIONID.

js
function get_hardwareId()
nodejs
function get_hardwareId()
cpp
string get_hardwareId()
m
-(NSString*) hardwareId
vb
function get_hardwareId() As String
cs
string get_hardwareId()
java
String get_hardwareId()
py
def get_hardwareId()
php
function get_hardwareId()
ecmascript
function get_hardwareId()

The unique hardware identifier is composed of the device serial number and of the hardware identifier of the cellular interface (for example RELAYLO1-123456.relay1).

Returns :

a string that uniquely identifies the cellular interface (ex: RELAYLO1-123456.relay1)

On failure, throws an exception or returns Y_HARDWAREID_INVALID.

cellular→get_imsi()
cellular→imsi()
cellular.get_imsi()cellular.get_imsi()cellular→get_imsi()[cellular imsi]cellular.get_imsi()cellular.get_imsi()cellular.get_imsi()cellular.get_imsi()cellular.get_imsi()cellular→get_imsi()cellular.get_imsi()YCellular get_imsi

Returns an opaque string if a PIN code has been configured in the device to access the SIM card, or an empty string if none has been configured or if the code provided was rejected by the SIM card.

js
function get_imsi()
nodejs
function get_imsi()
cpp
string get_imsi()
m
-(NSString*) imsi
pas
function get_imsi(): string
vb
function get_imsi() As String
cs
string get_imsi()
java
String get_imsi()
py
def get_imsi()
php
function get_imsi()
ecmascript
function get_imsi()
cmd
YCellular target get_imsi

Returns :

a string corresponding to an opaque string if a PIN code has been configured in the device to access the SIM card, or an empty string if none has been configured or if the code provided was rejected by the SIM card

On failure, throws an exception or returns Y_IMSI_INVALID.

cellular→get_linkQuality()
cellular→linkQuality()
cellular.get_linkQuality()cellular.get_linkQuality()cellular→get_linkQuality()[cellular linkQuality]cellular.get_linkQuality()cellular.get_linkQuality()cellular.get_linkQuality()cellular.get_linkQuality()cellular.get_linkQuality()cellular→get_linkQuality()cellular.get_linkQuality()YCellular get_linkQuality

Returns the link quality, expressed in percent.

js
function get_linkQuality()
nodejs
function get_linkQuality()
cpp
int get_linkQuality()
m
-(int) linkQuality
pas
function get_linkQuality(): LongInt
vb
function get_linkQuality() As Integer
cs
int get_linkQuality()
java
int get_linkQuality()
py
def get_linkQuality()
php
function get_linkQuality()
ecmascript
function get_linkQuality()
cmd
YCellular target get_linkQuality

Returns :

an integer corresponding to the link quality, expressed in percent

On failure, throws an exception or returns Y_LINKQUALITY_INVALID.

cellular→get_lockedOperator()
cellular→lockedOperator()
cellular.get_lockedOperator()cellular.get_lockedOperator()cellular→get_lockedOperator()[cellular lockedOperator]cellular.get_lockedOperator()cellular.get_lockedOperator()cellular.get_lockedOperator()cellular.get_lockedOperator()cellular.get_lockedOperator()cellular→get_lockedOperator()cellular.get_lockedOperator()YCellular get_lockedOperator

Returns the name of the only cell operator to use if automatic choice is disabled, or an empty string if the SIM card will automatically choose among available cell operators.

js
function get_lockedOperator()
nodejs
function get_lockedOperator()
cpp
string get_lockedOperator()
m
-(NSString*) lockedOperator
pas
function get_lockedOperator(): string
vb
function get_lockedOperator() As String
cs
string get_lockedOperator()
java
String get_lockedOperator()
py
def get_lockedOperator()
php
function get_lockedOperator()
ecmascript
function get_lockedOperator()
cmd
YCellular target get_lockedOperator

Returns :

a string corresponding to the name of the only cell operator to use if automatic choice is disabled, or an empty string if the SIM card will automatically choose among available cell operators

On failure, throws an exception or returns Y_LOCKEDOPERATOR_INVALID.

cellular→get_logicalName()
cellular→logicalName()
cellular.get_logicalName()cellular.get_logicalName()cellular→get_logicalName()[cellular logicalName]cellular.get_logicalName()cellular.get_logicalName()cellular.get_logicalName()cellular.get_logicalName()cellular.get_logicalName()cellular→get_logicalName()cellular.get_logicalName()YCellular get_logicalName

Returns the logical name of the cellular interface.

js
function get_logicalName()
nodejs
function get_logicalName()
cpp
string get_logicalName()
m
-(NSString*) logicalName
pas
function get_logicalName(): string
vb
function get_logicalName() As String
cs
string get_logicalName()
java
String get_logicalName()
py
def get_logicalName()
php
function get_logicalName()
ecmascript
function get_logicalName()
cmd
YCellular target get_logicalName

Returns :

a string corresponding to the logical name of the cellular interface.

On failure, throws an exception or returns Y_LOGICALNAME_INVALID.

cellular→get_message()
cellular→message()
cellular.get_message()cellular.get_message()cellular→get_message()[cellular message]cellular.get_message()cellular.get_message()cellular.get_message()cellular.get_message()cellular.get_message()cellular→get_message()cellular.get_message()YCellular get_message

Returns the latest status message from the wireless interface.

js
function get_message()
nodejs
function get_message()
cpp
string get_message()
m
-(NSString*) message
pas
function get_message(): string
vb
function get_message() As String
cs
string get_message()
java
String get_message()
py
def get_message()
php
function get_message()
ecmascript
function get_message()
cmd
YCellular target get_message

Returns :

a string corresponding to the latest status message from the wireless interface

On failure, throws an exception or returns Y_MESSAGE_INVALID.

cellular→get_module()
cellular→module()
cellular.get_module()cellular.get_module()cellular→get_module()[cellular module]cellular.get_module()cellular.get_module()cellular.get_module()cellular.get_module()cellular.get_module()cellular→get_module()cellular.get_module()

Gets the YModule object for the device on which the function is located.

js
function get_module()
nodejs
function get_module()
cpp
YModule * get_module()
m
-(YModule*) module
pas
function get_module(): TYModule
vb
function get_module() As YModule
cs
YModule get_module()
java
YModule get_module()
py
def get_module()
php
function get_module()
ecmascript
function get_module()

If the function cannot be located on any module, the returned instance of YModule is not shown as on-line.

Returns :

an instance of YModule

cellular→get_module_async()
cellular→module_async()
cellular.get_module_async()cellular.get_module_async()

Gets the YModule object for the device on which the function is located (asynchronous version).

js
function get_module_async(callback, context)
nodejs
function get_module_async(callback, context)

If the function cannot be located on any module, the returned YModule object does not show as on-line.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking Firefox javascript VM that does not implement context switching during blocking I/O calls. See the documentation section on asynchronous Javascript calls for more details.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the requested YModule object
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

cellular→get_pin()
cellular→pin()
cellular.get_pin()cellular.get_pin()cellular→get_pin()[cellular pin]cellular.get_pin()cellular.get_pin()cellular.get_pin()cellular.get_pin()cellular.get_pin()cellular→get_pin()cellular.get_pin()YCellular get_pin

Returns an opaque string if a PIN code has been configured in the device to access the SIM card, or an empty string if none has been configured or if the code provided was rejected by the SIM card.

js
function get_pin()
nodejs
function get_pin()
cpp
string get_pin()
m
-(NSString*) pin
pas
function get_pin(): string
vb
function get_pin() As String
cs
string get_pin()
java
String get_pin()
py
def get_pin()
php
function get_pin()
ecmascript
function get_pin()
cmd
YCellular target get_pin

Returns :

a string corresponding to an opaque string if a PIN code has been configured in the device to access the SIM card, or an empty string if none has been configured or if the code provided was rejected by the SIM card

On failure, throws an exception or returns Y_PIN_INVALID.

cellular→get_userData()
cellular→userData()
cellular.get_userData()cellular.get_userData()cellular→get_userData()[cellular userData]cellular.get_userData()cellular.get_userData()cellular.get_userData()cellular.get_userData()cellular.get_userData()cellular→get_userData()cellular.get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

js
function get_userData()
nodejs
function get_userData()
cpp
void * get_userData()
m
-(id) userData
pas
function get_userData(): Tobject
vb
function get_userData() As Object
cs
object get_userData()
java
Object get_userData()
py
def get_userData()
php
function get_userData()
ecmascript
function get_userData()

This attribute is never touched directly by the API, and is at disposal of the caller to store a context.

Returns :

the object stored previously by the caller.

cellular→isOnline()cellular.isOnline()cellular.isOnline()cellular→isOnline()[cellular isOnline]cellular.isOnline()cellular.isOnline()cellular.isOnline()cellular.isOnline()cellular.isOnline()cellular→isOnline()cellular.isOnline()

Checks if the cellular interface is currently reachable, without raising any error.

js
function isOnline()
nodejs
function isOnline()
cpp
bool isOnline()
m
-(BOOL) isOnline
pas
function isOnline(): boolean
vb
function isOnline() As Boolean
cs
bool isOnline()
java
boolean isOnline()
py
def isOnline()
php
function isOnline()
ecmascript
function isOnline()

If there is a cached value for the cellular interface in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the cellular interface.

Returns :

true if the cellular interface can be reached, and false otherwise

cellular→isOnline_async()cellular.isOnline_async()cellular.isOnline_async()

Checks if the cellular interface is currently reachable, without raising any error (asynchronous version).

js
function isOnline_async(callback, context)
nodejs
function isOnline_async(callback, context)

If there is a cached value for the cellular interface in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the requested function.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the boolean result
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

cellular→load()cellular.load()cellular.load()cellular→load()[cellular load: ]cellular.load()cellular.load()cellular.load()cellular.load()cellular.load()cellular→load()cellular.load()

Preloads the cellular interface cache with a specified validity duration.

js
function load(msValidity)
nodejs
function load(msValidity)
cpp
YRETCODE load(int msValidity)
m
-(YRETCODE) load: (int) msValidity
pas
function load(msValidity: integer): YRETCODE
vb
function load(ByVal msValidity As Integer) As YRETCODE
cs
YRETCODE load(ulong msValidity)
java
int load(long msValidity)
py
def load(msValidity)
php
function load($msValidity)
ecmascript
function load(msValidity)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network traffic for instance.

Parameters :

msValidityan integer corresponding to the validity attributed to the loaded function parameters, in milliseconds

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→load_async()cellular.load_async()cellular.load_async()

Preloads the cellular interface cache with a specified validity duration (asynchronous version).

js
function load_async(msValidity, callback, context)
nodejs
function load_async(msValidity, callback, context)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network trafic for instance.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

msValidityan integer corresponding to the validity of the loaded function parameters, in milliseconds
callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the error code (or YAPI_SUCCESS)
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

cellular→muteValueCallbacks()cellular.muteValueCallbacks()cellular.muteValueCallbacks()cellular→muteValueCallbacks()[cellular muteValueCallbacks]cellular.muteValueCallbacks()cellular.muteValueCallbacks()cellular.muteValueCallbacks()cellular.muteValueCallbacks()cellular.muteValueCallbacks()cellular→muteValueCallbacks()cellular.muteValueCallbacks()YCellular muteValueCallbacks

Disable the propagation of every new advertised value to the parent hub.

js
function muteValueCallbacks()
nodejs
function muteValueCallbacks()
cpp
int muteValueCallbacks()
m
-(int) muteValueCallbacks
pas
function muteValueCallbacks(): LongInt
vb
function muteValueCallbacks() As Integer
cs
int muteValueCallbacks()
java
int muteValueCallbacks()
py
def muteValueCallbacks()
php
function muteValueCallbacks()
ecmascript
function muteValueCallbacks()
cmd
YCellular target muteValueCallbacks

You can use this function to save bandwidth and CPU on computers with limited resources, or to prevent unwanted invocations of the HTTP callback. Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→nextCellular()cellular.nextCellular()cellular.nextCellular()cellular→nextCellular()[cellular nextCellular]cellular.nextCellular()cellular.nextCellular()cellular.nextCellular()cellular.nextCellular()cellular.nextCellular()cellular→nextCellular()cellular.nextCellular()

Continues the enumeration of cellular interfaces started using yFirstCellular().

js
function nextCellular()
nodejs
function nextCellular()
cpp
YCellular * nextCellular()
m
-(YCellular*) nextCellular
pas
function nextCellular(): TYCellular
vb
function nextCellular() As YCellular
cs
YCellular nextCellular()
java
YCellular nextCellular()
py
def nextCellular()
php
function nextCellular()
ecmascript
function nextCellular()

Returns :

a pointer to a YCellular object, corresponding to a cellular interface currently online, or a null pointer if there are no more cellular interfaces to enumerate.

cellular→quickCellSurvey()cellular.quickCellSurvey()cellular.quickCellSurvey()cellular→quickCellSurvey()[cellular quickCellSurvey]cellular.quickCellSurvey()cellular.quickCellSurvey()cellular.quickCellSurvey()cellular.quickCellSurvey()cellular.quickCellSurvey()cellular→quickCellSurvey()cellular.quickCellSurvey()YCellular quickCellSurvey

Returns a list of nearby cellular antennas, as required for quick geolocation of the device.

js
function quickCellSurvey()
nodejs
function quickCellSurvey()
cpp
vector<YCellRecord> quickCellSurvey()
m
-(NSMutableArray*) quickCellSurvey
pas
function quickCellSurvey(): TYCellRecordArray
vb
function quickCellSurvey() As List
cs
List<YCellRecord> quickCellSurvey()
java
ArrayList<YCellRecord> quickCellSurvey()
py
def quickCellSurvey()
php
function quickCellSurvey()
ecmascript
function quickCellSurvey()
cmd
YCellular target quickCellSurvey

The first cell listed is the serving cell, and the next ones are the neighboor cells reported by the serving cell.

Returns :

a list of YCellRecords.

cellular→registerValueCallback()cellular.registerValueCallback()cellular.registerValueCallback()cellular→registerValueCallback()[cellular registerValueCallback: ]cellular.registerValueCallback()cellular.registerValueCallback()cellular.registerValueCallback()cellular.registerValueCallback()cellular.registerValueCallback()cellular→registerValueCallback()cellular.registerValueCallback()

Registers the callback function that is invoked on every change of advertised value.

js
function registerValueCallback(callback)
nodejs
function registerValueCallback(callback)
cpp
int registerValueCallback(YCellularValueCallback callback)
m
-(int) registerValueCallback: (YCellularValueCallback) callback
pas
function registerValueCallback(callback: TYCellularValueCallback): LongInt
vb
function registerValueCallback() As Integer
cs
int registerValueCallback(ValueCallback callback)
java
int registerValueCallback(UpdateCallback callback)
py
def registerValueCallback(callback)
php
function registerValueCallback($callback)
ecmascript
function registerValueCallback(callback)

The callback is invoked only during the execution of ySleep or yHandleEvents. This provides control over the time when the callback is triggered. For good responsiveness, remember to call one of these two functions periodically. To unregister a callback, pass a null pointer as argument.

Parameters :

callbackthe callback function to call, or a null pointer. The callback function should take two arguments: the function object of which the value has changed, and the character string describing the new advertised value.

cellular→sendPUK()cellular.sendPUK()cellular.sendPUK()cellular→sendPUK()[cellular sendPUK: ]cellular.sendPUK()cellular.sendPUK()cellular.sendPUK()cellular.sendPUK()cellular.sendPUK()cellular→sendPUK()cellular.sendPUK()YCellular sendPUK

Sends a PUK code to unlock the SIM card after three failed PIN code attempts, and setup a new PIN into the SIM card.

js
function sendPUK(puk, newPin)
nodejs
function sendPUK(puk, newPin)
cpp
int sendPUK(string puk, string newPin)
m
-(int) sendPUK: (NSString*) puk : (NSString*) newPin
pas
function sendPUK(puk: string, newPin: string): LongInt
vb
function sendPUK() As Integer
cs
int sendPUK(string puk, string newPin)
java
int sendPUK(String puk, String newPin)
py
def sendPUK(puk, newPin)
php
function sendPUK($puk, $newPin)
ecmascript
function sendPUK(puk, newPin)
cmd
YCellular target sendPUK puk newPin

Only ten consecutives tentatives are permitted: after that, the SIM card will be blocked permanently without any mean of recovery to use it again. Note that after calling this method, you have usually to invoke method set_pin() to tell the YoctoHub which PIN to use in the future.

Parameters :

pukthe SIM PUK code
newPinnew PIN code to configure into the SIM card

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_apn()
cellular→setApn()
cellular.set_apn()cellular.set_apn()cellular→set_apn()[cellular setApn: ]cellular.set_apn()cellular.set_apn()cellular.set_apn()cellular.set_apn()cellular.set_apn()cellular→set_apn()cellular.set_apn()YCellular set_apn

Returns the Access Point Name (APN) to be used, if needed.

js
function set_apn(newval)
nodejs
function set_apn(newval)
cpp
int set_apn(const string& newval)
m
-(int) setApn: (NSString*) newval
pas
function set_apn(newval: string): integer
vb
function set_apn(ByVal newval As String) As Integer
cs
int set_apn(string newval)
java
int set_apn(String newval)
py
def set_apn(newval)
php
function set_apn($newval)
ecmascript
function set_apn(newval)
cmd
YCellular target set_apn newval

When left blank, the APN suggested by the cell operator will be used.

Parameters :

newvala string

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_apnAuth()
cellular→setApnAuth()
cellular.set_apnAuth()cellular.set_apnAuth()cellular→set_apnAuth()[cellular setApnAuth: ]cellular.set_apnAuth()cellular.set_apnAuth()cellular.set_apnAuth()cellular.set_apnAuth()cellular.set_apnAuth()cellular→set_apnAuth()cellular.set_apnAuth()YCellular set_apnAuth

Configure authentication parameters to connect to the APN.

js
function set_apnAuth(username, password)
nodejs
function set_apnAuth(username, password)
cpp
int set_apnAuth(string username, string password)
m
-(int) setApnAuth: (NSString*) username
  : (NSString*) password
pas
function set_apnAuth(username: string, password: string): LongInt
vb
function set_apnAuth() As Integer
cs
int set_apnAuth(string username, string password)
java
int set_apnAuth(String username, String password)
py
def set_apnAuth(username, password)
php
function set_apnAuth($username, $password)
ecmascript
function set_apnAuth(username, password)
cmd
YCellular target set_apnAuth username password

Both PAP and CHAP authentication are supported.

Parameters :

usernameAPN username
passwordAPN password

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_enableData()
cellular→setEnableData()
cellular.set_enableData()cellular.set_enableData()cellular→set_enableData()[cellular setEnableData: ]cellular.set_enableData()cellular.set_enableData()cellular.set_enableData()cellular.set_enableData()cellular.set_enableData()cellular→set_enableData()cellular.set_enableData()YCellular set_enableData

Changes the condition for enabling IP data services (GPRS).

js
function set_enableData(newval)
nodejs
function set_enableData(newval)
cpp
int set_enableData(Y_ENABLEDATA_enum newval)
m
-(int) setEnableData: (Y_ENABLEDATA_enum) newval
pas
function set_enableData(newval: Integer): integer
vb
function set_enableData(ByVal newval As Integer) As Integer
cs
int set_enableData(int newval)
java
int set_enableData(int newval)
py
def set_enableData(newval)
php
function set_enableData($newval)
ecmascript
function set_enableData(newval)
cmd
YCellular target set_enableData newval

The service can be either fully deactivated, or limited to the SIM home network, or enabled for all partner networks (roaming). Caution: enabling data services on roaming networks may cause prohibitive communication costs !

When data services are disabled, SMS are the only mean of communication.

Parameters :

newvala value among Y_ENABLEDATA_HOMENETWORK, Y_ENABLEDATA_ROAMING and Y_ENABLEDATA_NEVER corresponding to the condition for enabling IP data services (GPRS)

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_lockedOperator()
cellular→setLockedOperator()
cellular.set_lockedOperator()cellular.set_lockedOperator()cellular→set_lockedOperator()[cellular setLockedOperator: ]cellular.set_lockedOperator()cellular.set_lockedOperator()cellular.set_lockedOperator()cellular.set_lockedOperator()cellular.set_lockedOperator()cellular→set_lockedOperator()cellular.set_lockedOperator()YCellular set_lockedOperator

Changes the name of the cell operator to be used.

js
function set_lockedOperator(newval)
nodejs
function set_lockedOperator(newval)
cpp
int set_lockedOperator(const string& newval)
m
-(int) setLockedOperator: (NSString*) newval
pas
function set_lockedOperator(newval: string): integer
vb
function set_lockedOperator(ByVal newval As String) As Integer
cs
int set_lockedOperator(string newval)
java
int set_lockedOperator(String newval)
py
def set_lockedOperator(newval)
php
function set_lockedOperator($newval)
ecmascript
function set_lockedOperator(newval)
cmd
YCellular target set_lockedOperator newval

If the name is an empty string, the choice will be made automatically based on the SIM card. Otherwise, the selected operator is the only one that will be used.

Parameters :

newvala string corresponding to the name of the cell operator to be used

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_logicalName()
cellular→setLogicalName()
cellular.set_logicalName()cellular.set_logicalName()cellular→set_logicalName()[cellular setLogicalName: ]cellular.set_logicalName()cellular.set_logicalName()cellular.set_logicalName()cellular.set_logicalName()cellular.set_logicalName()cellular→set_logicalName()cellular.set_logicalName()YCellular set_logicalName

Changes the logical name of the cellular interface.

js
function set_logicalName(newval)
nodejs
function set_logicalName(newval)
cpp
int set_logicalName(const string& newval)
m
-(int) setLogicalName: (NSString*) newval
pas
function set_logicalName(newval: string): integer
vb
function set_logicalName(ByVal newval As String) As Integer
cs
int set_logicalName(string newval)
java
int set_logicalName(String newval)
py
def set_logicalName(newval)
php
function set_logicalName($newval)
ecmascript
function set_logicalName(newval)
cmd
YCellular target set_logicalName newval

You can use yCheckLogicalName() prior to this call to make sure that your parameter is valid. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the logical name of the cellular interface.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_pin()
cellular→setPin()
cellular.set_pin()cellular.set_pin()cellular→set_pin()[cellular setPin: ]cellular.set_pin()cellular.set_pin()cellular.set_pin()cellular.set_pin()cellular.set_pin()cellular→set_pin()cellular.set_pin()YCellular set_pin

Changes the PIN code used by the module to access the SIM card.

js
function set_pin(newval)
nodejs
function set_pin(newval)
cpp
int set_pin(const string& newval)
m
-(int) setPin: (NSString*) newval
pas
function set_pin(newval: string): integer
vb
function set_pin(ByVal newval As String) As Integer
cs
int set_pin(string newval)
java
int set_pin(String newval)
py
def set_pin(newval)
php
function set_pin($newval)
ecmascript
function set_pin(newval)
cmd
YCellular target set_pin newval

This function does not change the code on the SIM card itself, but only changes the parameter used by the device to try to get access to it. If the SIM code does not work immediately on first try, it will be automatically forgotten and the message will be set to "Enter SIM PIN". The method should then be invoked again with right correct PIN code. After three failed attempts in a row, the message is changed to "Enter SIM PUK" and the SIM card PUK code must be provided using method sendPUK.

Remember to call the saveToFlash() method of the module to save the new value in the device flash.

Parameters :

newvala string corresponding to the PIN code used by the module to access the SIM card

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→set_userData()
cellular→setUserData()
cellular.set_userData()cellular.set_userData()cellular→set_userData()[cellular setUserData: ]cellular.set_userData()cellular.set_userData()cellular.set_userData()cellular.set_userData()cellular.set_userData()cellular→set_userData()cellular.set_userData()

Stores a user context provided as argument in the userData attribute of the function.

js
function set_userData(data)
nodejs
function set_userData(data)
cpp
void set_userData(void* data)
m
-(void) setUserData: (id) data
pas
procedure set_userData(data: Tobject)
vb
procedure set_userData(ByVal data As Object)
cs
void set_userData(object data)
java
void set_userData(Object data)
py
def set_userData(data)
php
function set_userData($data)
ecmascript
function set_userData(data)

This attribute is never touched by the API, and is at disposal of the caller to store a context.

Parameters :

dataany kind of object to be stored

cellular→unmuteValueCallbacks()cellular.unmuteValueCallbacks()cellular.unmuteValueCallbacks()cellular→unmuteValueCallbacks()[cellular unmuteValueCallbacks]cellular.unmuteValueCallbacks()cellular.unmuteValueCallbacks()cellular.unmuteValueCallbacks()cellular.unmuteValueCallbacks()cellular.unmuteValueCallbacks()cellular→unmuteValueCallbacks()cellular.unmuteValueCallbacks()YCellular unmuteValueCallbacks

Re-enable the propagation of every new advertised value to the parent hub.

js
function unmuteValueCallbacks()
nodejs
function unmuteValueCallbacks()
cpp
int unmuteValueCallbacks()
m
-(int) unmuteValueCallbacks
pas
function unmuteValueCallbacks(): LongInt
vb
function unmuteValueCallbacks() As Integer
cs
int unmuteValueCallbacks()
java
int unmuteValueCallbacks()
py
def unmuteValueCallbacks()
php
function unmuteValueCallbacks()
ecmascript
function unmuteValueCallbacks()
cmd
YCellular target unmuteValueCallbacks

This function reverts the effect of a previous call to muteValueCallbacks(). Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

cellular→wait_async()cellular.wait_async()cellular.wait_async()cellular.wait_async()

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

js
function wait_async(callback, context)
nodejs
function wait_async(callback, context)
ecmascript
function wait_async(callback, context, null)

The callback function can therefore freely issue synchronous or asynchronous commands, without risking to block the Javascript VM.

Parameters :

callbackcallback function that is invoked when all pending commands on the module are completed. The callback function receives two arguments: the caller-specific context object and the receiving function object.
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing.

8.3. Network function interface

YNetwork objects provide access to TCP/IP parameters of Yoctopuce modules that include a built-in network interface.

In order to use the functions described here, you should include:

js
<script type='text/javascript' src='yocto_network.js'></script>
nodejs
var yoctolib = require('yoctolib');
var YNetwork = yoctolib.YNetwork;
cpp
#include "yocto_network.h"
m
#import "yocto_network.h"
pas
uses yocto_network;
vb
yocto_network.vb
cs
yocto_network.cs
java
import com.yoctopuce.YoctoAPI.YNetwork;
py
from yocto_network import *
php
require_once('yocto_network.php');
ecmascript
import { YNetwork } from 'yoctolib-es'
Global functions
yFindNetwork(func)

Retrieves a network interface for a given identifier.

yFindNetworkInContext(yctx, func)

Retrieves a network interface for a given identifier in a YAPI context.

yFirstNetwork()

Starts the enumeration of network interfaces currently accessible.

yFirstNetworkInContext(yctx)

Starts the enumeration of network interfaces currently accessible.

YNetwork methods
network→callbackLogin(username, password)

Connects to the notification callback and saves the credentials required to log into it.

network→clearCache()

Invalidates the cache.

network→describe()

Returns a short text that describes unambiguously the instance of the network interface in the form TYPE(NAME)=SERIAL.FUNCTIONID.

network→get_adminPassword()

Returns a hash string if a password has been set for user "admin", or an empty string otherwise.

network→get_advertisedValue()

Returns the current value of the network interface (no more than 6 characters).

network→get_callbackCredentials()

Returns a hashed version of the notification callback credentials if set, or an empty string otherwise.

network→get_callbackEncoding()

Returns the encoding standard to use for representing notification values.

network→get_callbackMaxDelay()

Returns the maximum waiting time between two callback notifications, in seconds.

network→get_callbackMethod()

Returns the HTTP method used to notify callbacks for significant state changes.

network→get_callbackMinDelay()

Returns the minimum waiting time between two callback notifications, in seconds.

network→get_callbackUrl()

Returns the callback URL to notify of significant state changes.

network→get_defaultPage()

Returns the HTML page to serve for the URL "/"" of the hub.

network→get_discoverable()

Returns the activation state of the multicast announce protocols to allow easy discovery of the module in the network neighborhood (uPnP/Bonjour protocol).

network→get_errorMessage()

Returns the error message of the latest error with the network interface.

network→get_errorType()

Returns the numerical error code of the latest error with the network interface.

network→get_friendlyName()

Returns a global identifier of the network interface in the format MODULE_NAME.FUNCTION_NAME.

network→get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

network→get_functionId()

Returns the hardware identifier of the network interface, without reference to the module.

network→get_hardwareId()

Returns the unique hardware identifier of the network interface in the form SERIAL.FUNCTIONID.

network→get_httpPort()

Returns the HTML page to serve for the URL "/"" of the hub.

network→get_ipAddress()

Returns the IP address currently in use by the device.

network→get_logicalName()

Returns the logical name of the network interface.

network→get_macAddress()

Returns the MAC address of the network interface.

network→get_module()

Gets the YModule object for the device on which the function is located.

network→get_module_async(callback, context)

Gets the YModule object for the device on which the function is located (asynchronous version).

network→get_ntpServer()

Returns the IP address of the NTP server to be used by the device.

network→get_poeCurrent()

Returns the current consumed by the module from Power-over-Ethernet (PoE), in milli-amps.

network→get_primaryDNS()

Returns the IP address of the primary name server to be used by the module.

network→get_readiness()

Returns the current established working mode of the network interface.

network→get_router()

Returns the IP address of the router on the device subnet (default gateway).

network→get_secondaryDNS()

Returns the IP address of the secondary name server to be used by the module.

network→get_subnetMask()

Returns the subnet mask currently used by the device.

network→get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

network→get_userPassword()

Returns a hash string if a password has been set for "user" user, or an empty string otherwise.

network→get_wwwWatchdogDelay()

Returns the allowed downtime of the WWW link (in seconds) before triggering an automated reboot to try to recover Internet connectivity.

network→isOnline()

Checks if the network interface is currently reachable, without raising any error.

network→isOnline_async(callback, context)

Checks if the network interface is currently reachable, without raising any error (asynchronous version).

network→load(msValidity)

Preloads the network interface cache with a specified validity duration.

network→load_async(msValidity, callback, context)

Preloads the network interface cache with a specified validity duration (asynchronous version).

network→muteValueCallbacks()

Disable the propagation of every new advertised value to the parent hub.

network→nextNetwork()

Continues the enumeration of network interfaces started using yFirstNetwork().

network→ping(host)

Pings str_host to test the network connectivity.

network→registerValueCallback(callback)

Registers the callback function that is invoked on every change of advertised value.

network→set_adminPassword(newval)

Changes the password for the "admin" user.

network→set_callbackCredentials(newval)

Changes the credentials required to connect to the callback address.

network→set_callbackEncoding(newval)

Changes the encoding standard to use for representing notification values.

network→set_callbackMaxDelay(newval)

Changes the maximum waiting time between two callback notifications, in seconds.

network→set_callbackMethod(newval)

Changes the HTTP method used to notify callbacks for significant state changes.

network→set_callbackMinDelay(newval)

Changes the minimum waiting time between two callback notifications, in seconds.

network→set_callbackUrl(newval)

Changes the callback URL to notify significant state changes.

network→set_defaultPage(newval)

Changes the default HTML page returned by the hub.

network→set_discoverable(newval)

Changes the activation state of the multicast announce protocols to allow easy discovery of the module in the network neighborhood (uPnP/Bonjour protocol).

network→set_httpPort(newval)

Changes the default HTML page returned by the hub.

network→set_logicalName(newval)

Changes the logical name of the network interface.

network→set_ntpServer(newval)

Changes the IP address of the NTP server to be used by the module.

network→set_primaryDNS(newval)

Changes the IP address of the primary name server to be used by the module.

network→set_secondaryDNS(newval)

Changes the IP address of the secondary name server to be used by the module.

network→set_userData(data)

Stores a user context provided as argument in the userData attribute of the function.

network→set_userPassword(newval)

Changes the password for the "user" user.

network→set_wwwWatchdogDelay(newval)

Changes the allowed downtime of the WWW link (in seconds) before triggering an automated reboot to try to recover Internet connectivity.

network→unmuteValueCallbacks()

Re-enable the propagation of every new advertised value to the parent hub.

network→useDHCP(fallbackIpAddr, fallbackSubnetMaskLen, fallbackRouter)

Changes the configuration of the network interface to enable the use of an IP address received from a DHCP server.

network→useStaticIP(ipAddress, subnetMaskLen, router)

Changes the configuration of the network interface to use a static IP address.

network→wait_async(callback, context)

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

YNetwork.FindNetwork()
yFindNetwork()
yFindNetwork()YNetwork.FindNetwork()yFindNetwork()[YNetwork FindNetwork: ]yFindNetwork()yFindNetwork()YNetwork.FindNetwork()YNetwork.FindNetwork()YNetwork.FindNetwork()yFindNetwork()YNetwork.FindNetwork()

Retrieves a network interface for a given identifier.

js
function yFindNetwork(func)
nodejs
function FindNetwork(func)
cpp
YNetwork* yFindNetwork(const string& func)
m
+(YNetwork*) FindNetwork:(NSString*) func
pas
function yFindNetwork(func: string): TYNetwork
vb
function yFindNetwork(ByVal func As String) As YNetwork
cs
YNetwork FindNetwork(string func)
java
YNetwork FindNetwork(String func)
py
def FindNetwork(func)
php
function yFindNetwork($func)
ecmascript
function FindNetwork(func)

The identifier can be specified using several formats:

This function does not require that the network interface is online at the time it is invoked. The returned object is nevertheless valid. Use the method YNetwork.isOnline() to test if the network interface is indeed online at a given time. In case of ambiguity when looking for a network interface by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

funca string that uniquely characterizes the network interface

Returns :

a YNetwork object allowing you to drive the network interface.

YNetwork.FindNetworkInContext()
yFindNetworkInContext()
YNetwork.FindNetworkInContext()YNetwork.FindNetworkInContext()

Retrieves a network interface for a given identifier in a YAPI context.

java
YNetwork FindNetworkInContext(YAPIContext yctx, String func)
ecmascript
function FindNetworkInContext(yctx, func)

The identifier can be specified using several formats:

This function does not require that the network interface is online at the time it is invoked. The returned object is nevertheless valid. Use the method YNetwork.isOnline() to test if the network interface is indeed online at a given time. In case of ambiguity when looking for a network interface by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

yctxa YAPI context
funca string that uniquely characterizes the network interface

Returns :

a YNetwork object allowing you to drive the network interface.

YNetwork.FirstNetwork()
yFirstNetwork()
yFirstNetwork()YNetwork.FirstNetwork()yFirstNetwork()[YNetwork FirstNetwork]yFirstNetwork()yFirstNetwork()YNetwork.FirstNetwork()YNetwork.FirstNetwork()YNetwork.FirstNetwork()yFirstNetwork()YNetwork.FirstNetwork()

Starts the enumeration of network interfaces currently accessible.

js
function yFirstNetwork()
nodejs
function FirstNetwork()
cpp
YNetwork* yFirstNetwork()
m
+(YNetwork*) FirstNetwork
pas
function yFirstNetwork(): TYNetwork
vb
function yFirstNetwork() As YNetwork
cs
YNetwork FirstNetwork()
java
YNetwork FirstNetwork()
py
def FirstNetwork()
php
function yFirstNetwork()
ecmascript
function FirstNetwork()

Use the method YNetwork.nextNetwork() to iterate on next network interfaces.

Returns :

a pointer to a YNetwork object, corresponding to the first network interface currently online, or a null pointer if there are none.

YNetwork.FirstNetworkInContext()
yFirstNetworkInContext()
YNetwork.FirstNetworkInContext()YNetwork.FirstNetworkInContext()

Starts the enumeration of network interfaces currently accessible.

java
YNetwork FirstNetworkInContext(YAPIContext yctx)
ecmascript
function FirstNetworkInContext(yctx)

Use the method YNetwork.nextNetwork() to iterate on next network interfaces.

Parameters :

yctxa YAPI context.

Returns :

a pointer to a YNetwork object, corresponding to the first network interface currently online, or a null pointer if there are none.

network→callbackLogin()network.callbackLogin()network.callbackLogin()network→callbackLogin()[network callbackLogin: ]network.callbackLogin()network.callbackLogin()network.callbackLogin()network.callbackLogin()network.callbackLogin()network→callbackLogin()network.callbackLogin()YNetwork callbackLogin

Connects to the notification callback and saves the credentials required to log into it.

js
function callbackLogin(username, password)
nodejs
function callbackLogin(username, password)
cpp
int callbackLogin(string username, string password)
m
-(int) callbackLogin: (NSString*) username : (NSString*) password
pas
function callbackLogin(username: string, password: string): integer
vb
function callbackLogin(ByVal username As String,
  ByVal password As String) As Integer
cs
int callbackLogin(string username, string password)
java
int callbackLogin(String username, String password)
py
def callbackLogin(username, password)
php
function callbackLogin($username, $password)
ecmascript
function callbackLogin(username, password)
cmd
YNetwork target callbackLogin username password

The password is not stored into the module, only a hashed copy of the credentials are saved. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

usernameusername required to log to the callback
passwordpassword required to log to the callback

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→clearCache()network.clearCache()network.clearCache()network→clearCache()[network clearCache]network.clearCache()network.clearCache()network.clearCache()network.clearCache()network.clearCache()network→clearCache()network.clearCache()

Invalidates the cache.

js
function clearCache()
nodejs
function clearCache()
cpp
void clearCache()
m
-(void) clearCache
pas
procedure clearCache()
vb
procedure clearCache()
cs
void clearCache()
java
void clearCache()
py
def clearCache()
php
function clearCache()
ecmascript
function clearCache()

Invalidates the cache of the network interface attributes. Forces the next call to get_xxx() or loadxxx() to use values that come from the device.

network→describe()network.describe()network.describe()network→describe()[network describe]network.describe()network.describe()network.describe()network.describe()network.describe()network→describe()network.describe()

Returns a short text that describes unambiguously the instance of the network interface in the form TYPE(NAME)=SERIAL.FUNCTIONID.

js
function describe()
nodejs
function describe()
cpp
string describe()
m
-(NSString*) describe
pas
function describe(): string
vb
function describe() As String
cs
string describe()
java
String describe()
py
def describe()
php
function describe()
ecmascript
function describe()

More precisely, TYPE is the type of the function, NAME it the name used for the first access to the function, SERIAL is the serial number of the module if the module is connected or "unresolved", and FUNCTIONID is the hardware identifier of the function if the module is connected. For example, this method returns Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1 if the module is already connected or Relay(BadCustomeName.relay1)=unresolved if the module has not yet been connected. This method does not trigger any USB or TCP transaction and can therefore be used in a debugger.

Returns :

a string that describes the network interface (ex: Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1)

network→get_adminPassword()
network→adminPassword()
network.get_adminPassword()network.get_adminPassword()network→get_adminPassword()[network adminPassword]network.get_adminPassword()network.get_adminPassword()network.get_adminPassword()network.get_adminPassword()network.get_adminPassword()network→get_adminPassword()network.get_adminPassword()YNetwork get_adminPassword

Returns a hash string if a password has been set for user "admin", or an empty string otherwise.

js
function get_adminPassword()
nodejs
function get_adminPassword()
cpp
string get_adminPassword()
m
-(NSString*) adminPassword
pas
function get_adminPassword(): string
vb
function get_adminPassword() As String
cs
string get_adminPassword()
java
String get_adminPassword()
py
def get_adminPassword()
php
function get_adminPassword()
ecmascript
function get_adminPassword()
cmd
YNetwork target get_adminPassword

Returns :

a string corresponding to a hash string if a password has been set for user "admin", or an empty string otherwise

On failure, throws an exception or returns Y_ADMINPASSWORD_INVALID.

network→get_advertisedValue()
network→advertisedValue()
network.get_advertisedValue()network.get_advertisedValue()network→get_advertisedValue()[network advertisedValue]network.get_advertisedValue()network.get_advertisedValue()network.get_advertisedValue()network.get_advertisedValue()network.get_advertisedValue()network→get_advertisedValue()network.get_advertisedValue()YNetwork get_advertisedValue

Returns the current value of the network interface (no more than 6 characters).

js
function get_advertisedValue()
nodejs
function get_advertisedValue()
cpp
string get_advertisedValue()
m
-(NSString*) advertisedValue
pas
function get_advertisedValue(): string
vb
function get_advertisedValue() As String
cs
string get_advertisedValue()
java
String get_advertisedValue()
py
def get_advertisedValue()
php
function get_advertisedValue()
ecmascript
function get_advertisedValue()
cmd
YNetwork target get_advertisedValue

Returns :

a string corresponding to the current value of the network interface (no more than 6 characters).

On failure, throws an exception or returns Y_ADVERTISEDVALUE_INVALID.

network→get_callbackCredentials()
network→callbackCredentials()
network.get_callbackCredentials()network.get_callbackCredentials()network→get_callbackCredentials()[network callbackCredentials]network.get_callbackCredentials()network.get_callbackCredentials()network.get_callbackCredentials()network.get_callbackCredentials()network.get_callbackCredentials()network→get_callbackCredentials()network.get_callbackCredentials()YNetwork get_callbackCredentials

Returns a hashed version of the notification callback credentials if set, or an empty string otherwise.

js
function get_callbackCredentials()
nodejs
function get_callbackCredentials()
cpp
string get_callbackCredentials()
m
-(NSString*) callbackCredentials
pas
function get_callbackCredentials(): string
vb
function get_callbackCredentials() As String
cs
string get_callbackCredentials()
java
String get_callbackCredentials()
py
def get_callbackCredentials()
php
function get_callbackCredentials()
ecmascript
function get_callbackCredentials()
cmd
YNetwork target get_callbackCredentials

Returns :

a string corresponding to a hashed version of the notification callback credentials if set, or an empty string otherwise

On failure, throws an exception or returns Y_CALLBACKCREDENTIALS_INVALID.

network→get_callbackEncoding()
network→callbackEncoding()
network.get_callbackEncoding()network.get_callbackEncoding()network→get_callbackEncoding()[network callbackEncoding]network.get_callbackEncoding()network.get_callbackEncoding()network.get_callbackEncoding()network.get_callbackEncoding()network.get_callbackEncoding()network→get_callbackEncoding()network.get_callbackEncoding()YNetwork get_callbackEncoding

Returns the encoding standard to use for representing notification values.

js
function get_callbackEncoding()
nodejs
function get_callbackEncoding()
cpp
Y_CALLBACKENCODING_enum get_callbackEncoding()
m
-(Y_CALLBACKENCODING_enum) callbackEncoding
pas
function get_callbackEncoding(): Integer
vb
function get_callbackEncoding() As Integer
cs
int get_callbackEncoding()
java
int get_callbackEncoding()
py
def get_callbackEncoding()
php
function get_callbackEncoding()
ecmascript
function get_callbackEncoding()
cmd
YNetwork target get_callbackEncoding

Returns :

a value among Y_CALLBACKENCODING_FORM, Y_CALLBACKENCODING_JSON, Y_CALLBACKENCODING_JSON_ARRAY, Y_CALLBACKENCODING_CSV, Y_CALLBACKENCODING_YOCTO_API, Y_CALLBACKENCODING_JSON_NUM, Y_CALLBACKENCODING_EMONCMS, Y_CALLBACKENCODING_AZURE and Y_CALLBACKENCODING_INFLUXDB corresponding to the encoding standard to use for representing notification values

On failure, throws an exception or returns Y_CALLBACKENCODING_INVALID.

network→get_callbackMaxDelay()
network→callbackMaxDelay()
network.get_callbackMaxDelay()network.get_callbackMaxDelay()network→get_callbackMaxDelay()[network callbackMaxDelay]network.get_callbackMaxDelay()network.get_callbackMaxDelay()network.get_callbackMaxDelay()network.get_callbackMaxDelay()network.get_callbackMaxDelay()network→get_callbackMaxDelay()network.get_callbackMaxDelay()YNetwork get_callbackMaxDelay

Returns the maximum waiting time between two callback notifications, in seconds.

js
function get_callbackMaxDelay()
nodejs
function get_callbackMaxDelay()
cpp
int get_callbackMaxDelay()
m
-(int) callbackMaxDelay
pas
function get_callbackMaxDelay(): LongInt
vb
function get_callbackMaxDelay() As Integer
cs
int get_callbackMaxDelay()
java
int get_callbackMaxDelay()
py
def get_callbackMaxDelay()
php
function get_callbackMaxDelay()
ecmascript
function get_callbackMaxDelay()
cmd
YNetwork target get_callbackMaxDelay

Returns :

an integer corresponding to the maximum waiting time between two callback notifications, in seconds

On failure, throws an exception or returns Y_CALLBACKMAXDELAY_INVALID.

network→get_callbackMethod()
network→callbackMethod()
network.get_callbackMethod()network.get_callbackMethod()network→get_callbackMethod()[network callbackMethod]network.get_callbackMethod()network.get_callbackMethod()network.get_callbackMethod()network.get_callbackMethod()network.get_callbackMethod()network→get_callbackMethod()network.get_callbackMethod()YNetwork get_callbackMethod

Returns the HTTP method used to notify callbacks for significant state changes.

js
function get_callbackMethod()
nodejs
function get_callbackMethod()
cpp
Y_CALLBACKMETHOD_enum get_callbackMethod()
m
-(Y_CALLBACKMETHOD_enum) callbackMethod
pas
function get_callbackMethod(): Integer
vb
function get_callbackMethod() As Integer
cs
int get_callbackMethod()
java
int get_callbackMethod()
py
def get_callbackMethod()
php
function get_callbackMethod()
ecmascript
function get_callbackMethod()
cmd
YNetwork target get_callbackMethod

Returns :

a value among Y_CALLBACKMETHOD_POST, Y_CALLBACKMETHOD_GET and Y_CALLBACKMETHOD_PUT corresponding to the HTTP method used to notify callbacks for significant state changes

On failure, throws an exception or returns Y_CALLBACKMETHOD_INVALID.

network→get_callbackMinDelay()
network→callbackMinDelay()
network.get_callbackMinDelay()network.get_callbackMinDelay()network→get_callbackMinDelay()[network callbackMinDelay]network.get_callbackMinDelay()network.get_callbackMinDelay()network.get_callbackMinDelay()network.get_callbackMinDelay()network.get_callbackMinDelay()network→get_callbackMinDelay()network.get_callbackMinDelay()YNetwork get_callbackMinDelay

Returns the minimum waiting time between two callback notifications, in seconds.

js
function get_callbackMinDelay()
nodejs
function get_callbackMinDelay()
cpp
int get_callbackMinDelay()
m
-(int) callbackMinDelay
pas
function get_callbackMinDelay(): LongInt
vb
function get_callbackMinDelay() As Integer
cs
int get_callbackMinDelay()
java
int get_callbackMinDelay()
py
def get_callbackMinDelay()
php
function get_callbackMinDelay()
ecmascript
function get_callbackMinDelay()
cmd
YNetwork target get_callbackMinDelay

Returns :

an integer corresponding to the minimum waiting time between two callback notifications, in seconds

On failure, throws an exception or returns Y_CALLBACKMINDELAY_INVALID.

network→get_callbackUrl()
network→callbackUrl()
network.get_callbackUrl()network.get_callbackUrl()network→get_callbackUrl()[network callbackUrl]network.get_callbackUrl()network.get_callbackUrl()network.get_callbackUrl()network.get_callbackUrl()network.get_callbackUrl()network→get_callbackUrl()network.get_callbackUrl()YNetwork get_callbackUrl

Returns the callback URL to notify of significant state changes.

js
function get_callbackUrl()
nodejs
function get_callbackUrl()
cpp
string get_callbackUrl()
m
-(NSString*) callbackUrl
pas
function get_callbackUrl(): string
vb
function get_callbackUrl() As String
cs
string get_callbackUrl()
java
String get_callbackUrl()
py
def get_callbackUrl()
php
function get_callbackUrl()
ecmascript
function get_callbackUrl()
cmd
YNetwork target get_callbackUrl

Returns :

a string corresponding to the callback URL to notify of significant state changes

On failure, throws an exception or returns Y_CALLBACKURL_INVALID.

network→get_defaultPage()
network→defaultPage()
network.get_defaultPage()network.get_defaultPage()network→get_defaultPage()[network defaultPage]network.get_defaultPage()network.get_defaultPage()network.get_defaultPage()network.get_defaultPage()network.get_defaultPage()network→get_defaultPage()network.get_defaultPage()YNetwork get_defaultPage

Returns the HTML page to serve for the URL "/"" of the hub.

js
function get_defaultPage()
nodejs
function get_defaultPage()
cpp
string get_defaultPage()
m
-(NSString*) defaultPage
pas
function get_defaultPage(): string
vb
function get_defaultPage() As String
cs
string get_defaultPage()
java
String get_defaultPage()
py
def get_defaultPage()
php
function get_defaultPage()
ecmascript
function get_defaultPage()
cmd
YNetwork target get_defaultPage

Returns :

a string corresponding to the HTML page to serve for the URL "/"" of the hub

On failure, throws an exception or returns Y_DEFAULTPAGE_INVALID.

network→get_discoverable()
network→discoverable()
network.get_discoverable()network.get_discoverable()network→get_discoverable()[network discoverable]network.get_discoverable()network.get_discoverable()network.get_discoverable()network.get_discoverable()network.get_discoverable()network→get_discoverable()network.get_discoverable()YNetwork get_discoverable

Returns the activation state of the multicast announce protocols to allow easy discovery of the module in the network neighborhood (uPnP/Bonjour protocol).

js
function get_discoverable()
nodejs
function get_discoverable()
cpp
Y_DISCOVERABLE_enum get_discoverable()
m
-(Y_DISCOVERABLE_enum) discoverable
pas
function get_discoverable(): Integer
vb
function get_discoverable() As Integer
cs
int get_discoverable()
java
int get_discoverable()
py
def get_discoverable()
php
function get_discoverable()
ecmascript
function get_discoverable()
cmd
YNetwork target get_discoverable

Returns :

either Y_DISCOVERABLE_FALSE or Y_DISCOVERABLE_TRUE, according to the activation state of the multicast announce protocols to allow easy discovery of the module in the network neighborhood (uPnP/Bonjour protocol)

On failure, throws an exception or returns Y_DISCOVERABLE_INVALID.

network→get_errorMessage()
network→errorMessage()
network.get_errorMessage()network.get_errorMessage()network→get_errorMessage()[network errorMessage]network.get_errorMessage()network.get_errorMessage()network.get_errorMessage()network.get_errorMessage()network.get_errorMessage()network→get_errorMessage()network.get_errorMessage()

Returns the error message of the latest error with the network interface.

js
function get_errorMessage()
nodejs
function get_errorMessage()
cpp
string get_errorMessage()
m
-(NSString*) errorMessage
pas
function get_errorMessage(): string
vb
function get_errorMessage() As String
cs
string get_errorMessage()
java
String get_errorMessage()
py
def get_errorMessage()
php
function get_errorMessage()
ecmascript
function get_errorMessage()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a string corresponding to the latest error message that occured while using the network interface object

network→get_errorType()
network→errorType()
network.get_errorType()network.get_errorType()network→get_errorType()network.get_errorType()network.get_errorType()network.get_errorType()network.get_errorType()network.get_errorType()network→get_errorType()network.get_errorType()

Returns the numerical error code of the latest error with the network interface.

js
function get_errorType()
nodejs
function get_errorType()
cpp
YRETCODE get_errorType()
pas
function get_errorType(): YRETCODE
vb
function get_errorType() As YRETCODE
cs
YRETCODE get_errorType()
java
int get_errorType()
py
def get_errorType()
php
function get_errorType()
ecmascript
function get_errorType()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a number corresponding to the code of the latest error that occurred while using the network interface object

network→get_friendlyName()
network→friendlyName()
network.get_friendlyName()network.get_friendlyName()network→get_friendlyName()[network friendlyName]network.get_friendlyName()network.get_friendlyName()network.get_friendlyName()network→get_friendlyName()network.get_friendlyName()

Returns a global identifier of the network interface in the format MODULE_NAME.FUNCTION_NAME.

js
function get_friendlyName()
nodejs
function get_friendlyName()
cpp
string get_friendlyName()
m
-(NSString*) friendlyName
cs
string get_friendlyName()
java
String get_friendlyName()
py
def get_friendlyName()
php
function get_friendlyName()
ecmascript
function get_friendlyName()

The returned string uses the logical names of the module and of the network interface if they are defined, otherwise the serial number of the module and the hardware identifier of the network interface (for example: MyCustomName.relay1)

Returns :

a string that uniquely identifies the network interface using logical names (ex: MyCustomName.relay1)

On failure, throws an exception or returns Y_FRIENDLYNAME_INVALID.

network→get_functionDescriptor()
network→functionDescriptor()
network.get_functionDescriptor()network.get_functionDescriptor()network→get_functionDescriptor()[network functionDescriptor]network.get_functionDescriptor()network.get_functionDescriptor()network.get_functionDescriptor()network.get_functionDescriptor()network.get_functionDescriptor()network→get_functionDescriptor()network.get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

js
function get_functionDescriptor()
nodejs
function get_functionDescriptor()
cpp
YFUN_DESCR get_functionDescriptor()
m
-(YFUN_DESCR) functionDescriptor
pas
function get_functionDescriptor(): YFUN_DESCR
vb
function get_functionDescriptor() As YFUN_DESCR
cs
YFUN_DESCR get_functionDescriptor()
java
String get_functionDescriptor()
py
def get_functionDescriptor()
php
function get_functionDescriptor()
ecmascript
function get_functionDescriptor()

This identifier can be used to test if two instances of YFunction reference the same physical function on the same physical device.

Returns :

an identifier of type YFUN_DESCR.

If the function has never been contacted, the returned value is Y_FUNCTIONDESCRIPTOR_INVALID.

network→get_functionId()
network→functionId()
network.get_functionId()network.get_functionId()network→get_functionId()[network functionId]network.get_functionId()network.get_functionId()network.get_functionId()network.get_functionId()network→get_functionId()network.get_functionId()

Returns the hardware identifier of the network interface, without reference to the module.

js
function get_functionId()
nodejs
function get_functionId()
cpp
string get_functionId()
m
-(NSString*) functionId
vb
function get_functionId() As String
cs
string get_functionId()
java
String get_functionId()
py
def get_functionId()
php
function get_functionId()
ecmascript
function get_functionId()

For example relay1

Returns :

a string that identifies the network interface (ex: relay1)

On failure, throws an exception or returns Y_FUNCTIONID_INVALID.

network→get_hardwareId()
network→hardwareId()
network.get_hardwareId()network.get_hardwareId()network→get_hardwareId()[network hardwareId]network.get_hardwareId()network.get_hardwareId()network.get_hardwareId()network.get_hardwareId()network→get_hardwareId()network.get_hardwareId()

Returns the unique hardware identifier of the network interface in the form SERIAL.FUNCTIONID.

js
function get_hardwareId()
nodejs
function get_hardwareId()
cpp
string get_hardwareId()
m
-(NSString*) hardwareId
vb
function get_hardwareId() As String
cs
string get_hardwareId()
java
String get_hardwareId()
py
def get_hardwareId()
php
function get_hardwareId()
ecmascript
function get_hardwareId()

The unique hardware identifier is composed of the device serial number and of the hardware identifier of the network interface (for example RELAYLO1-123456.relay1).

Returns :

a string that uniquely identifies the network interface (ex: RELAYLO1-123456.relay1)

On failure, throws an exception or returns Y_HARDWAREID_INVALID.

network→get_httpPort()
network→httpPort()
network.get_httpPort()network.get_httpPort()network→get_httpPort()[network httpPort]network.get_httpPort()network.get_httpPort()network.get_httpPort()network.get_httpPort()network.get_httpPort()network→get_httpPort()network.get_httpPort()YNetwork get_httpPort

Returns the HTML page to serve for the URL "/"" of the hub.

js
function get_httpPort()
nodejs
function get_httpPort()
cpp
int get_httpPort()
m
-(int) httpPort
pas
function get_httpPort(): LongInt
vb
function get_httpPort() As Integer
cs
int get_httpPort()
java
int get_httpPort()
py
def get_httpPort()
php
function get_httpPort()
ecmascript
function get_httpPort()
cmd
YNetwork target get_httpPort

Returns :

an integer corresponding to the HTML page to serve for the URL "/"" of the hub

On failure, throws an exception or returns Y_HTTPPORT_INVALID.

network→get_ipAddress()
network→ipAddress()
network.get_ipAddress()network.get_ipAddress()network→get_ipAddress()[network ipAddress]network.get_ipAddress()network.get_ipAddress()network.get_ipAddress()network.get_ipAddress()network.get_ipAddress()network→get_ipAddress()network.get_ipAddress()YNetwork get_ipAddress

Returns the IP address currently in use by the device.

js
function get_ipAddress()
nodejs
function get_ipAddress()
cpp
string get_ipAddress()
m
-(NSString*) ipAddress
pas
function get_ipAddress(): string
vb
function get_ipAddress() As String
cs
string get_ipAddress()
java
String get_ipAddress()
py
def get_ipAddress()
php
function get_ipAddress()
ecmascript
function get_ipAddress()
cmd
YNetwork target get_ipAddress

The address may have been configured statically, or provided by a DHCP server.

Returns :

a string corresponding to the IP address currently in use by the device

On failure, throws an exception or returns Y_IPADDRESS_INVALID.

network→get_logicalName()
network→logicalName()
network.get_logicalName()network.get_logicalName()network→get_logicalName()[network logicalName]network.get_logicalName()network.get_logicalName()network.get_logicalName()network.get_logicalName()network.get_logicalName()network→get_logicalName()network.get_logicalName()YNetwork get_logicalName

Returns the logical name of the network interface.

js
function get_logicalName()
nodejs
function get_logicalName()
cpp
string get_logicalName()
m
-(NSString*) logicalName
pas
function get_logicalName(): string
vb
function get_logicalName() As String
cs
string get_logicalName()
java
String get_logicalName()
py
def get_logicalName()
php
function get_logicalName()
ecmascript
function get_logicalName()
cmd
YNetwork target get_logicalName

Returns :

a string corresponding to the logical name of the network interface.

On failure, throws an exception or returns Y_LOGICALNAME_INVALID.

network→get_macAddress()
network→macAddress()
network.get_macAddress()network.get_macAddress()network→get_macAddress()[network macAddress]network.get_macAddress()network.get_macAddress()network.get_macAddress()network.get_macAddress()network.get_macAddress()network→get_macAddress()network.get_macAddress()YNetwork get_macAddress

Returns the MAC address of the network interface.

js
function get_macAddress()
nodejs
function get_macAddress()
cpp
string get_macAddress()
m
-(NSString*) macAddress
pas
function get_macAddress(): string
vb
function get_macAddress() As String
cs
string get_macAddress()
java
String get_macAddress()
py
def get_macAddress()
php
function get_macAddress()
ecmascript
function get_macAddress()
cmd
YNetwork target get_macAddress

The MAC address is also available on a sticker on the module, in both numeric and barcode forms.

Returns :

a string corresponding to the MAC address of the network interface

On failure, throws an exception or returns Y_MACADDRESS_INVALID.

network→get_module()
network→module()
network.get_module()network.get_module()network→get_module()[network module]network.get_module()network.get_module()network.get_module()network.get_module()network.get_module()network→get_module()network.get_module()

Gets the YModule object for the device on which the function is located.

js
function get_module()
nodejs
function get_module()
cpp
YModule * get_module()
m
-(YModule*) module
pas
function get_module(): TYModule
vb
function get_module() As YModule
cs
YModule get_module()
java
YModule get_module()
py
def get_module()
php
function get_module()
ecmascript
function get_module()

If the function cannot be located on any module, the returned instance of YModule is not shown as on-line.

Returns :

an instance of YModule

network→get_module_async()
network→module_async()
network.get_module_async()network.get_module_async()

Gets the YModule object for the device on which the function is located (asynchronous version).

js
function get_module_async(callback, context)
nodejs
function get_module_async(callback, context)

If the function cannot be located on any module, the returned YModule object does not show as on-line.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking Firefox javascript VM that does not implement context switching during blocking I/O calls. See the documentation section on asynchronous Javascript calls for more details.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the requested YModule object
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

network→get_ntpServer()
network→ntpServer()
network.get_ntpServer()network.get_ntpServer()network→get_ntpServer()[network ntpServer]network.get_ntpServer()network.get_ntpServer()network.get_ntpServer()network.get_ntpServer()network.get_ntpServer()network→get_ntpServer()network.get_ntpServer()YNetwork get_ntpServer

Returns the IP address of the NTP server to be used by the device.

js
function get_ntpServer()
nodejs
function get_ntpServer()
cpp
string get_ntpServer()
m
-(NSString*) ntpServer
pas
function get_ntpServer(): string
vb
function get_ntpServer() As String
cs
string get_ntpServer()
java
String get_ntpServer()
py
def get_ntpServer()
php
function get_ntpServer()
ecmascript
function get_ntpServer()
cmd
YNetwork target get_ntpServer

Returns :

a string corresponding to the IP address of the NTP server to be used by the device

On failure, throws an exception or returns Y_NTPSERVER_INVALID.

network→get_poeCurrent()
network→poeCurrent()
network.get_poeCurrent()network.get_poeCurrent()network→get_poeCurrent()[network poeCurrent]network.get_poeCurrent()network.get_poeCurrent()network.get_poeCurrent()network.get_poeCurrent()network.get_poeCurrent()network→get_poeCurrent()network.get_poeCurrent()YNetwork get_poeCurrent

Returns the current consumed by the module from Power-over-Ethernet (PoE), in milli-amps.

js
function get_poeCurrent()
nodejs
function get_poeCurrent()
cpp
int get_poeCurrent()
m
-(int) poeCurrent
pas
function get_poeCurrent(): LongInt
vb
function get_poeCurrent() As Integer
cs
int get_poeCurrent()
java
int get_poeCurrent()
py
def get_poeCurrent()
php
function get_poeCurrent()
ecmascript
function get_poeCurrent()
cmd
YNetwork target get_poeCurrent

The current consumption is measured after converting PoE source to 5 Volt, and should never exceed 1800 mA.

Returns :

an integer corresponding to the current consumed by the module from Power-over-Ethernet (PoE), in milli-amps

On failure, throws an exception or returns Y_POECURRENT_INVALID.

network→get_primaryDNS()
network→primaryDNS()
network.get_primaryDNS()network.get_primaryDNS()network→get_primaryDNS()[network primaryDNS]network.get_primaryDNS()network.get_primaryDNS()network.get_primaryDNS()network.get_primaryDNS()network.get_primaryDNS()network→get_primaryDNS()network.get_primaryDNS()YNetwork get_primaryDNS

Returns the IP address of the primary name server to be used by the module.

js
function get_primaryDNS()
nodejs
function get_primaryDNS()
cpp
string get_primaryDNS()
m
-(NSString*) primaryDNS
pas
function get_primaryDNS(): string
vb
function get_primaryDNS() As String
cs
string get_primaryDNS()
java
String get_primaryDNS()
py
def get_primaryDNS()
php
function get_primaryDNS()
ecmascript
function get_primaryDNS()
cmd
YNetwork target get_primaryDNS

Returns :

a string corresponding to the IP address of the primary name server to be used by the module

On failure, throws an exception or returns Y_PRIMARYDNS_INVALID.

network→get_readiness()
network→readiness()
network.get_readiness()network.get_readiness()network→get_readiness()[network readiness]network.get_readiness()network.get_readiness()network.get_readiness()network.get_readiness()network.get_readiness()network→get_readiness()network.get_readiness()YNetwork get_readiness

Returns the current established working mode of the network interface.

js
function get_readiness()
nodejs
function get_readiness()
cpp
Y_READINESS_enum get_readiness()
m
-(Y_READINESS_enum) readiness
pas
function get_readiness(): Integer
vb
function get_readiness() As Integer
cs
int get_readiness()
java
int get_readiness()
py
def get_readiness()
php
function get_readiness()
ecmascript
function get_readiness()
cmd
YNetwork target get_readiness

Level zero (DOWN_0) means that no hardware link has been detected. Either there is no signal on the network cable, or the selected wireless access point cannot be detected. Level 1 (LIVE_1) is reached when the network is detected, but is not yet connected. For a wireless network, this shows that the requested SSID is present. Level 2 (LINK_2) is reached when the hardware connection is established. For a wired network connection, level 2 means that the cable is attached at both ends. For a connection to a wireless access point, it shows that the security parameters are properly configured. For an ad-hoc wireless connection, it means that there is at least one other device connected on the ad-hoc network. Level 3 (DHCP_3) is reached when an IP address has been obtained using DHCP. Level 4 (DNS_4) is reached when the DNS server is reachable on the network. Level 5 (WWW_5) is reached when global connectivity is demonstrated by properly loading the current time from an NTP server.

Returns :

a value among Y_READINESS_DOWN, Y_READINESS_EXISTS, Y_READINESS_LINKED, Y_READINESS_LAN_OK and Y_READINESS_WWW_OK corresponding to the current established working mode of the network interface

On failure, throws an exception or returns Y_READINESS_INVALID.

network→get_router()
network→router()
network.get_router()network.get_router()network→get_router()[network router]network.get_router()network.get_router()network.get_router()network.get_router()network.get_router()network→get_router()network.get_router()YNetwork get_router

Returns the IP address of the router on the device subnet (default gateway).

js
function get_router()
nodejs
function get_router()
cpp
string get_router()
m
-(NSString*) router
pas
function get_router(): string
vb
function get_router() As String
cs
string get_router()
java
String get_router()
py
def get_router()
php
function get_router()
ecmascript
function get_router()
cmd
YNetwork target get_router

Returns :

a string corresponding to the IP address of the router on the device subnet (default gateway)

On failure, throws an exception or returns Y_ROUTER_INVALID.

network→get_secondaryDNS()
network→secondaryDNS()
network.get_secondaryDNS()network.get_secondaryDNS()network→get_secondaryDNS()[network secondaryDNS]network.get_secondaryDNS()network.get_secondaryDNS()network.get_secondaryDNS()network.get_secondaryDNS()network.get_secondaryDNS()network→get_secondaryDNS()network.get_secondaryDNS()YNetwork get_secondaryDNS

Returns the IP address of the secondary name server to be used by the module.

js
function get_secondaryDNS()
nodejs
function get_secondaryDNS()
cpp
string get_secondaryDNS()
m
-(NSString*) secondaryDNS
pas
function get_secondaryDNS(): string
vb
function get_secondaryDNS() As String
cs
string get_secondaryDNS()
java
String get_secondaryDNS()
py
def get_secondaryDNS()
php
function get_secondaryDNS()
ecmascript
function get_secondaryDNS()
cmd
YNetwork target get_secondaryDNS

Returns :

a string corresponding to the IP address of the secondary name server to be used by the module

On failure, throws an exception or returns Y_SECONDARYDNS_INVALID.

network→get_subnetMask()
network→subnetMask()
network.get_subnetMask()network.get_subnetMask()network→get_subnetMask()[network subnetMask]network.get_subnetMask()network.get_subnetMask()network.get_subnetMask()network.get_subnetMask()network.get_subnetMask()network→get_subnetMask()network.get_subnetMask()YNetwork get_subnetMask

Returns the subnet mask currently used by the device.

js
function get_subnetMask()
nodejs
function get_subnetMask()
cpp
string get_subnetMask()
m
-(NSString*) subnetMask
pas
function get_subnetMask(): string
vb
function get_subnetMask() As String
cs
string get_subnetMask()
java
String get_subnetMask()
py
def get_subnetMask()
php
function get_subnetMask()
ecmascript
function get_subnetMask()
cmd
YNetwork target get_subnetMask

Returns :

a string corresponding to the subnet mask currently used by the device

On failure, throws an exception or returns Y_SUBNETMASK_INVALID.

network→get_userData()
network→userData()
network.get_userData()network.get_userData()network→get_userData()[network userData]network.get_userData()network.get_userData()network.get_userData()network.get_userData()network.get_userData()network→get_userData()network.get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

js
function get_userData()
nodejs
function get_userData()
cpp
void * get_userData()
m
-(id) userData
pas
function get_userData(): Tobject
vb
function get_userData() As Object
cs
object get_userData()
java
Object get_userData()
py
def get_userData()
php
function get_userData()
ecmascript
function get_userData()

This attribute is never touched directly by the API, and is at disposal of the caller to store a context.

Returns :

the object stored previously by the caller.

network→get_userPassword()
network→userPassword()
network.get_userPassword()network.get_userPassword()network→get_userPassword()[network userPassword]network.get_userPassword()network.get_userPassword()network.get_userPassword()network.get_userPassword()network.get_userPassword()network→get_userPassword()network.get_userPassword()YNetwork get_userPassword

Returns a hash string if a password has been set for "user" user, or an empty string otherwise.

js
function get_userPassword()
nodejs
function get_userPassword()
cpp
string get_userPassword()
m
-(NSString*) userPassword
pas
function get_userPassword(): string
vb
function get_userPassword() As String
cs
string get_userPassword()
java
String get_userPassword()
py
def get_userPassword()
php
function get_userPassword()
ecmascript
function get_userPassword()
cmd
YNetwork target get_userPassword

Returns :

a string corresponding to a hash string if a password has been set for "user" user, or an empty string otherwise

On failure, throws an exception or returns Y_USERPASSWORD_INVALID.

network→get_wwwWatchdogDelay()
network→wwwWatchdogDelay()
network.get_wwwWatchdogDelay()network.get_wwwWatchdogDelay()network→get_wwwWatchdogDelay()[network wwwWatchdogDelay]network.get_wwwWatchdogDelay()network.get_wwwWatchdogDelay()network.get_wwwWatchdogDelay()network.get_wwwWatchdogDelay()network.get_wwwWatchdogDelay()network→get_wwwWatchdogDelay()network.get_wwwWatchdogDelay()YNetwork get_wwwWatchdogDelay

Returns the allowed downtime of the WWW link (in seconds) before triggering an automated reboot to try to recover Internet connectivity.

js
function get_wwwWatchdogDelay()
nodejs
function get_wwwWatchdogDelay()
cpp
int get_wwwWatchdogDelay()
m
-(int) wwwWatchdogDelay
pas
function get_wwwWatchdogDelay(): LongInt
vb
function get_wwwWatchdogDelay() As Integer
cs
int get_wwwWatchdogDelay()
java
int get_wwwWatchdogDelay()
py
def get_wwwWatchdogDelay()
php
function get_wwwWatchdogDelay()
ecmascript
function get_wwwWatchdogDelay()
cmd
YNetwork target get_wwwWatchdogDelay

A zero value disables automated reboot in case of Internet connectivity loss.

Returns :

an integer corresponding to the allowed downtime of the WWW link (in seconds) before triggering an automated reboot to try to recover Internet connectivity

On failure, throws an exception or returns Y_WWWWATCHDOGDELAY_INVALID.

network→isOnline()network.isOnline()network.isOnline()network→isOnline()[network isOnline]network.isOnline()network.isOnline()network.isOnline()network.isOnline()network.isOnline()network→isOnline()network.isOnline()

Checks if the network interface is currently reachable, without raising any error.

js
function isOnline()
nodejs
function isOnline()
cpp
bool isOnline()
m
-(BOOL) isOnline
pas
function isOnline(): boolean
vb
function isOnline() As Boolean
cs
bool isOnline()
java
boolean isOnline()
py
def isOnline()
php
function isOnline()
ecmascript
function isOnline()

If there is a cached value for the network interface in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the network interface.

Returns :

true if the network interface can be reached, and false otherwise

network→isOnline_async()network.isOnline_async()network.isOnline_async()

Checks if the network interface is currently reachable, without raising any error (asynchronous version).

js
function isOnline_async(callback, context)
nodejs
function isOnline_async(callback, context)

If there is a cached value for the network interface in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the requested function.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the boolean result
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

network→load()network.load()network.load()network→load()[network load: ]network.load()network.load()network.load()network.load()network.load()network→load()network.load()

Preloads the network interface cache with a specified validity duration.

js
function load(msValidity)
nodejs
function load(msValidity)
cpp
YRETCODE load(int msValidity)
m
-(YRETCODE) load: (int) msValidity
pas
function load(msValidity: integer): YRETCODE
vb
function load(ByVal msValidity As Integer) As YRETCODE
cs
YRETCODE load(ulong msValidity)
java
int load(long msValidity)
py
def load(msValidity)
php
function load($msValidity)
ecmascript
function load(msValidity)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network traffic for instance.

Parameters :

msValidityan integer corresponding to the validity attributed to the loaded function parameters, in milliseconds

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

network→load_async()network.load_async()network.load_async()

Preloads the network interface cache with a specified validity duration (asynchronous version).

js
function load_async(msValidity, callback, context)
nodejs
function load_async(msValidity, callback, context)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network trafic for instance.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

msValidityan integer corresponding to the validity of the loaded function parameters, in milliseconds
callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the error code (or YAPI_SUCCESS)
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

network→muteValueCallbacks()network.muteValueCallbacks()network.muteValueCallbacks()network→muteValueCallbacks()[network muteValueCallbacks]network.muteValueCallbacks()network.muteValueCallbacks()network.muteValueCallbacks()network.muteValueCallbacks()network.muteValueCallbacks()network→muteValueCallbacks()network.muteValueCallbacks()YNetwork muteValueCallbacks

Disable the propagation of every new advertised value to the parent hub.

js
function muteValueCallbacks()
nodejs
function muteValueCallbacks()
cpp
int muteValueCallbacks()
m
-(int) muteValueCallbacks
pas
function muteValueCallbacks(): LongInt
vb
function muteValueCallbacks() As Integer
cs
int muteValueCallbacks()
java
int muteValueCallbacks()
py
def muteValueCallbacks()
php
function muteValueCallbacks()
ecmascript
function muteValueCallbacks()
cmd
YNetwork target muteValueCallbacks

You can use this function to save bandwidth and CPU on computers with limited resources, or to prevent unwanted invocations of the HTTP callback. Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

network→nextNetwork()network.nextNetwork()network.nextNetwork()network→nextNetwork()[network nextNetwork]network.nextNetwork()network.nextNetwork()network.nextNetwork()network.nextNetwork()network.nextNetwork()network→nextNetwork()network.nextNetwork()

Continues the enumeration of network interfaces started using yFirstNetwork().

js
function nextNetwork()
nodejs
function nextNetwork()
cpp
YNetwork * nextNetwork()
m
-(YNetwork*) nextNetwork
pas
function nextNetwork(): TYNetwork
vb
function nextNetwork() As YNetwork
cs
YNetwork nextNetwork()
java
YNetwork nextNetwork()
py
def nextNetwork()
php
function nextNetwork()
ecmascript
function nextNetwork()

Returns :

a pointer to a YNetwork object, corresponding to a network interface currently online, or a null pointer if there are no more network interfaces to enumerate.

network→ping()network.ping()network.ping()network→ping()[network ping: ]network.ping()network.ping()network.ping()network.ping()network.ping()network→ping()network.ping()YNetwork ping

Pings str_host to test the network connectivity.

js
function ping(host)
nodejs
function ping(host)
cpp
string ping(string host)
m
-(NSString*) ping: (NSString*) host
pas
function ping(host: string): string
vb
function ping() As String
cs
string ping(string host)
java
String ping(String host)
py
def ping(host)
php
function ping($host)
ecmascript
function ping(host)
cmd
YNetwork target ping host

Sends four ICMP ECHO_REQUEST requests from the module to the target str_host. This method returns a string with the result of the 4 ICMP ECHO_REQUEST requests.

Parameters :

hostthe hostname or the IP address of the target

Returns :

a string with the result of the ping.

network→registerValueCallback()network.registerValueCallback()network.registerValueCallback()network→registerValueCallback()[network registerValueCallback: ]network.registerValueCallback()network.registerValueCallback()network.registerValueCallback()network.registerValueCallback()network.registerValueCallback()network→registerValueCallback()network.registerValueCallback()

Registers the callback function that is invoked on every change of advertised value.

js
function registerValueCallback(callback)
nodejs
function registerValueCallback(callback)
cpp
int registerValueCallback(YNetworkValueCallback callback)
m
-(int) registerValueCallback: (YNetworkValueCallback) callback
pas
function registerValueCallback(callback: TYNetworkValueCallback): LongInt
vb
function registerValueCallback() As Integer
cs
int registerValueCallback(ValueCallback callback)
java
int registerValueCallback(UpdateCallback callback)
py
def registerValueCallback(callback)
php
function registerValueCallback($callback)
ecmascript
function registerValueCallback(callback)

The callback is invoked only during the execution of ySleep or yHandleEvents. This provides control over the time when the callback is triggered. For good responsiveness, remember to call one of these two functions periodically. To unregister a callback, pass a null pointer as argument.

Parameters :

callbackthe callback function to call, or a null pointer. The callback function should take two arguments: the function object of which the value has changed, and the character string describing the new advertised value.

network→set_adminPassword()
network→setAdminPassword()
network.set_adminPassword()network.set_adminPassword()network→set_adminPassword()[network setAdminPassword: ]network.set_adminPassword()network.set_adminPassword()network.set_adminPassword()network.set_adminPassword()network.set_adminPassword()network→set_adminPassword()network.set_adminPassword()YNetwork set_adminPassword

Changes the password for the "admin" user.

js
function set_adminPassword(newval)
nodejs
function set_adminPassword(newval)
cpp
int set_adminPassword(const string& newval)
m
-(int) setAdminPassword: (NSString*) newval
pas
function set_adminPassword(newval: string): integer
vb
function set_adminPassword(ByVal newval As String) As Integer
cs
int set_adminPassword(string newval)
java
int set_adminPassword(String newval)
py
def set_adminPassword(newval)
php
function set_adminPassword($newval)
ecmascript
function set_adminPassword(newval)
cmd
YNetwork target set_adminPassword newval

This password becomes instantly required to perform any change of the module state. If the specified value is an empty string, a password is not required anymore. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the password for the "admin" user

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_callbackCredentials()
network→setCallbackCredentials()
network.set_callbackCredentials()network.set_callbackCredentials()network→set_callbackCredentials()[network setCallbackCredentials: ]network.set_callbackCredentials()network.set_callbackCredentials()network.set_callbackCredentials()network.set_callbackCredentials()network.set_callbackCredentials()network→set_callbackCredentials()network.set_callbackCredentials()YNetwork set_callbackCredentials

Changes the credentials required to connect to the callback address.

js
function set_callbackCredentials(newval)
nodejs
function set_callbackCredentials(newval)
cpp
int set_callbackCredentials(const string& newval)
m
-(int) setCallbackCredentials: (NSString*) newval
pas
function set_callbackCredentials(newval: string): integer
vb
function set_callbackCredentials(ByVal newval As String) As Integer
cs
int set_callbackCredentials(string newval)
java
int set_callbackCredentials(String newval)
py
def set_callbackCredentials(newval)
php
function set_callbackCredentials($newval)
ecmascript
function set_callbackCredentials(newval)
cmd
YNetwork target set_callbackCredentials newval

The credentials must be provided as returned by function get_callbackCredentials, in the form username:hash. The method used to compute the hash varies according to the the authentication scheme implemented by the callback, For Basic authentication, the hash is the MD5 of the string username:password. For Digest authentication, the hash is the MD5 of the string username:realm:password. For a simpler way to configure callback credentials, use function callbackLogin instead. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the credentials required to connect to the callback address

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_callbackEncoding()
network→setCallbackEncoding()
network.set_callbackEncoding()network.set_callbackEncoding()network→set_callbackEncoding()[network setCallbackEncoding: ]network.set_callbackEncoding()network.set_callbackEncoding()network.set_callbackEncoding()network.set_callbackEncoding()network.set_callbackEncoding()network→set_callbackEncoding()network.set_callbackEncoding()YNetwork set_callbackEncoding

Changes the encoding standard to use for representing notification values.

js
function set_callbackEncoding(newval)
nodejs
function set_callbackEncoding(newval)
cpp
int set_callbackEncoding(Y_CALLBACKENCODING_enum newval)
m
-(int) setCallbackEncoding: (Y_CALLBACKENCODING_enum) newval
pas
function set_callbackEncoding(newval: Integer): integer
vb
function set_callbackEncoding(ByVal newval As Integer) As Integer
cs
int set_callbackEncoding(int newval)
java
int set_callbackEncoding(int newval)
py
def set_callbackEncoding(newval)
php
function set_callbackEncoding($newval)
ecmascript
function set_callbackEncoding(newval)
cmd
YNetwork target set_callbackEncoding newval

Parameters :

newvala value among Y_CALLBACKENCODING_FORM, Y_CALLBACKENCODING_JSON, Y_CALLBACKENCODING_JSON_ARRAY, Y_CALLBACKENCODING_CSV, Y_CALLBACKENCODING_YOCTO_API, Y_CALLBACKENCODING_JSON_NUM, Y_CALLBACKENCODING_EMONCMS, Y_CALLBACKENCODING_AZURE and Y_CALLBACKENCODING_INFLUXDB corresponding to the encoding standard to use for representing notification values

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_callbackMaxDelay()
network→setCallbackMaxDelay()
network.set_callbackMaxDelay()network.set_callbackMaxDelay()network→set_callbackMaxDelay()[network setCallbackMaxDelay: ]network.set_callbackMaxDelay()network.set_callbackMaxDelay()network.set_callbackMaxDelay()network.set_callbackMaxDelay()network.set_callbackMaxDelay()network→set_callbackMaxDelay()network.set_callbackMaxDelay()YNetwork set_callbackMaxDelay

Changes the maximum waiting time between two callback notifications, in seconds.

js
function set_callbackMaxDelay(newval)
nodejs
function set_callbackMaxDelay(newval)
cpp
int set_callbackMaxDelay(int newval)
m
-(int) setCallbackMaxDelay: (int) newval
pas
function set_callbackMaxDelay(newval: LongInt): integer
vb
function set_callbackMaxDelay(ByVal newval As Integer) As Integer
cs
int set_callbackMaxDelay(int newval)
java
int set_callbackMaxDelay(int newval)
py
def set_callbackMaxDelay(newval)
php
function set_callbackMaxDelay($newval)
ecmascript
function set_callbackMaxDelay(newval)
cmd
YNetwork target set_callbackMaxDelay newval

Parameters :

newvalan integer corresponding to the maximum waiting time between two callback notifications, in seconds

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_callbackMethod()
network→setCallbackMethod()
network.set_callbackMethod()network.set_callbackMethod()network→set_callbackMethod()[network setCallbackMethod: ]network.set_callbackMethod()network.set_callbackMethod()network.set_callbackMethod()network.set_callbackMethod()network.set_callbackMethod()network→set_callbackMethod()network.set_callbackMethod()YNetwork set_callbackMethod

Changes the HTTP method used to notify callbacks for significant state changes.

js
function set_callbackMethod(newval)
nodejs
function set_callbackMethod(newval)
cpp
int set_callbackMethod(Y_CALLBACKMETHOD_enum newval)
m
-(int) setCallbackMethod: (Y_CALLBACKMETHOD_enum) newval
pas
function set_callbackMethod(newval: Integer): integer
vb
function set_callbackMethod(ByVal newval As Integer) As Integer
cs
int set_callbackMethod(int newval)
java
int set_callbackMethod(int newval)
py
def set_callbackMethod(newval)
php
function set_callbackMethod($newval)
ecmascript
function set_callbackMethod(newval)
cmd
YNetwork target set_callbackMethod newval

Parameters :

newvala value among Y_CALLBACKMETHOD_POST, Y_CALLBACKMETHOD_GET and Y_CALLBACKMETHOD_PUT corresponding to the HTTP method used to notify callbacks for significant state changes

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_callbackMinDelay()
network→setCallbackMinDelay()
network.set_callbackMinDelay()network.set_callbackMinDelay()network→set_callbackMinDelay()[network setCallbackMinDelay: ]network.set_callbackMinDelay()network.set_callbackMinDelay()network.set_callbackMinDelay()network.set_callbackMinDelay()network.set_callbackMinDelay()network→set_callbackMinDelay()network.set_callbackMinDelay()YNetwork set_callbackMinDelay

Changes the minimum waiting time between two callback notifications, in seconds.

js
function set_callbackMinDelay(newval)
nodejs
function set_callbackMinDelay(newval)
cpp
int set_callbackMinDelay(int newval)
m
-(int) setCallbackMinDelay: (int) newval
pas
function set_callbackMinDelay(newval: LongInt): integer
vb
function set_callbackMinDelay(ByVal newval As Integer) As Integer
cs
int set_callbackMinDelay(int newval)
java
int set_callbackMinDelay(int newval)
py
def set_callbackMinDelay(newval)
php
function set_callbackMinDelay($newval)
ecmascript
function set_callbackMinDelay(newval)
cmd
YNetwork target set_callbackMinDelay newval

Parameters :

newvalan integer corresponding to the minimum waiting time between two callback notifications, in seconds

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_callbackUrl()
network→setCallbackUrl()
network.set_callbackUrl()network.set_callbackUrl()network→set_callbackUrl()[network setCallbackUrl: ]network.set_callbackUrl()network.set_callbackUrl()network.set_callbackUrl()network.set_callbackUrl()network.set_callbackUrl()network→set_callbackUrl()network.set_callbackUrl()YNetwork set_callbackUrl

Changes the callback URL to notify significant state changes.

js
function set_callbackUrl(newval)
nodejs
function set_callbackUrl(newval)
cpp
int set_callbackUrl(const string& newval)
m
-(int) setCallbackUrl: (NSString*) newval
pas
function set_callbackUrl(newval: string): integer
vb
function set_callbackUrl(ByVal newval As String) As Integer
cs
int set_callbackUrl(string newval)
java
int set_callbackUrl(String newval)
py
def set_callbackUrl(newval)
php
function set_callbackUrl($newval)
ecmascript
function set_callbackUrl(newval)
cmd
YNetwork target set_callbackUrl newval

Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the callback URL to notify significant state changes

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_defaultPage()
network→setDefaultPage()
network.set_defaultPage()network.set_defaultPage()network→set_defaultPage()[network setDefaultPage: ]network.set_defaultPage()network.set_defaultPage()network.set_defaultPage()network.set_defaultPage()network.set_defaultPage()network→set_defaultPage()network.set_defaultPage()YNetwork set_defaultPage

Changes the default HTML page returned by the hub.

js
function set_defaultPage(newval)
nodejs
function set_defaultPage(newval)
cpp
int set_defaultPage(const string& newval)
m
-(int) setDefaultPage: (NSString*) newval
pas
function set_defaultPage(newval: string): integer
vb
function set_defaultPage(ByVal newval As String) As Integer
cs
int set_defaultPage(string newval)
java
int set_defaultPage(String newval)
py
def set_defaultPage(newval)
php
function set_defaultPage($newval)
ecmascript
function set_defaultPage(newval)
cmd
YNetwork target set_defaultPage newval

If not value are set the hub return "index.html" which is the web interface of the hub. It is possible de change this page for file that has been uploaded on the hub.

Parameters :

newvala string corresponding to the default HTML page returned by the hub

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_discoverable()
network→setDiscoverable()
network.set_discoverable()network.set_discoverable()network→set_discoverable()[network setDiscoverable: ]network.set_discoverable()network.set_discoverable()network.set_discoverable()network.set_discoverable()network.set_discoverable()network→set_discoverable()network.set_discoverable()YNetwork set_discoverable

Changes the activation state of the multicast announce protocols to allow easy discovery of the module in the network neighborhood (uPnP/Bonjour protocol).

js
function set_discoverable(newval)
nodejs
function set_discoverable(newval)
cpp
int set_discoverable(Y_DISCOVERABLE_enum newval)
m
-(int) setDiscoverable: (Y_DISCOVERABLE_enum) newval
pas
function set_discoverable(newval: Integer): integer
vb
function set_discoverable(ByVal newval As Integer) As Integer
cs
int set_discoverable(int newval)
java
int set_discoverable(int newval)
py
def set_discoverable(newval)
php
function set_discoverable($newval)
ecmascript
function set_discoverable(newval)
cmd
YNetwork target set_discoverable newval

Parameters :

newvaleither Y_DISCOVERABLE_FALSE or Y_DISCOVERABLE_TRUE, according to the activation state of the multicast announce protocols to allow easy discovery of the module in the network neighborhood (uPnP/Bonjour protocol)

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_httpPort()
network→setHttpPort()
network.set_httpPort()network.set_httpPort()network→set_httpPort()[network setHttpPort: ]network.set_httpPort()network.set_httpPort()network.set_httpPort()network.set_httpPort()network.set_httpPort()network→set_httpPort()network.set_httpPort()YNetwork set_httpPort

Changes the default HTML page returned by the hub.

js
function set_httpPort(newval)
nodejs
function set_httpPort(newval)
cpp
int set_httpPort(int newval)
m
-(int) setHttpPort: (int) newval
pas
function set_httpPort(newval: LongInt): integer
vb
function set_httpPort(ByVal newval As Integer) As Integer
cs
int set_httpPort(int newval)
java
int set_httpPort(int newval)
py
def set_httpPort(newval)
php
function set_httpPort($newval)
ecmascript
function set_httpPort(newval)
cmd
YNetwork target set_httpPort newval

If not value are set the hub return "index.html" which is the web interface of the hub. It is possible de change this page for file that has been uploaded on the hub.

Parameters :

newvalan integer corresponding to the default HTML page returned by the hub

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_logicalName()
network→setLogicalName()
network.set_logicalName()network.set_logicalName()network→set_logicalName()[network setLogicalName: ]network.set_logicalName()network.set_logicalName()network.set_logicalName()network.set_logicalName()network.set_logicalName()network→set_logicalName()network.set_logicalName()YNetwork set_logicalName

Changes the logical name of the network interface.

js
function set_logicalName(newval)
nodejs
function set_logicalName(newval)
cpp
int set_logicalName(const string& newval)
m
-(int) setLogicalName: (NSString*) newval
pas
function set_logicalName(newval: string): integer
vb
function set_logicalName(ByVal newval As String) As Integer
cs
int set_logicalName(string newval)
java
int set_logicalName(String newval)
py
def set_logicalName(newval)
php
function set_logicalName($newval)
ecmascript
function set_logicalName(newval)
cmd
YNetwork target set_logicalName newval

You can use yCheckLogicalName() prior to this call to make sure that your parameter is valid. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the logical name of the network interface.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_ntpServer()
network→setNtpServer()
network.set_ntpServer()network.set_ntpServer()network→set_ntpServer()[network setNtpServer: ]network.set_ntpServer()network.set_ntpServer()network.set_ntpServer()network.set_ntpServer()network.set_ntpServer()network→set_ntpServer()network.set_ntpServer()YNetwork set_ntpServer

Changes the IP address of the NTP server to be used by the module.

js
function set_ntpServer(newval)
nodejs
function set_ntpServer(newval)
cpp
int set_ntpServer(const string& newval)
m
-(int) setNtpServer: (NSString*) newval
pas
function set_ntpServer(newval: string): integer
vb
function set_ntpServer(ByVal newval As String) As Integer
cs
int set_ntpServer(string newval)
java
int set_ntpServer(String newval)
py
def set_ntpServer(newval)
php
function set_ntpServer($newval)
ecmascript
function set_ntpServer(newval)
cmd
YNetwork target set_ntpServer newval

Remember to call the saveToFlash() method and then to reboot the module to apply this setting.

Parameters :

newvala string corresponding to the IP address of the NTP server to be used by the module

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_primaryDNS()
network→setPrimaryDNS()
network.set_primaryDNS()network.set_primaryDNS()network→set_primaryDNS()[network setPrimaryDNS: ]network.set_primaryDNS()network.set_primaryDNS()network.set_primaryDNS()network.set_primaryDNS()network.set_primaryDNS()network→set_primaryDNS()network.set_primaryDNS()YNetwork set_primaryDNS

Changes the IP address of the primary name server to be used by the module.

js
function set_primaryDNS(newval)
nodejs
function set_primaryDNS(newval)
cpp
int set_primaryDNS(const string& newval)
m
-(int) setPrimaryDNS: (NSString*) newval
pas
function set_primaryDNS(newval: string): integer
vb
function set_primaryDNS(ByVal newval As String) As Integer
cs
int set_primaryDNS(string newval)
java
int set_primaryDNS(String newval)
py
def set_primaryDNS(newval)
php
function set_primaryDNS($newval)
ecmascript
function set_primaryDNS(newval)
cmd
YNetwork target set_primaryDNS newval

When using DHCP, if a value is specified, it overrides the value received from the DHCP server. Remember to call the saveToFlash() method and then to reboot the module to apply this setting.

Parameters :

newvala string corresponding to the IP address of the primary name server to be used by the module

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_secondaryDNS()
network→setSecondaryDNS()
network.set_secondaryDNS()network.set_secondaryDNS()network→set_secondaryDNS()[network setSecondaryDNS: ]network.set_secondaryDNS()network.set_secondaryDNS()network.set_secondaryDNS()network.set_secondaryDNS()network.set_secondaryDNS()network→set_secondaryDNS()network.set_secondaryDNS()YNetwork set_secondaryDNS

Changes the IP address of the secondary name server to be used by the module.

js
function set_secondaryDNS(newval)
nodejs
function set_secondaryDNS(newval)
cpp
int set_secondaryDNS(const string& newval)
m
-(int) setSecondaryDNS: (NSString*) newval
pas
function set_secondaryDNS(newval: string): integer
vb
function set_secondaryDNS(ByVal newval As String) As Integer
cs
int set_secondaryDNS(string newval)
java
int set_secondaryDNS(String newval)
py
def set_secondaryDNS(newval)
php
function set_secondaryDNS($newval)
ecmascript
function set_secondaryDNS(newval)
cmd
YNetwork target set_secondaryDNS newval

When using DHCP, if a value is specified, it overrides the value received from the DHCP server. Remember to call the saveToFlash() method and then to reboot the module to apply this setting.

Parameters :

newvala string corresponding to the IP address of the secondary name server to be used by the module

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_userData()
network→setUserData()
network.set_userData()network.set_userData()network→set_userData()[network setUserData: ]network.set_userData()network.set_userData()network.set_userData()network.set_userData()network.set_userData()network→set_userData()network.set_userData()

Stores a user context provided as argument in the userData attribute of the function.

js
function set_userData(data)
nodejs
function set_userData(data)
cpp
void set_userData(void* data)
m
-(void) setUserData: (id) data
pas
procedure set_userData(data: Tobject)
vb
procedure set_userData(ByVal data As Object)
cs
void set_userData(object data)
java
void set_userData(Object data)
py
def set_userData(data)
php
function set_userData($data)
ecmascript
function set_userData(data)

This attribute is never touched by the API, and is at disposal of the caller to store a context.

Parameters :

dataany kind of object to be stored

network→set_userPassword()
network→setUserPassword()
network.set_userPassword()network.set_userPassword()network→set_userPassword()[network setUserPassword: ]network.set_userPassword()network.set_userPassword()network.set_userPassword()network.set_userPassword()network.set_userPassword()network→set_userPassword()network.set_userPassword()YNetwork set_userPassword

Changes the password for the "user" user.

js
function set_userPassword(newval)
nodejs
function set_userPassword(newval)
cpp
int set_userPassword(const string& newval)
m
-(int) setUserPassword: (NSString*) newval
pas
function set_userPassword(newval: string): integer
vb
function set_userPassword(ByVal newval As String) As Integer
cs
int set_userPassword(string newval)
java
int set_userPassword(String newval)
py
def set_userPassword(newval)
php
function set_userPassword($newval)
ecmascript
function set_userPassword(newval)
cmd
YNetwork target set_userPassword newval

This password becomes instantly required to perform any use of the module. If the specified value is an empty string, a password is not required anymore. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the password for the "user" user

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→set_wwwWatchdogDelay()
network→setWwwWatchdogDelay()
network.set_wwwWatchdogDelay()network.set_wwwWatchdogDelay()network→set_wwwWatchdogDelay()[network setWwwWatchdogDelay: ]network.set_wwwWatchdogDelay()network.set_wwwWatchdogDelay()network.set_wwwWatchdogDelay()network.set_wwwWatchdogDelay()network.set_wwwWatchdogDelay()network→set_wwwWatchdogDelay()network.set_wwwWatchdogDelay()YNetwork set_wwwWatchdogDelay

Changes the allowed downtime of the WWW link (in seconds) before triggering an automated reboot to try to recover Internet connectivity.

js
function set_wwwWatchdogDelay(newval)
nodejs
function set_wwwWatchdogDelay(newval)
cpp
int set_wwwWatchdogDelay(int newval)
m
-(int) setWwwWatchdogDelay: (int) newval
pas
function set_wwwWatchdogDelay(newval: LongInt): integer
vb
function set_wwwWatchdogDelay(ByVal newval As Integer) As Integer
cs
int set_wwwWatchdogDelay(int newval)
java
int set_wwwWatchdogDelay(int newval)
py
def set_wwwWatchdogDelay(newval)
php
function set_wwwWatchdogDelay($newval)
ecmascript
function set_wwwWatchdogDelay(newval)
cmd
YNetwork target set_wwwWatchdogDelay newval

A zero value disables automated reboot in case of Internet connectivity loss. The smallest valid non-zero timeout is 90 seconds.

Parameters :

newvalan integer corresponding to the allowed downtime of the WWW link (in seconds) before triggering an automated reboot to try to recover Internet connectivity

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

network→unmuteValueCallbacks()network.unmuteValueCallbacks()network.unmuteValueCallbacks()network→unmuteValueCallbacks()[network unmuteValueCallbacks]network.unmuteValueCallbacks()network.unmuteValueCallbacks()network.unmuteValueCallbacks()network.unmuteValueCallbacks()network.unmuteValueCallbacks()network→unmuteValueCallbacks()network.unmuteValueCallbacks()YNetwork unmuteValueCallbacks

Re-enable the propagation of every new advertised value to the parent hub.

js
function unmuteValueCallbacks()
nodejs
function unmuteValueCallbacks()
cpp
int unmuteValueCallbacks()
m
-(int) unmuteValueCallbacks
pas
function unmuteValueCallbacks(): LongInt
vb
function unmuteValueCallbacks() As Integer
cs
int unmuteValueCallbacks()
java
int unmuteValueCallbacks()
py
def unmuteValueCallbacks()
php
function unmuteValueCallbacks()
ecmascript
function unmuteValueCallbacks()
cmd
YNetwork target unmuteValueCallbacks

This function reverts the effect of a previous call to muteValueCallbacks(). Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

network→useDHCP()network.useDHCP()network.useDHCP()network→useDHCP()[network useDHCP: ]network.useDHCP()network.useDHCP()network.useDHCP()network.useDHCP()network.useDHCP()network→useDHCP()network.useDHCP()YNetwork useDHCP

Changes the configuration of the network interface to enable the use of an IP address received from a DHCP server.

js
function useDHCP(fallbackIpAddr, fallbackSubnetMaskLen, fallbackRouter)
nodejs
function useDHCP(fallbackIpAddr, fallbackSubnetMaskLen, fallbackRouter)
cpp
int useDHCP(string fallbackIpAddr,
  int fallbackSubnetMaskLen,
  string fallbackRouter)
m
-(int) useDHCP: (NSString*) fallbackIpAddr
  : (int) fallbackSubnetMaskLen
  : (NSString*) fallbackRouter
pas
function useDHCP(fallbackIpAddr: string,
  fallbackSubnetMaskLen: LongInt,
  fallbackRouter: string): LongInt
vb
function useDHCP() As Integer
cs
int useDHCP(string fallbackIpAddr,
  int fallbackSubnetMaskLen,
  string fallbackRouter)
java
int useDHCP(String fallbackIpAddr,
  int fallbackSubnetMaskLen,
  String fallbackRouter)
py
def useDHCP(fallbackIpAddr, fallbackSubnetMaskLen, fallbackRouter)
php
function useDHCP($fallbackIpAddr, $fallbackSubnetMaskLen, $fallbackRouter)
ecmascript
function useDHCP(fallbackIpAddr, fallbackSubnetMaskLen, fallbackRouter)
cmd
YNetwork target useDHCP fallbackIpAddr fallbackSubnetMaskLen fallbackRouter

Until an address is received from a DHCP server, the module uses the IP parameters specified to this function. Remember to call the saveToFlash() method and then to reboot the module to apply this setting.

Parameters :

fallbackIpAddrfallback IP address, to be used when no DHCP reply is received
fallbackSubnetMaskLenfallback subnet mask length when no DHCP reply is received, as an integer (eg. 24 means 255.255.255.0)
fallbackRouterfallback router IP address, to be used when no DHCP reply is received

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

network→useStaticIP()network.useStaticIP()network.useStaticIP()network→useStaticIP()[network useStaticIP: ]network.useStaticIP()network.useStaticIP()network.useStaticIP()network.useStaticIP()network.useStaticIP()network→useStaticIP()network.useStaticIP()YNetwork useStaticIP

Changes the configuration of the network interface to use a static IP address.

js
function useStaticIP(ipAddress, subnetMaskLen, router)
nodejs
function useStaticIP(ipAddress, subnetMaskLen, router)
cpp
int useStaticIP(string ipAddress,
  int subnetMaskLen,
  string router)
m
-(int) useStaticIP: (NSString*) ipAddress
  : (int) subnetMaskLen
  : (NSString*) router
pas
function useStaticIP(ipAddress: string,
  subnetMaskLen: LongInt,
  router: string): LongInt
vb
function useStaticIP() As Integer
cs
int useStaticIP(string ipAddress,
  int subnetMaskLen,
  string router)
java
int useStaticIP(String ipAddress,
  int subnetMaskLen,
  String router)
py
def useStaticIP(ipAddress, subnetMaskLen, router)
php
function useStaticIP($ipAddress, $subnetMaskLen, $router)
ecmascript
function useStaticIP(ipAddress, subnetMaskLen, router)
cmd
YNetwork target useStaticIP ipAddress subnetMaskLen router

Remember to call the saveToFlash() method and then to reboot the module to apply this setting.

Parameters :

ipAddressdevice IP address
subnetMaskLensubnet mask length, as an integer (eg. 24 means 255.255.255.0)
routerrouter IP address (default gateway)

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

network→wait_async()network.wait_async()network.wait_async()network.wait_async()

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

js
function wait_async(callback, context)
nodejs
function wait_async(callback, context)
ecmascript
function wait_async(callback, context, null)

The callback function can therefore freely issue synchronous or asynchronous commands, without risking to block the Javascript VM.

Parameters :

callbackcallback function that is invoked when all pending commands on the module are completed. The callback function receives two arguments: the caller-specific context object and the receiving function object.
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing.

8.4. Files function interface

The filesystem interface makes it possible to store files on some devices, for instance to design a custom web UI (for networked devices) or to add fonts (on display devices).

In order to use the functions described here, you should include:

js
<script type='text/javascript' src='yocto_files.js'></script>
nodejs
var yoctolib = require('yoctolib');
var YFiles = yoctolib.YFiles;
cpp
#include "yocto_files.h"
m
#import "yocto_files.h"
pas
uses yocto_files;
vb
yocto_files.vb
cs
yocto_files.cs
java
import com.yoctopuce.YoctoAPI.YFiles;
py
from yocto_files import *
php
require_once('yocto_files.php');
ecmascript
import { YFiles } from 'yoctolib-es'
Global functions
yFindFiles(func)

Retrieves a filesystem for a given identifier.

yFindFilesInContext(yctx, func)

Retrieves a filesystem for a given identifier in a YAPI context.

yFirstFiles()

Starts the enumeration of filesystems currently accessible.

yFirstFilesInContext(yctx)

Starts the enumeration of filesystems currently accessible.

YFiles methods
files→clearCache()

Invalidates the cache.

files→describe()

Returns a short text that describes unambiguously the instance of the filesystem in the form TYPE(NAME)=SERIAL.FUNCTIONID.

files→download(pathname)

Downloads the requested file and returns a binary buffer with its content.

files→download_async(pathname, callback, context)

Downloads the requested file and returns a binary buffer with its content.

files→fileExist(filename)

Test if a file exist on the filesystem of the module.

files→format_fs()

Reinitialize the filesystem to its clean, unfragmented, empty state.

files→get_advertisedValue()

Returns the current value of the filesystem (no more than 6 characters).

files→get_errorMessage()

Returns the error message of the latest error with the filesystem.

files→get_errorType()

Returns the numerical error code of the latest error with the filesystem.

files→get_filesCount()

Returns the number of files currently loaded in the filesystem.

files→get_freeSpace()

Returns the free space for uploading new files to the filesystem, in bytes.

files→get_friendlyName()

Returns a global identifier of the filesystem in the format MODULE_NAME.FUNCTION_NAME.

files→get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

files→get_functionId()

Returns the hardware identifier of the filesystem, without reference to the module.

files→get_hardwareId()

Returns the unique hardware identifier of the filesystem in the form SERIAL.FUNCTIONID.

files→get_list(pattern)

Returns a list of YFileRecord objects that describe files currently loaded in the filesystem.

files→get_logicalName()

Returns the logical name of the filesystem.

files→get_module()

Gets the YModule object for the device on which the function is located.

files→get_module_async(callback, context)

Gets the YModule object for the device on which the function is located (asynchronous version).

files→get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

files→isOnline()

Checks if the filesystem is currently reachable, without raising any error.

files→isOnline_async(callback, context)

Checks if the filesystem is currently reachable, without raising any error (asynchronous version).

files→load(msValidity)

Preloads the filesystem cache with a specified validity duration.

files→load_async(msValidity, callback, context)

Preloads the filesystem cache with a specified validity duration (asynchronous version).

files→muteValueCallbacks()

Disable the propagation of every new advertised value to the parent hub.

files→nextFiles()

Continues the enumeration of filesystems started using yFirstFiles().

files→registerValueCallback(callback)

Registers the callback function that is invoked on every change of advertised value.

files→remove(pathname)

Deletes a file, given by its full path name, from the filesystem.

files→set_logicalName(newval)

Changes the logical name of the filesystem.

files→set_userData(data)

Stores a user context provided as argument in the userData attribute of the function.

files→unmuteValueCallbacks()

Re-enable the propagation of every new advertised value to the parent hub.

files→upload(pathname, content)

Uploads a file to the filesystem, to the specified full path name.

files→wait_async(callback, context)

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

YFiles.FindFiles()
yFindFiles()
yFindFiles()YFiles.FindFiles()yFindFiles()[YFiles FindFiles: ]yFindFiles()yFindFiles()YFiles.FindFiles()YFiles.FindFiles()YFiles.FindFiles()yFindFiles()YFiles.FindFiles()

Retrieves a filesystem for a given identifier.

js
function yFindFiles(func)
nodejs
function FindFiles(func)
cpp
YFiles* yFindFiles(string func)
m
+(YFiles*) FindFiles: (NSString*) func
pas
function yFindFiles(func: string): TYFiles
vb
function yFindFiles(ByVal func As String) As YFiles
cs
YFiles FindFiles(string func)
java
YFiles FindFiles(String func)
py
def FindFiles(func)
php
function yFindFiles($func)
ecmascript
function FindFiles(func)

The identifier can be specified using several formats:

This function does not require that the filesystem is online at the time it is invoked. The returned object is nevertheless valid. Use the method YFiles.isOnline() to test if the filesystem is indeed online at a given time. In case of ambiguity when looking for a filesystem by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

funca string that uniquely characterizes the filesystem

Returns :

a YFiles object allowing you to drive the filesystem.

YFiles.FindFilesInContext()
yFindFilesInContext()
YFiles.FindFilesInContext()YFiles.FindFilesInContext()

Retrieves a filesystem for a given identifier in a YAPI context.

java
YFiles FindFilesInContext(YAPIContext yctx, String func)
ecmascript
function FindFilesInContext(yctx, func)

The identifier can be specified using several formats:

This function does not require that the filesystem is online at the time it is invoked. The returned object is nevertheless valid. Use the method YFiles.isOnline() to test if the filesystem is indeed online at a given time. In case of ambiguity when looking for a filesystem by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

yctxa YAPI context
funca string that uniquely characterizes the filesystem

Returns :

a YFiles object allowing you to drive the filesystem.

YFiles.FirstFiles()
yFirstFiles()
yFirstFiles()YFiles.FirstFiles()yFirstFiles()[YFiles FirstFiles]yFirstFiles()yFirstFiles()YFiles.FirstFiles()YFiles.FirstFiles()YFiles.FirstFiles()yFirstFiles()YFiles.FirstFiles()

Starts the enumeration of filesystems currently accessible.

js
function yFirstFiles()
nodejs
function FirstFiles()
cpp
YFiles* yFirstFiles()
m
+(YFiles*) FirstFiles
pas
function yFirstFiles(): TYFiles
vb
function yFirstFiles() As YFiles
cs
YFiles FirstFiles()
java
YFiles FirstFiles()
py
def FirstFiles()
php
function yFirstFiles()
ecmascript
function FirstFiles()

Use the method YFiles.nextFiles() to iterate on next filesystems.

Returns :

a pointer to a YFiles object, corresponding to the first filesystem currently online, or a null pointer if there are none.

YFiles.FirstFilesInContext()
yFirstFilesInContext()
YFiles.FirstFilesInContext()YFiles.FirstFilesInContext()

Starts the enumeration of filesystems currently accessible.

java
YFiles FirstFilesInContext(YAPIContext yctx)
ecmascript
function FirstFilesInContext(yctx)

Use the method YFiles.nextFiles() to iterate on next filesystems.

Parameters :

yctxa YAPI context.

Returns :

a pointer to a YFiles object, corresponding to the first filesystem currently online, or a null pointer if there are none.

files→clearCache()files.clearCache()files.clearCache()files→clearCache()[files clearCache]files.clearCache()files.clearCache()files.clearCache()files.clearCache()files.clearCache()files→clearCache()files.clearCache()

Invalidates the cache.

js
function clearCache()
nodejs
function clearCache()
cpp
void clearCache()
m
-(void) clearCache
pas
procedure clearCache()
vb
procedure clearCache()
cs
void clearCache()
java
void clearCache()
py
def clearCache()
php
function clearCache()
ecmascript
function clearCache()

Invalidates the cache of the filesystem attributes. Forces the next call to get_xxx() or loadxxx() to use values that come from the device.

files→describe()files.describe()files.describe()files→describe()[files describe]files.describe()files.describe()files.describe()files.describe()files.describe()files→describe()files.describe()

Returns a short text that describes unambiguously the instance of the filesystem in the form TYPE(NAME)=SERIAL.FUNCTIONID.

js
function describe()
nodejs
function describe()
cpp
string describe()
m
-(NSString*) describe
pas
function describe(): string
vb
function describe() As String
cs
string describe()
java
String describe()
py
def describe()
php
function describe()
ecmascript
function describe()

More precisely, TYPE is the type of the function, NAME it the name used for the first access to the function, SERIAL is the serial number of the module if the module is connected or "unresolved", and FUNCTIONID is the hardware identifier of the function if the module is connected. For example, this method returns Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1 if the module is already connected or Relay(BadCustomeName.relay1)=unresolved if the module has not yet been connected. This method does not trigger any USB or TCP transaction and can therefore be used in a debugger.

Returns :

a string that describes the filesystem (ex: Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1)

files→download()files.download()files.download()files→download()[files download: ]files.download()files.download()files.download()files.download()files.download()files→download()files.download()YFiles download

Downloads the requested file and returns a binary buffer with its content.

js
function download(pathname)
nodejs
function download(pathname)
cpp
string download(string pathname)
m
-(NSMutableData*) download: (NSString*) pathname
pas
function download(pathname: string): TByteArray
vb
function download() As Byte
cs
byte[] download(string pathname)
java
byte[] download(String pathname)
py
def download(pathname)
php
function download($pathname)
ecmascript
function download(pathname)
cmd
YFiles target download pathname

Parameters :

pathnamepath and name of the file to download

Returns :

a binary buffer with the file content

On failure, throws an exception or returns an empty content.

files→download_async()files.download_async()files.download_async()

Downloads the requested file and returns a binary buffer with its content.

js
function download_async(pathname, callback, context)
nodejs
function download_async(pathname, callback, context)

This is the asynchronous version that uses a callback to pass the result when the donwload is completed.

Parameters :

pathnamepath and name of the new file to load
callbackcallback function that is invoked when the w The callback function receives three arguments: - the user-specific context object - the YFiles object whose download_async was invoked - a binary buffer with the file content
contextuser-specific object that is passed as-is to the callback function

Returns :

nothing.

files→fileExist()files.fileExist()files.fileExist()files→fileExist()[files fileExist: ]files.fileExist()files.fileExist()files.fileExist()files.fileExist()files.fileExist()files→fileExist()files.fileExist()YFiles fileExist

Test if a file exist on the filesystem of the module.

js
function fileExist(filename)
nodejs
function fileExist(filename)
cpp
bool fileExist(string filename)
m
-(bool) fileExist: (NSString*) filename
pas
function fileExist(filename: string): boolean
vb
function fileExist() As Boolean
cs
bool fileExist(string filename)
java
boolean fileExist(String filename)
py
def fileExist(filename)
php
function fileExist($filename)
ecmascript
function fileExist(filename)
cmd
YFiles target fileExist filename

Parameters :

filenamethe file name to test.

Returns :

a true if the file existe, false ortherwise.

On failure, throws an exception.

files→format_fs()files.format_fs()files.format_fs()files→format_fs()[files format_fs]files.format_fs()files.format_fs()files.format_fs()files.format_fs()files.format_fs()files→format_fs()files.format_fs()YFiles format_fs

Reinitialize the filesystem to its clean, unfragmented, empty state.

js
function format_fs()
nodejs
function format_fs()
cpp
int format_fs()
m
-(int) format_fs
pas
function format_fs(): LongInt
vb
function format_fs() As Integer
cs
int format_fs()
java
int format_fs()
py
def format_fs()
php
function format_fs()
ecmascript
function format_fs()
cmd
YFiles target format_fs

All files previously uploaded are permanently lost.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

files→get_advertisedValue()
files→advertisedValue()
files.get_advertisedValue()files.get_advertisedValue()files→get_advertisedValue()[files advertisedValue]files.get_advertisedValue()files.get_advertisedValue()files.get_advertisedValue()files.get_advertisedValue()files.get_advertisedValue()files→get_advertisedValue()files.get_advertisedValue()YFiles get_advertisedValue

Returns the current value of the filesystem (no more than 6 characters).

js
function get_advertisedValue()
nodejs
function get_advertisedValue()
cpp
string get_advertisedValue()
m
-(NSString*) advertisedValue
pas
function get_advertisedValue(): string
vb
function get_advertisedValue() As String
cs
string get_advertisedValue()
java
String get_advertisedValue()
py
def get_advertisedValue()
php
function get_advertisedValue()
ecmascript
function get_advertisedValue()
cmd
YFiles target get_advertisedValue

Returns :

a string corresponding to the current value of the filesystem (no more than 6 characters).

On failure, throws an exception or returns Y_ADVERTISEDVALUE_INVALID.

files→get_errorMessage()
files→errorMessage()
files.get_errorMessage()files.get_errorMessage()files→get_errorMessage()[files errorMessage]files.get_errorMessage()files.get_errorMessage()files.get_errorMessage()files.get_errorMessage()files.get_errorMessage()files→get_errorMessage()files.get_errorMessage()

Returns the error message of the latest error with the filesystem.

js
function get_errorMessage()
nodejs
function get_errorMessage()
cpp
string get_errorMessage()
m
-(NSString*) errorMessage
pas
function get_errorMessage(): string
vb
function get_errorMessage() As String
cs
string get_errorMessage()
java
String get_errorMessage()
py
def get_errorMessage()
php
function get_errorMessage()
ecmascript
function get_errorMessage()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a string corresponding to the latest error message that occured while using the filesystem object

files→get_errorType()
files→errorType()
files.get_errorType()files.get_errorType()files→get_errorType()files.get_errorType()files.get_errorType()files.get_errorType()files.get_errorType()files.get_errorType()files→get_errorType()files.get_errorType()

Returns the numerical error code of the latest error with the filesystem.

js
function get_errorType()
nodejs
function get_errorType()
cpp
YRETCODE get_errorType()
pas
function get_errorType(): YRETCODE
vb
function get_errorType() As YRETCODE
cs
YRETCODE get_errorType()
java
int get_errorType()
py
def get_errorType()
php
function get_errorType()
ecmascript
function get_errorType()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a number corresponding to the code of the latest error that occurred while using the filesystem object

files→get_filesCount()
files→filesCount()
files.get_filesCount()files.get_filesCount()files→get_filesCount()[files filesCount]files.get_filesCount()files.get_filesCount()files.get_filesCount()files.get_filesCount()files.get_filesCount()files→get_filesCount()files.get_filesCount()YFiles get_filesCount

Returns the number of files currently loaded in the filesystem.

js
function get_filesCount()
nodejs
function get_filesCount()
cpp
int get_filesCount()
m
-(int) filesCount
pas
function get_filesCount(): LongInt
vb
function get_filesCount() As Integer
cs
int get_filesCount()
java
int get_filesCount()
py
def get_filesCount()
php
function get_filesCount()
ecmascript
function get_filesCount()
cmd
YFiles target get_filesCount

Returns :

an integer corresponding to the number of files currently loaded in the filesystem

On failure, throws an exception or returns Y_FILESCOUNT_INVALID.

files→get_freeSpace()
files→freeSpace()
files.get_freeSpace()files.get_freeSpace()files→get_freeSpace()[files freeSpace]files.get_freeSpace()files.get_freeSpace()files.get_freeSpace()files.get_freeSpace()files.get_freeSpace()files→get_freeSpace()files.get_freeSpace()YFiles get_freeSpace

Returns the free space for uploading new files to the filesystem, in bytes.

js
function get_freeSpace()
nodejs
function get_freeSpace()
cpp
int get_freeSpace()
m
-(int) freeSpace
pas
function get_freeSpace(): LongInt
vb
function get_freeSpace() As Integer
cs
int get_freeSpace()
java
int get_freeSpace()
py
def get_freeSpace()
php
function get_freeSpace()
ecmascript
function get_freeSpace()
cmd
YFiles target get_freeSpace

Returns :

an integer corresponding to the free space for uploading new files to the filesystem, in bytes

On failure, throws an exception or returns Y_FREESPACE_INVALID.

files→get_friendlyName()
files→friendlyName()
files.get_friendlyName()files.get_friendlyName()files→get_friendlyName()[files friendlyName]files.get_friendlyName()files.get_friendlyName()files.get_friendlyName()files→get_friendlyName()files.get_friendlyName()

Returns a global identifier of the filesystem in the format MODULE_NAME.FUNCTION_NAME.

js
function get_friendlyName()
nodejs
function get_friendlyName()
cpp
string get_friendlyName()
m
-(NSString*) friendlyName
cs
string get_friendlyName()
java
String get_friendlyName()
py
def get_friendlyName()
php
function get_friendlyName()
ecmascript
function get_friendlyName()

The returned string uses the logical names of the module and of the filesystem if they are defined, otherwise the serial number of the module and the hardware identifier of the filesystem (for example: MyCustomName.relay1)

Returns :

a string that uniquely identifies the filesystem using logical names (ex: MyCustomName.relay1)

On failure, throws an exception or returns Y_FRIENDLYNAME_INVALID.

files→get_functionDescriptor()
files→functionDescriptor()
files.get_functionDescriptor()files.get_functionDescriptor()files→get_functionDescriptor()[files functionDescriptor]files.get_functionDescriptor()files.get_functionDescriptor()files.get_functionDescriptor()files.get_functionDescriptor()files.get_functionDescriptor()files→get_functionDescriptor()files.get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

js
function get_functionDescriptor()
nodejs
function get_functionDescriptor()
cpp
YFUN_DESCR get_functionDescriptor()
m
-(YFUN_DESCR) functionDescriptor
pas
function get_functionDescriptor(): YFUN_DESCR
vb
function get_functionDescriptor() As YFUN_DESCR
cs
YFUN_DESCR get_functionDescriptor()
java
String get_functionDescriptor()
py
def get_functionDescriptor()
php
function get_functionDescriptor()
ecmascript
function get_functionDescriptor()

This identifier can be used to test if two instances of YFunction reference the same physical function on the same physical device.

Returns :

an identifier of type YFUN_DESCR.

If the function has never been contacted, the returned value is Y_FUNCTIONDESCRIPTOR_INVALID.

files→get_functionId()
files→functionId()
files.get_functionId()files.get_functionId()files→get_functionId()[files functionId]files.get_functionId()files.get_functionId()files.get_functionId()files.get_functionId()files→get_functionId()files.get_functionId()

Returns the hardware identifier of the filesystem, without reference to the module.

js
function get_functionId()
nodejs
function get_functionId()
cpp
string get_functionId()
m
-(NSString*) functionId
vb
function get_functionId() As String
cs
string get_functionId()
java
String get_functionId()
py
def get_functionId()
php
function get_functionId()
ecmascript
function get_functionId()

For example relay1

Returns :

a string that identifies the filesystem (ex: relay1)

On failure, throws an exception or returns Y_FUNCTIONID_INVALID.

files→get_hardwareId()
files→hardwareId()
files.get_hardwareId()files.get_hardwareId()files→get_hardwareId()[files hardwareId]files.get_hardwareId()files.get_hardwareId()files.get_hardwareId()files.get_hardwareId()files→get_hardwareId()files.get_hardwareId()

Returns the unique hardware identifier of the filesystem in the form SERIAL.FUNCTIONID.

js
function get_hardwareId()
nodejs
function get_hardwareId()
cpp
string get_hardwareId()
m
-(NSString*) hardwareId
vb
function get_hardwareId() As String
cs
string get_hardwareId()
java
String get_hardwareId()
py
def get_hardwareId()
php
function get_hardwareId()
ecmascript
function get_hardwareId()

The unique hardware identifier is composed of the device serial number and of the hardware identifier of the filesystem (for example RELAYLO1-123456.relay1).

Returns :

a string that uniquely identifies the filesystem (ex: RELAYLO1-123456.relay1)

On failure, throws an exception or returns Y_HARDWAREID_INVALID.

files→get_list()
files→list()
files.get_list()files.get_list()files→get_list()[files list: ]files.get_list()files.get_list()files.get_list()files.get_list()files.get_list()files→get_list()files.get_list()YFiles get_list

Returns a list of YFileRecord objects that describe files currently loaded in the filesystem.

js
function get_list(pattern)
nodejs
function get_list(pattern)
cpp
vector<YFileRecord> get_list(string pattern)
m
-(NSMutableArray*) list: (NSString*) pattern
pas
function get_list(pattern: string): TYFileRecordArray
vb
function get_list() As List
cs
List<YFileRecord> get_list(string pattern)
java
ArrayList<YFileRecord> get_list(String pattern)
py
def get_list(pattern)
php
function get_list($pattern)
ecmascript
function get_list(pattern)
cmd
YFiles target get_list pattern

Parameters :

patternan optional filter pattern, using star and question marks as wildcards. When an empty pattern is provided, all file records are returned.

Returns :

a list of YFileRecord objects, containing the file path and name, byte size and 32-bit CRC of the file content.

On failure, throws an exception or returns an empty list.

files→get_logicalName()
files→logicalName()
files.get_logicalName()files.get_logicalName()files→get_logicalName()[files logicalName]files.get_logicalName()files.get_logicalName()files.get_logicalName()files.get_logicalName()files.get_logicalName()files→get_logicalName()files.get_logicalName()YFiles get_logicalName

Returns the logical name of the filesystem.

js
function get_logicalName()
nodejs
function get_logicalName()
cpp
string get_logicalName()
m
-(NSString*) logicalName
pas
function get_logicalName(): string
vb
function get_logicalName() As String
cs
string get_logicalName()
java
String get_logicalName()
py
def get_logicalName()
php
function get_logicalName()
ecmascript
function get_logicalName()
cmd
YFiles target get_logicalName

Returns :

a string corresponding to the logical name of the filesystem.

On failure, throws an exception or returns Y_LOGICALNAME_INVALID.

files→get_module()
files→module()
files.get_module()files.get_module()files→get_module()[files module]files.get_module()files.get_module()files.get_module()files.get_module()files.get_module()files→get_module()files.get_module()

Gets the YModule object for the device on which the function is located.

js
function get_module()
nodejs
function get_module()
cpp
YModule * get_module()
m
-(YModule*) module
pas
function get_module(): TYModule
vb
function get_module() As YModule
cs
YModule get_module()
java
YModule get_module()
py
def get_module()
php
function get_module()
ecmascript
function get_module()

If the function cannot be located on any module, the returned instance of YModule is not shown as on-line.

Returns :

an instance of YModule

files→get_module_async()
files→module_async()
files.get_module_async()files.get_module_async()

Gets the YModule object for the device on which the function is located (asynchronous version).

js
function get_module_async(callback, context)
nodejs
function get_module_async(callback, context)

If the function cannot be located on any module, the returned YModule object does not show as on-line.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking Firefox javascript VM that does not implement context switching during blocking I/O calls. See the documentation section on asynchronous Javascript calls for more details.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the requested YModule object
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

files→get_userData()
files→userData()
files.get_userData()files.get_userData()files→get_userData()[files userData]files.get_userData()files.get_userData()files.get_userData()files.get_userData()files.get_userData()files→get_userData()files.get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

js
function get_userData()
nodejs
function get_userData()
cpp
void * get_userData()
m
-(id) userData
pas
function get_userData(): Tobject
vb
function get_userData() As Object
cs
object get_userData()
java
Object get_userData()
py
def get_userData()
php
function get_userData()
ecmascript
function get_userData()

This attribute is never touched directly by the API, and is at disposal of the caller to store a context.

Returns :

the object stored previously by the caller.

files→isOnline()files.isOnline()files.isOnline()files→isOnline()[files isOnline]files.isOnline()files.isOnline()files.isOnline()files.isOnline()files.isOnline()files→isOnline()files.isOnline()

Checks if the filesystem is currently reachable, without raising any error.

js
function isOnline()
nodejs
function isOnline()
cpp
bool isOnline()
m
-(BOOL) isOnline
pas
function isOnline(): boolean
vb
function isOnline() As Boolean
cs
bool isOnline()
java
boolean isOnline()
py
def isOnline()
php
function isOnline()
ecmascript
function isOnline()

If there is a cached value for the filesystem in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the filesystem.

Returns :

true if the filesystem can be reached, and false otherwise

files→isOnline_async()files.isOnline_async()files.isOnline_async()

Checks if the filesystem is currently reachable, without raising any error (asynchronous version).

js
function isOnline_async(callback, context)
nodejs
function isOnline_async(callback, context)

If there is a cached value for the filesystem in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the requested function.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the boolean result
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

files→load()files.load()files.load()files→load()[files load: ]files.load()files.load()files.load()files.load()files.load()files→load()files.load()

Preloads the filesystem cache with a specified validity duration.

js
function load(msValidity)
nodejs
function load(msValidity)
cpp
YRETCODE load(int msValidity)
m
-(YRETCODE) load: (int) msValidity
pas
function load(msValidity: integer): YRETCODE
vb
function load(ByVal msValidity As Integer) As YRETCODE
cs
YRETCODE load(ulong msValidity)
java
int load(long msValidity)
py
def load(msValidity)
php
function load($msValidity)
ecmascript
function load(msValidity)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network traffic for instance.

Parameters :

msValidityan integer corresponding to the validity attributed to the loaded function parameters, in milliseconds

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

files→load_async()files.load_async()files.load_async()

Preloads the filesystem cache with a specified validity duration (asynchronous version).

js
function load_async(msValidity, callback, context)
nodejs
function load_async(msValidity, callback, context)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network trafic for instance.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

msValidityan integer corresponding to the validity of the loaded function parameters, in milliseconds
callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the error code (or YAPI_SUCCESS)
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

files→muteValueCallbacks()files.muteValueCallbacks()files.muteValueCallbacks()files→muteValueCallbacks()[files muteValueCallbacks]files.muteValueCallbacks()files.muteValueCallbacks()files.muteValueCallbacks()files.muteValueCallbacks()files.muteValueCallbacks()files→muteValueCallbacks()files.muteValueCallbacks()YFiles muteValueCallbacks

Disable the propagation of every new advertised value to the parent hub.

js
function muteValueCallbacks()
nodejs
function muteValueCallbacks()
cpp
int muteValueCallbacks()
m
-(int) muteValueCallbacks
pas
function muteValueCallbacks(): LongInt
vb
function muteValueCallbacks() As Integer
cs
int muteValueCallbacks()
java
int muteValueCallbacks()
py
def muteValueCallbacks()
php
function muteValueCallbacks()
ecmascript
function muteValueCallbacks()
cmd
YFiles target muteValueCallbacks

You can use this function to save bandwidth and CPU on computers with limited resources, or to prevent unwanted invocations of the HTTP callback. Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

files→nextFiles()files.nextFiles()files.nextFiles()files→nextFiles()[files nextFiles]files.nextFiles()files.nextFiles()files.nextFiles()files.nextFiles()files.nextFiles()files→nextFiles()files.nextFiles()

Continues the enumeration of filesystems started using yFirstFiles().

js
function nextFiles()
nodejs
function nextFiles()
cpp
YFiles * nextFiles()
m
-(YFiles*) nextFiles
pas
function nextFiles(): TYFiles
vb
function nextFiles() As YFiles
cs
YFiles nextFiles()
java
YFiles nextFiles()
py
def nextFiles()
php
function nextFiles()
ecmascript
function nextFiles()

Returns :

a pointer to a YFiles object, corresponding to a filesystem currently online, or a null pointer if there are no more filesystems to enumerate.

files→registerValueCallback()files.registerValueCallback()files.registerValueCallback()files→registerValueCallback()[files registerValueCallback: ]files.registerValueCallback()files.registerValueCallback()files.registerValueCallback()files.registerValueCallback()files.registerValueCallback()files→registerValueCallback()files.registerValueCallback()

Registers the callback function that is invoked on every change of advertised value.

js
function registerValueCallback(callback)
nodejs
function registerValueCallback(callback)
cpp
int registerValueCallback(YFilesValueCallback callback)
m
-(int) registerValueCallback: (YFilesValueCallback) callback
pas
function registerValueCallback(callback: TYFilesValueCallback): LongInt
vb
function registerValueCallback() As Integer
cs
int registerValueCallback(ValueCallback callback)
java
int registerValueCallback(UpdateCallback callback)
py
def registerValueCallback(callback)
php
function registerValueCallback($callback)
ecmascript
function registerValueCallback(callback)

The callback is invoked only during the execution of ySleep or yHandleEvents. This provides control over the time when the callback is triggered. For good responsiveness, remember to call one of these two functions periodically. To unregister a callback, pass a null pointer as argument.

Parameters :

callbackthe callback function to call, or a null pointer. The callback function should take two arguments: the function object of which the value has changed, and the character string describing the new advertised value.

files→remove()files.remove()files.remove()files→remove()[files remove: ]files.remove()files.remove()files.remove()files.remove()files.remove()files→remove()files.remove()YFiles remove

Deletes a file, given by its full path name, from the filesystem.

js
function remove(pathname)
nodejs
function remove(pathname)
cpp
int remove(string pathname)
m
-(int) remove: (NSString*) pathname
pas
function remove(pathname: string): LongInt
vb
function remove() As Integer
cs
int remove(string pathname)
java
int remove(String pathname)
py
def remove(pathname)
php
function remove($pathname)
ecmascript
function remove(pathname)
cmd
YFiles target remove pathname

Because of filesystem fragmentation, deleting a file may not always free up the whole space used by the file. However, rewriting a file with the same path name will always reuse any space not freed previously. If you need to ensure that no space is taken by previously deleted files, you can use format_fs to fully reinitialize the filesystem.

Parameters :

pathnamepath and name of the file to remove.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

files→set_logicalName()
files→setLogicalName()
files.set_logicalName()files.set_logicalName()files→set_logicalName()[files setLogicalName: ]files.set_logicalName()files.set_logicalName()files.set_logicalName()files.set_logicalName()files.set_logicalName()files→set_logicalName()files.set_logicalName()YFiles set_logicalName

Changes the logical name of the filesystem.

js
function set_logicalName(newval)
nodejs
function set_logicalName(newval)
cpp
int set_logicalName(const string& newval)
m
-(int) setLogicalName: (NSString*) newval
pas
function set_logicalName(newval: string): integer
vb
function set_logicalName(ByVal newval As String) As Integer
cs
int set_logicalName(string newval)
java
int set_logicalName(String newval)
py
def set_logicalName(newval)
php
function set_logicalName($newval)
ecmascript
function set_logicalName(newval)
cmd
YFiles target set_logicalName newval

You can use yCheckLogicalName() prior to this call to make sure that your parameter is valid. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the logical name of the filesystem.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

files→set_userData()
files→setUserData()
files.set_userData()files.set_userData()files→set_userData()[files setUserData: ]files.set_userData()files.set_userData()files.set_userData()files.set_userData()files.set_userData()files→set_userData()files.set_userData()

Stores a user context provided as argument in the userData attribute of the function.

js
function set_userData(data)
nodejs
function set_userData(data)
cpp
void set_userData(void* data)
m
-(void) setUserData: (id) data
pas
procedure set_userData(data: Tobject)
vb
procedure set_userData(ByVal data As Object)
cs
void set_userData(object data)
java
void set_userData(Object data)
py
def set_userData(data)
php
function set_userData($data)
ecmascript
function set_userData(data)

This attribute is never touched by the API, and is at disposal of the caller to store a context.

Parameters :

dataany kind of object to be stored

files→unmuteValueCallbacks()files.unmuteValueCallbacks()files.unmuteValueCallbacks()files→unmuteValueCallbacks()[files unmuteValueCallbacks]files.unmuteValueCallbacks()files.unmuteValueCallbacks()files.unmuteValueCallbacks()files.unmuteValueCallbacks()files.unmuteValueCallbacks()files→unmuteValueCallbacks()files.unmuteValueCallbacks()YFiles unmuteValueCallbacks

Re-enable the propagation of every new advertised value to the parent hub.

js
function unmuteValueCallbacks()
nodejs
function unmuteValueCallbacks()
cpp
int unmuteValueCallbacks()
m
-(int) unmuteValueCallbacks
pas
function unmuteValueCallbacks(): LongInt
vb
function unmuteValueCallbacks() As Integer
cs
int unmuteValueCallbacks()
java
int unmuteValueCallbacks()
py
def unmuteValueCallbacks()
php
function unmuteValueCallbacks()
ecmascript
function unmuteValueCallbacks()
cmd
YFiles target unmuteValueCallbacks

This function reverts the effect of a previous call to muteValueCallbacks(). Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

files→upload()files.upload()files.upload()files→upload()[files upload: ]files.upload()files.upload()files.upload()files.upload()files.upload()files→upload()files.upload()YFiles upload

Uploads a file to the filesystem, to the specified full path name.

js
function upload(pathname, content)
nodejs
function upload(pathname, content)
cpp
int upload(string pathname, string content)
m
-(int) upload: (NSString*) pathname
  : (NSData*) content
pas
function upload(pathname: string, content: TByteArray): LongInt
vb
procedure upload()
cs
int upload(string pathname)
java
int upload(String pathname, byte[] content)
py
def upload(pathname, content)
php
function upload($pathname, $content)
ecmascript
function upload(pathname, content)
cmd
YFiles target upload pathname content

If a file already exists with the same path name, its content is overwritten.

Parameters :

pathnamepath and name of the new file to create
contentbinary buffer with the content to set

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

files→wait_async()files.wait_async()files.wait_async()files.wait_async()

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

js
function wait_async(callback, context)
nodejs
function wait_async(callback, context)
ecmascript
function wait_async(callback, context, null)

The callback function can therefore freely issue synchronous or asynchronous commands, without risking to block the Javascript VM.

Parameters :

callbackcallback function that is invoked when all pending commands on the module are completed. The callback function receives two arguments: the caller-specific context object and the receiving function object.
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing.

8.5. Real Time Clock function interface

The RealTimeClock function maintains and provides current date and time, even accross power cut lasting several days. It is the base for automated wake-up functions provided by the WakeUpScheduler. The current time may represent a local time as well as an UTC time, but no automatic time change will occur to account for daylight saving time.

In order to use the functions described here, you should include:

js
<script type='text/javascript' src='yocto_realtimeclock.js'></script>
nodejs
var yoctolib = require('yoctolib');
var YRealTimeClock = yoctolib.YRealTimeClock;
cpp
#include "yocto_realtimeclock.h"
m
#import "yocto_realtimeclock.h"
pas
uses yocto_realtimeclock;
vb
yocto_realtimeclock.vb
cs
yocto_realtimeclock.cs
java
import com.yoctopuce.YoctoAPI.YRealTimeClock;
py
from yocto_realtimeclock import *
php
require_once('yocto_realtimeclock.php');
ecmascript
import { YRealTimeClock } from 'yoctolib-es'
Global functions
yFindRealTimeClock(func)

Retrieves a clock for a given identifier.

yFindRealTimeClockInContext(yctx, func)

Retrieves a clock for a given identifier in a YAPI context.

yFirstRealTimeClock()

Starts the enumeration of clocks currently accessible.

yFirstRealTimeClockInContext(yctx)

Starts the enumeration of clocks currently accessible.

YRealTimeClock methods
realtimeclock→clearCache()

Invalidates the cache.

realtimeclock→describe()

Returns a short text that describes unambiguously the instance of the clock in the form TYPE(NAME)=SERIAL.FUNCTIONID.

realtimeclock→get_advertisedValue()

Returns the current value of the clock (no more than 6 characters).

realtimeclock→get_dateTime()

Returns the current time in the form "YYYY/MM/DD hh:mm:ss"

realtimeclock→get_errorMessage()

Returns the error message of the latest error with the clock.

realtimeclock→get_errorType()

Returns the numerical error code of the latest error with the clock.

realtimeclock→get_friendlyName()

Returns a global identifier of the clock in the format MODULE_NAME.FUNCTION_NAME.

realtimeclock→get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

realtimeclock→get_functionId()

Returns the hardware identifier of the clock, without reference to the module.

realtimeclock→get_hardwareId()

Returns the unique hardware identifier of the clock in the form SERIAL.FUNCTIONID.

realtimeclock→get_logicalName()

Returns the logical name of the clock.

realtimeclock→get_module()

Gets the YModule object for the device on which the function is located.

realtimeclock→get_module_async(callback, context)

Gets the YModule object for the device on which the function is located (asynchronous version).

realtimeclock→get_timeSet()

Returns true if the clock has been set, and false otherwise.

realtimeclock→get_unixTime()

Returns the current time in Unix format (number of elapsed seconds since Jan 1st, 1970).

realtimeclock→get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

realtimeclock→get_utcOffset()

Returns the number of seconds between current time and UTC time (time zone).

realtimeclock→isOnline()

Checks if the clock is currently reachable, without raising any error.

realtimeclock→isOnline_async(callback, context)

Checks if the clock is currently reachable, without raising any error (asynchronous version).

realtimeclock→load(msValidity)

Preloads the clock cache with a specified validity duration.

realtimeclock→load_async(msValidity, callback, context)

Preloads the clock cache with a specified validity duration (asynchronous version).

realtimeclock→muteValueCallbacks()

Disable the propagation of every new advertised value to the parent hub.

realtimeclock→nextRealTimeClock()

Continues the enumeration of clocks started using yFirstRealTimeClock().

realtimeclock→registerValueCallback(callback)

Registers the callback function that is invoked on every change of advertised value.

realtimeclock→set_logicalName(newval)

Changes the logical name of the clock.

realtimeclock→set_unixTime(newval)

Changes the current time.

realtimeclock→set_userData(data)

Stores a user context provided as argument in the userData attribute of the function.

realtimeclock→set_utcOffset(newval)

Changes the number of seconds between current time and UTC time (time zone).

realtimeclock→unmuteValueCallbacks()

Re-enable the propagation of every new advertised value to the parent hub.

realtimeclock→wait_async(callback, context)

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

YRealTimeClock.FindRealTimeClock()
yFindRealTimeClock()
yFindRealTimeClock()YRealTimeClock.FindRealTimeClock()yFindRealTimeClock()[YRealTimeClock FindRealTimeClock: ]yFindRealTimeClock()yFindRealTimeClock()YRealTimeClock.FindRealTimeClock()YRealTimeClock.FindRealTimeClock()YRealTimeClock.FindRealTimeClock()yFindRealTimeClock()YRealTimeClock.FindRealTimeClock()

Retrieves a clock for a given identifier.

js
function yFindRealTimeClock(func)
nodejs
function FindRealTimeClock(func)
cpp
YRealTimeClock* yFindRealTimeClock(const string& func)
m
+(YRealTimeClock*) FindRealTimeClock:(NSString*) func
pas
function yFindRealTimeClock(func: string): TYRealTimeClock
vb
function yFindRealTimeClock(ByVal func As String) As YRealTimeClock
cs
YRealTimeClock FindRealTimeClock(string func)
java
YRealTimeClock FindRealTimeClock(String func)
py
def FindRealTimeClock(func)
php
function yFindRealTimeClock($func)
ecmascript
function FindRealTimeClock(func)

The identifier can be specified using several formats:

This function does not require that the clock is online at the time it is invoked. The returned object is nevertheless valid. Use the method YRealTimeClock.isOnline() to test if the clock is indeed online at a given time. In case of ambiguity when looking for a clock by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

funca string that uniquely characterizes the clock

Returns :

a YRealTimeClock object allowing you to drive the clock.

YRealTimeClock.FindRealTimeClockInContext()
yFindRealTimeClockInContext()
YRealTimeClock.FindRealTimeClockInContext()YRealTimeClock.FindRealTimeClockInContext()

Retrieves a clock for a given identifier in a YAPI context.

java
YRealTimeClock FindRealTimeClockInContext(YAPIContext yctx,
  String func)
ecmascript
function FindRealTimeClockInContext(yctx, func)

The identifier can be specified using several formats:

This function does not require that the clock is online at the time it is invoked. The returned object is nevertheless valid. Use the method YRealTimeClock.isOnline() to test if the clock is indeed online at a given time. In case of ambiguity when looking for a clock by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

yctxa YAPI context
funca string that uniquely characterizes the clock

Returns :

a YRealTimeClock object allowing you to drive the clock.

YRealTimeClock.FirstRealTimeClock()
yFirstRealTimeClock()
yFirstRealTimeClock()YRealTimeClock.FirstRealTimeClock()yFirstRealTimeClock()[YRealTimeClock FirstRealTimeClock]yFirstRealTimeClock()yFirstRealTimeClock()YRealTimeClock.FirstRealTimeClock()YRealTimeClock.FirstRealTimeClock()YRealTimeClock.FirstRealTimeClock()yFirstRealTimeClock()YRealTimeClock.FirstRealTimeClock()

Starts the enumeration of clocks currently accessible.

js
function yFirstRealTimeClock()
nodejs
function FirstRealTimeClock()
cpp
YRealTimeClock* yFirstRealTimeClock()
m
+(YRealTimeClock*) FirstRealTimeClock
pas
function yFirstRealTimeClock(): TYRealTimeClock
vb
function yFirstRealTimeClock() As YRealTimeClock
cs
YRealTimeClock FirstRealTimeClock()
java
YRealTimeClock FirstRealTimeClock()
py
def FirstRealTimeClock()
php
function yFirstRealTimeClock()
ecmascript
function FirstRealTimeClock()

Use the method YRealTimeClock.nextRealTimeClock() to iterate on next clocks.

Returns :

a pointer to a YRealTimeClock object, corresponding to the first clock currently online, or a null pointer if there are none.

YRealTimeClock.FirstRealTimeClockInContext()
yFirstRealTimeClockInContext()
YRealTimeClock.FirstRealTimeClockInContext()YRealTimeClock.FirstRealTimeClockInContext()

Starts the enumeration of clocks currently accessible.

java
YRealTimeClock FirstRealTimeClockInContext(YAPIContext yctx)
ecmascript
function FirstRealTimeClockInContext(yctx)

Use the method YRealTimeClock.nextRealTimeClock() to iterate on next clocks.

Parameters :

yctxa YAPI context.

Returns :

a pointer to a YRealTimeClock object, corresponding to the first clock currently online, or a null pointer if there are none.

realtimeclock→clearCache()realtimeclock.clearCache()realtimeclock.clearCache()realtimeclock→clearCache()[realtimeclock clearCache]realtimeclock.clearCache()realtimeclock.clearCache()realtimeclock.clearCache()realtimeclock.clearCache()realtimeclock.clearCache()realtimeclock→clearCache()realtimeclock.clearCache()

Invalidates the cache.

js
function clearCache()
nodejs
function clearCache()
cpp
void clearCache()
m
-(void) clearCache
pas
procedure clearCache()
vb
procedure clearCache()
cs
void clearCache()
java
void clearCache()
py
def clearCache()
php
function clearCache()
ecmascript
function clearCache()

Invalidates the cache of the clock attributes. Forces the next call to get_xxx() or loadxxx() to use values that come from the device.

realtimeclock→describe()realtimeclock.describe()realtimeclock.describe()realtimeclock→describe()[realtimeclock describe]realtimeclock.describe()realtimeclock.describe()realtimeclock.describe()realtimeclock.describe()realtimeclock.describe()realtimeclock→describe()realtimeclock.describe()

Returns a short text that describes unambiguously the instance of the clock in the form TYPE(NAME)=SERIAL.FUNCTIONID.

js
function describe()
nodejs
function describe()
cpp
string describe()
m
-(NSString*) describe
pas
function describe(): string
vb
function describe() As String
cs
string describe()
java
String describe()
py
def describe()
php
function describe()
ecmascript
function describe()

More precisely, TYPE is the type of the function, NAME it the name used for the first access to the function, SERIAL is the serial number of the module if the module is connected or "unresolved", and FUNCTIONID is the hardware identifier of the function if the module is connected. For example, this method returns Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1 if the module is already connected or Relay(BadCustomeName.relay1)=unresolved if the module has not yet been connected. This method does not trigger any USB or TCP transaction and can therefore be used in a debugger.

Returns :

a string that describes the clock (ex: Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1)

realtimeclock→get_advertisedValue()
realtimeclock→advertisedValue()
realtimeclock.get_advertisedValue()realtimeclock.get_advertisedValue()realtimeclock→get_advertisedValue()[realtimeclock advertisedValue]realtimeclock.get_advertisedValue()realtimeclock.get_advertisedValue()realtimeclock.get_advertisedValue()realtimeclock.get_advertisedValue()realtimeclock.get_advertisedValue()realtimeclock→get_advertisedValue()realtimeclock.get_advertisedValue()YRealTimeClock get_advertisedValue

Returns the current value of the clock (no more than 6 characters).

js
function get_advertisedValue()
nodejs
function get_advertisedValue()
cpp
string get_advertisedValue()
m
-(NSString*) advertisedValue
pas
function get_advertisedValue(): string
vb
function get_advertisedValue() As String
cs
string get_advertisedValue()
java
String get_advertisedValue()
py
def get_advertisedValue()
php
function get_advertisedValue()
ecmascript
function get_advertisedValue()
cmd
YRealTimeClock target get_advertisedValue

Returns :

a string corresponding to the current value of the clock (no more than 6 characters).

On failure, throws an exception or returns Y_ADVERTISEDVALUE_INVALID.

realtimeclock→get_dateTime()
realtimeclock→dateTime()
realtimeclock.get_dateTime()realtimeclock.get_dateTime()realtimeclock→get_dateTime()[realtimeclock dateTime]realtimeclock.get_dateTime()realtimeclock.get_dateTime()realtimeclock.get_dateTime()realtimeclock.get_dateTime()realtimeclock.get_dateTime()realtimeclock→get_dateTime()realtimeclock.get_dateTime()

Returns the current time in the form "YYYY/MM/DD hh:mm:ss"

js
function get_dateTime()
nodejs
function get_dateTime()
cpp
string get_dateTime()
m
-(NSString*) dateTime
pas
function get_dateTime(): string
vb
function get_dateTime() As String
cs
string get_dateTime()
java
String get_dateTime()
py
def get_dateTime()
php
function get_dateTime()
ecmascript
function get_dateTime()

Returns :

a string corresponding to the current time in the form "YYYY/MM/DD hh:mm:ss"

On failure, throws an exception or returns Y_DATETIME_INVALID.

realtimeclock→get_errorMessage()
realtimeclock→errorMessage()
realtimeclock.get_errorMessage()realtimeclock.get_errorMessage()realtimeclock→get_errorMessage()[realtimeclock errorMessage]realtimeclock.get_errorMessage()realtimeclock.get_errorMessage()realtimeclock.get_errorMessage()realtimeclock.get_errorMessage()realtimeclock.get_errorMessage()realtimeclock→get_errorMessage()realtimeclock.get_errorMessage()

Returns the error message of the latest error with the clock.

js
function get_errorMessage()
nodejs
function get_errorMessage()
cpp
string get_errorMessage()
m
-(NSString*) errorMessage
pas
function get_errorMessage(): string
vb
function get_errorMessage() As String
cs
string get_errorMessage()
java
String get_errorMessage()
py
def get_errorMessage()
php
function get_errorMessage()
ecmascript
function get_errorMessage()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a string corresponding to the latest error message that occured while using the clock object

realtimeclock→get_errorType()
realtimeclock→errorType()
realtimeclock.get_errorType()realtimeclock.get_errorType()realtimeclock→get_errorType()realtimeclock.get_errorType()realtimeclock.get_errorType()realtimeclock.get_errorType()realtimeclock.get_errorType()realtimeclock.get_errorType()realtimeclock→get_errorType()realtimeclock.get_errorType()

Returns the numerical error code of the latest error with the clock.

js
function get_errorType()
nodejs
function get_errorType()
cpp
YRETCODE get_errorType()
pas
function get_errorType(): YRETCODE
vb
function get_errorType() As YRETCODE
cs
YRETCODE get_errorType()
java
int get_errorType()
py
def get_errorType()
php
function get_errorType()
ecmascript
function get_errorType()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a number corresponding to the code of the latest error that occurred while using the clock object

realtimeclock→get_friendlyName()
realtimeclock→friendlyName()
realtimeclock.get_friendlyName()realtimeclock.get_friendlyName()realtimeclock→get_friendlyName()[realtimeclock friendlyName]realtimeclock.get_friendlyName()realtimeclock.get_friendlyName()realtimeclock.get_friendlyName()realtimeclock→get_friendlyName()realtimeclock.get_friendlyName()

Returns a global identifier of the clock in the format MODULE_NAME.FUNCTION_NAME.

js
function get_friendlyName()
nodejs
function get_friendlyName()
cpp
string get_friendlyName()
m
-(NSString*) friendlyName
cs
string get_friendlyName()
java
String get_friendlyName()
py
def get_friendlyName()
php
function get_friendlyName()
ecmascript
function get_friendlyName()

The returned string uses the logical names of the module and of the clock if they are defined, otherwise the serial number of the module and the hardware identifier of the clock (for example: MyCustomName.relay1)

Returns :

a string that uniquely identifies the clock using logical names (ex: MyCustomName.relay1)

On failure, throws an exception or returns Y_FRIENDLYNAME_INVALID.

realtimeclock→get_functionDescriptor()
realtimeclock→functionDescriptor()
realtimeclock.get_functionDescriptor()realtimeclock.get_functionDescriptor()realtimeclock→get_functionDescriptor()[realtimeclock functionDescriptor]realtimeclock.get_functionDescriptor()realtimeclock.get_functionDescriptor()realtimeclock.get_functionDescriptor()realtimeclock.get_functionDescriptor()realtimeclock.get_functionDescriptor()realtimeclock→get_functionDescriptor()realtimeclock.get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

js
function get_functionDescriptor()
nodejs
function get_functionDescriptor()
cpp
YFUN_DESCR get_functionDescriptor()
m
-(YFUN_DESCR) functionDescriptor
pas
function get_functionDescriptor(): YFUN_DESCR
vb
function get_functionDescriptor() As YFUN_DESCR
cs
YFUN_DESCR get_functionDescriptor()
java
String get_functionDescriptor()
py
def get_functionDescriptor()
php
function get_functionDescriptor()
ecmascript
function get_functionDescriptor()

This identifier can be used to test if two instances of YFunction reference the same physical function on the same physical device.

Returns :

an identifier of type YFUN_DESCR.

If the function has never been contacted, the returned value is Y_FUNCTIONDESCRIPTOR_INVALID.

realtimeclock→get_functionId()
realtimeclock→functionId()
realtimeclock.get_functionId()realtimeclock.get_functionId()realtimeclock→get_functionId()[realtimeclock functionId]realtimeclock.get_functionId()realtimeclock.get_functionId()realtimeclock.get_functionId()realtimeclock.get_functionId()realtimeclock→get_functionId()realtimeclock.get_functionId()

Returns the hardware identifier of the clock, without reference to the module.

js
function get_functionId()
nodejs
function get_functionId()
cpp
string get_functionId()
m
-(NSString*) functionId
vb
function get_functionId() As String
cs
string get_functionId()
java
String get_functionId()
py
def get_functionId()
php
function get_functionId()
ecmascript
function get_functionId()

For example relay1

Returns :

a string that identifies the clock (ex: relay1)

On failure, throws an exception or returns Y_FUNCTIONID_INVALID.

realtimeclock→get_hardwareId()
realtimeclock→hardwareId()
realtimeclock.get_hardwareId()realtimeclock.get_hardwareId()realtimeclock→get_hardwareId()[realtimeclock hardwareId]realtimeclock.get_hardwareId()realtimeclock.get_hardwareId()realtimeclock.get_hardwareId()realtimeclock.get_hardwareId()realtimeclock→get_hardwareId()realtimeclock.get_hardwareId()

Returns the unique hardware identifier of the clock in the form SERIAL.FUNCTIONID.

js
function get_hardwareId()
nodejs
function get_hardwareId()
cpp
string get_hardwareId()
m
-(NSString*) hardwareId
vb
function get_hardwareId() As String
cs
string get_hardwareId()
java
String get_hardwareId()
py
def get_hardwareId()
php
function get_hardwareId()
ecmascript
function get_hardwareId()

The unique hardware identifier is composed of the device serial number and of the hardware identifier of the clock (for example RELAYLO1-123456.relay1).

Returns :

a string that uniquely identifies the clock (ex: RELAYLO1-123456.relay1)

On failure, throws an exception or returns Y_HARDWAREID_INVALID.

realtimeclock→get_logicalName()
realtimeclock→logicalName()
realtimeclock.get_logicalName()realtimeclock.get_logicalName()realtimeclock→get_logicalName()[realtimeclock logicalName]realtimeclock.get_logicalName()realtimeclock.get_logicalName()realtimeclock.get_logicalName()realtimeclock.get_logicalName()realtimeclock.get_logicalName()realtimeclock→get_logicalName()realtimeclock.get_logicalName()YRealTimeClock get_logicalName

Returns the logical name of the clock.

js
function get_logicalName()
nodejs
function get_logicalName()
cpp
string get_logicalName()
m
-(NSString*) logicalName
pas
function get_logicalName(): string
vb
function get_logicalName() As String
cs
string get_logicalName()
java
String get_logicalName()
py
def get_logicalName()
php
function get_logicalName()
ecmascript
function get_logicalName()
cmd
YRealTimeClock target get_logicalName

Returns :

a string corresponding to the logical name of the clock.

On failure, throws an exception or returns Y_LOGICALNAME_INVALID.

realtimeclock→get_module()
realtimeclock→module()
realtimeclock.get_module()realtimeclock.get_module()realtimeclock→get_module()[realtimeclock module]realtimeclock.get_module()realtimeclock.get_module()realtimeclock.get_module()realtimeclock.get_module()realtimeclock.get_module()realtimeclock→get_module()realtimeclock.get_module()

Gets the YModule object for the device on which the function is located.

js
function get_module()
nodejs
function get_module()
cpp
YModule * get_module()
m
-(YModule*) module
pas
function get_module(): TYModule
vb
function get_module() As YModule
cs
YModule get_module()
java
YModule get_module()
py
def get_module()
php
function get_module()
ecmascript
function get_module()

If the function cannot be located on any module, the returned instance of YModule is not shown as on-line.

Returns :

an instance of YModule

realtimeclock→get_module_async()
realtimeclock→module_async()
realtimeclock.get_module_async()realtimeclock.get_module_async()

Gets the YModule object for the device on which the function is located (asynchronous version).

js
function get_module_async(callback, context)
nodejs
function get_module_async(callback, context)

If the function cannot be located on any module, the returned YModule object does not show as on-line.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking Firefox javascript VM that does not implement context switching during blocking I/O calls. See the documentation section on asynchronous Javascript calls for more details.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the requested YModule object
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

realtimeclock→get_timeSet()
realtimeclock→timeSet()
realtimeclock.get_timeSet()realtimeclock.get_timeSet()realtimeclock→get_timeSet()[realtimeclock timeSet]realtimeclock.get_timeSet()realtimeclock.get_timeSet()realtimeclock.get_timeSet()realtimeclock.get_timeSet()realtimeclock.get_timeSet()realtimeclock→get_timeSet()realtimeclock.get_timeSet()YRealTimeClock get_timeSet

Returns true if the clock has been set, and false otherwise.

js
function get_timeSet()
nodejs
function get_timeSet()
cpp
Y_TIMESET_enum get_timeSet()
m
-(Y_TIMESET_enum) timeSet
pas
function get_timeSet(): Integer
vb
function get_timeSet() As Integer
cs
int get_timeSet()
java
int get_timeSet()
py
def get_timeSet()
php
function get_timeSet()
ecmascript
function get_timeSet()
cmd
YRealTimeClock target get_timeSet

Returns :

either Y_TIMESET_FALSE or Y_TIMESET_TRUE, according to true if the clock has been set, and false otherwise

On failure, throws an exception or returns Y_TIMESET_INVALID.

realtimeclock→get_unixTime()
realtimeclock→unixTime()
realtimeclock.get_unixTime()realtimeclock.get_unixTime()realtimeclock→get_unixTime()[realtimeclock unixTime]realtimeclock.get_unixTime()realtimeclock.get_unixTime()realtimeclock.get_unixTime()realtimeclock.get_unixTime()realtimeclock.get_unixTime()realtimeclock→get_unixTime()realtimeclock.get_unixTime()YRealTimeClock get_unixTime

Returns the current time in Unix format (number of elapsed seconds since Jan 1st, 1970).

js
function get_unixTime()
nodejs
function get_unixTime()
cpp
s64 get_unixTime()
m
-(s64) unixTime
pas
function get_unixTime(): int64
vb
function get_unixTime() As Long
cs
long get_unixTime()
java
long get_unixTime()
py
def get_unixTime()
php
function get_unixTime()
ecmascript
function get_unixTime()
cmd
YRealTimeClock target get_unixTime

Returns :

an integer corresponding to the current time in Unix format (number of elapsed seconds since Jan 1st, 1970)

On failure, throws an exception or returns Y_UNIXTIME_INVALID.

realtimeclock→get_userData()
realtimeclock→userData()
realtimeclock.get_userData()realtimeclock.get_userData()realtimeclock→get_userData()[realtimeclock userData]realtimeclock.get_userData()realtimeclock.get_userData()realtimeclock.get_userData()realtimeclock.get_userData()realtimeclock.get_userData()realtimeclock→get_userData()realtimeclock.get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

js
function get_userData()
nodejs
function get_userData()
cpp
void * get_userData()
m
-(id) userData
pas
function get_userData(): Tobject
vb
function get_userData() As Object
cs
object get_userData()
java
Object get_userData()
py
def get_userData()
php
function get_userData()
ecmascript
function get_userData()

This attribute is never touched directly by the API, and is at disposal of the caller to store a context.

Returns :

the object stored previously by the caller.

realtimeclock→get_utcOffset()
realtimeclock→utcOffset()
realtimeclock.get_utcOffset()realtimeclock.get_utcOffset()realtimeclock→get_utcOffset()[realtimeclock utcOffset]realtimeclock.get_utcOffset()realtimeclock.get_utcOffset()realtimeclock.get_utcOffset()realtimeclock.get_utcOffset()realtimeclock.get_utcOffset()realtimeclock→get_utcOffset()realtimeclock.get_utcOffset()YRealTimeClock get_utcOffset

Returns the number of seconds between current time and UTC time (time zone).

js
function get_utcOffset()
nodejs
function get_utcOffset()
cpp
int get_utcOffset()
m
-(int) utcOffset
pas
function get_utcOffset(): LongInt
vb
function get_utcOffset() As Integer
cs
int get_utcOffset()
java
int get_utcOffset()
py
def get_utcOffset()
php
function get_utcOffset()
ecmascript
function get_utcOffset()
cmd
YRealTimeClock target get_utcOffset

Returns :

an integer corresponding to the number of seconds between current time and UTC time (time zone)

On failure, throws an exception or returns Y_UTCOFFSET_INVALID.

realtimeclock→isOnline()realtimeclock.isOnline()realtimeclock.isOnline()realtimeclock→isOnline()[realtimeclock isOnline]realtimeclock.isOnline()realtimeclock.isOnline()realtimeclock.isOnline()realtimeclock.isOnline()realtimeclock.isOnline()realtimeclock→isOnline()realtimeclock.isOnline()

Checks if the clock is currently reachable, without raising any error.

js
function isOnline()
nodejs
function isOnline()
cpp
bool isOnline()
m
-(BOOL) isOnline
pas
function isOnline(): boolean
vb
function isOnline() As Boolean
cs
bool isOnline()
java
boolean isOnline()
py
def isOnline()
php
function isOnline()
ecmascript
function isOnline()

If there is a cached value for the clock in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the clock.

Returns :

true if the clock can be reached, and false otherwise

realtimeclock→isOnline_async()realtimeclock.isOnline_async()realtimeclock.isOnline_async()

Checks if the clock is currently reachable, without raising any error (asynchronous version).

js
function isOnline_async(callback, context)
nodejs
function isOnline_async(callback, context)

If there is a cached value for the clock in cache, that has not yet expired, the device is considered reachable. No exception is raised if there is an error while trying to contact the device hosting the requested function.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the boolean result
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

realtimeclock→load()realtimeclock.load()realtimeclock.load()realtimeclock→load()[realtimeclock load: ]realtimeclock.load()realtimeclock.load()realtimeclock.load()realtimeclock.load()realtimeclock.load()realtimeclock→load()realtimeclock.load()

Preloads the clock cache with a specified validity duration.

js
function load(msValidity)
nodejs
function load(msValidity)
cpp
YRETCODE load(int msValidity)
m
-(YRETCODE) load: (int) msValidity
pas
function load(msValidity: integer): YRETCODE
vb
function load(ByVal msValidity As Integer) As YRETCODE
cs
YRETCODE load(ulong msValidity)
java
int load(long msValidity)
py
def load(msValidity)
php
function load($msValidity)
ecmascript
function load(msValidity)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network traffic for instance.

Parameters :

msValidityan integer corresponding to the validity attributed to the loaded function parameters, in milliseconds

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

realtimeclock→load_async()realtimeclock.load_async()realtimeclock.load_async()

Preloads the clock cache with a specified validity duration (asynchronous version).

js
function load_async(msValidity, callback, context)
nodejs
function load_async(msValidity, callback, context)

By default, whenever accessing a device, all function attributes are kept in cache for the standard duration (5 ms). This method can be used to temporarily mark the cache as valid for a longer period, in order to reduce network trafic for instance.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking the Javascript virtual machine.

Parameters :

msValidityan integer corresponding to the validity of the loaded function parameters, in milliseconds
callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the error code (or YAPI_SUCCESS)
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

realtimeclock→muteValueCallbacks()realtimeclock.muteValueCallbacks()realtimeclock.muteValueCallbacks()realtimeclock→muteValueCallbacks()[realtimeclock muteValueCallbacks]realtimeclock.muteValueCallbacks()realtimeclock.muteValueCallbacks()realtimeclock.muteValueCallbacks()realtimeclock.muteValueCallbacks()realtimeclock.muteValueCallbacks()realtimeclock→muteValueCallbacks()realtimeclock.muteValueCallbacks()YRealTimeClock muteValueCallbacks

Disable the propagation of every new advertised value to the parent hub.

js
function muteValueCallbacks()
nodejs
function muteValueCallbacks()
cpp
int muteValueCallbacks()
m
-(int) muteValueCallbacks
pas
function muteValueCallbacks(): LongInt
vb
function muteValueCallbacks() As Integer
cs
int muteValueCallbacks()
java
int muteValueCallbacks()
py
def muteValueCallbacks()
php
function muteValueCallbacks()
ecmascript
function muteValueCallbacks()
cmd
YRealTimeClock target muteValueCallbacks

You can use this function to save bandwidth and CPU on computers with limited resources, or to prevent unwanted invocations of the HTTP callback. Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

realtimeclock→nextRealTimeClock()realtimeclock.nextRealTimeClock()realtimeclock.nextRealTimeClock()realtimeclock→nextRealTimeClock()[realtimeclock nextRealTimeClock]realtimeclock.nextRealTimeClock()realtimeclock.nextRealTimeClock()realtimeclock.nextRealTimeClock()realtimeclock.nextRealTimeClock()realtimeclock.nextRealTimeClock()realtimeclock→nextRealTimeClock()realtimeclock.nextRealTimeClock()

Continues the enumeration of clocks started using yFirstRealTimeClock().

js
function nextRealTimeClock()
nodejs
function nextRealTimeClock()
cpp
YRealTimeClock * nextRealTimeClock()
m
-(YRealTimeClock*) nextRealTimeClock
pas
function nextRealTimeClock(): TYRealTimeClock
vb
function nextRealTimeClock() As YRealTimeClock
cs
YRealTimeClock nextRealTimeClock()
java
YRealTimeClock nextRealTimeClock()
py
def nextRealTimeClock()
php
function nextRealTimeClock()
ecmascript
function nextRealTimeClock()

Returns :

a pointer to a YRealTimeClock object, corresponding to a clock currently online, or a null pointer if there are no more clocks to enumerate.

realtimeclock→registerValueCallback()realtimeclock.registerValueCallback()realtimeclock.registerValueCallback()realtimeclock→registerValueCallback()[realtimeclock registerValueCallback: ]realtimeclock.registerValueCallback()realtimeclock.registerValueCallback()realtimeclock.registerValueCallback()realtimeclock.registerValueCallback()realtimeclock.registerValueCallback()realtimeclock→registerValueCallback()realtimeclock.registerValueCallback()

Registers the callback function that is invoked on every change of advertised value.

js
function registerValueCallback(callback)
nodejs
function registerValueCallback(callback)
cpp
int registerValueCallback(YRealTimeClockValueCallback callback)
m
-(int) registerValueCallback: (YRealTimeClockValueCallback) callback
pas
function registerValueCallback(callback: TYRealTimeClockValueCallback): LongInt
vb
function registerValueCallback() As Integer
cs
int registerValueCallback(ValueCallback callback)
java
int registerValueCallback(UpdateCallback callback)
py
def registerValueCallback(callback)
php
function registerValueCallback($callback)
ecmascript
function registerValueCallback(callback)

The callback is invoked only during the execution of ySleep or yHandleEvents. This provides control over the time when the callback is triggered. For good responsiveness, remember to call one of these two functions periodically. To unregister a callback, pass a null pointer as argument.

Parameters :

callbackthe callback function to call, or a null pointer. The callback function should take two arguments: the function object of which the value has changed, and the character string describing the new advertised value.

realtimeclock→set_logicalName()
realtimeclock→setLogicalName()
realtimeclock.set_logicalName()realtimeclock.set_logicalName()realtimeclock→set_logicalName()[realtimeclock setLogicalName: ]realtimeclock.set_logicalName()realtimeclock.set_logicalName()realtimeclock.set_logicalName()realtimeclock.set_logicalName()realtimeclock.set_logicalName()realtimeclock→set_logicalName()realtimeclock.set_logicalName()YRealTimeClock set_logicalName

Changes the logical name of the clock.

js
function set_logicalName(newval)
nodejs
function set_logicalName(newval)
cpp
int set_logicalName(const string& newval)
m
-(int) setLogicalName: (NSString*) newval
pas
function set_logicalName(newval: string): integer
vb
function set_logicalName(ByVal newval As String) As Integer
cs
int set_logicalName(string newval)
java
int set_logicalName(String newval)
py
def set_logicalName(newval)
php
function set_logicalName($newval)
ecmascript
function set_logicalName(newval)
cmd
YRealTimeClock target set_logicalName newval

You can use yCheckLogicalName() prior to this call to make sure that your parameter is valid. Remember to call the saveToFlash() method of the module if the modification must be kept.

Parameters :

newvala string corresponding to the logical name of the clock.

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

realtimeclock→set_unixTime()
realtimeclock→setUnixTime()
realtimeclock.set_unixTime()realtimeclock.set_unixTime()realtimeclock→set_unixTime()[realtimeclock setUnixTime: ]realtimeclock.set_unixTime()realtimeclock.set_unixTime()realtimeclock.set_unixTime()realtimeclock.set_unixTime()realtimeclock.set_unixTime()realtimeclock→set_unixTime()realtimeclock.set_unixTime()YRealTimeClock set_unixTime

Changes the current time.

js
function set_unixTime(newval)
nodejs
function set_unixTime(newval)
cpp
int set_unixTime(s64 newval)
m
-(int) setUnixTime: (s64) newval
pas
function set_unixTime(newval: int64): integer
vb
function set_unixTime(ByVal newval As Long) As Integer
cs
int set_unixTime(long newval)
java
int set_unixTime(long newval)
py
def set_unixTime(newval)
php
function set_unixTime($newval)
ecmascript
function set_unixTime(newval)
cmd
YRealTimeClock target set_unixTime newval

Time is specifid in Unix format (number of elapsed seconds since Jan 1st, 1970).

Parameters :

newvalan integer corresponding to the current time

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

realtimeclock→set_userData()
realtimeclock→setUserData()
realtimeclock.set_userData()realtimeclock.set_userData()realtimeclock→set_userData()[realtimeclock setUserData: ]realtimeclock.set_userData()realtimeclock.set_userData()realtimeclock.set_userData()realtimeclock.set_userData()realtimeclock.set_userData()realtimeclock→set_userData()realtimeclock.set_userData()

Stores a user context provided as argument in the userData attribute of the function.

js
function set_userData(data)
nodejs
function set_userData(data)
cpp
void set_userData(void* data)
m
-(void) setUserData: (id) data
pas
procedure set_userData(data: Tobject)
vb
procedure set_userData(ByVal data As Object)
cs
void set_userData(object data)
java
void set_userData(Object data)
py
def set_userData(data)
php
function set_userData($data)
ecmascript
function set_userData(data)

This attribute is never touched by the API, and is at disposal of the caller to store a context.

Parameters :

dataany kind of object to be stored

realtimeclock→set_utcOffset()
realtimeclock→setUtcOffset()
realtimeclock.set_utcOffset()realtimeclock.set_utcOffset()realtimeclock→set_utcOffset()[realtimeclock setUtcOffset: ]realtimeclock.set_utcOffset()realtimeclock.set_utcOffset()realtimeclock.set_utcOffset()realtimeclock.set_utcOffset()realtimeclock.set_utcOffset()realtimeclock→set_utcOffset()realtimeclock.set_utcOffset()YRealTimeClock set_utcOffset

Changes the number of seconds between current time and UTC time (time zone).

js
function set_utcOffset(newval)
nodejs
function set_utcOffset(newval)
cpp
int set_utcOffset(int newval)
m
-(int) setUtcOffset: (int) newval
pas
function set_utcOffset(newval: LongInt): integer
vb
function set_utcOffset(ByVal newval As Integer) As Integer
cs
int set_utcOffset(int newval)
java
int set_utcOffset(int newval)
py
def set_utcOffset(newval)
php
function set_utcOffset($newval)
ecmascript
function set_utcOffset(newval)
cmd
YRealTimeClock target set_utcOffset newval

The timezone is automatically rounded to the nearest multiple of 15 minutes.

Parameters :

newvalan integer corresponding to the number of seconds between current time and UTC time (time zone)

Returns :

YAPI_SUCCESS if the call succeeds.

On failure, throws an exception or returns a negative error code.

realtimeclock→unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()realtimeclock→unmuteValueCallbacks()[realtimeclock unmuteValueCallbacks]realtimeclock.unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()realtimeclock→unmuteValueCallbacks()realtimeclock.unmuteValueCallbacks()YRealTimeClock unmuteValueCallbacks

Re-enable the propagation of every new advertised value to the parent hub.

js
function unmuteValueCallbacks()
nodejs
function unmuteValueCallbacks()
cpp
int unmuteValueCallbacks()
m
-(int) unmuteValueCallbacks
pas
function unmuteValueCallbacks(): LongInt
vb
function unmuteValueCallbacks() As Integer
cs
int unmuteValueCallbacks()
java
int unmuteValueCallbacks()
py
def unmuteValueCallbacks()
php
function unmuteValueCallbacks()
ecmascript
function unmuteValueCallbacks()
cmd
YRealTimeClock target unmuteValueCallbacks

This function reverts the effect of a previous call to muteValueCallbacks(). Remember to call the saveToFlash() method of the module if the modification must be kept.

Returns :

YAPI_SUCCESS when the call succeeds.

On failure, throws an exception or returns a negative error code.

realtimeclock→wait_async()realtimeclock.wait_async()realtimeclock.wait_async()realtimeclock.wait_async()

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

js
function wait_async(callback, context)
nodejs
function wait_async(callback, context)
ecmascript
function wait_async(callback, context, null)

The callback function can therefore freely issue synchronous or asynchronous commands, without risking to block the Javascript VM.

Parameters :

callbackcallback function that is invoked when all pending commands on the module are completed. The callback function receives two arguments: the caller-specific context object and the receiving function object.
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing.

8.6. WakeUpMonitor function interface

The WakeUpMonitor function handles globally all wake-up sources, as well as automated sleep mode.

In order to use the functions described here, you should include:

js
<script type='text/javascript' src='yocto_wakeupmonitor.js'></script>
nodejs
var yoctolib = require('yoctolib');
var YWakeUpMonitor = yoctolib.YWakeUpMonitor;
cpp
#include "yocto_wakeupmonitor.h"
m
#import "yocto_wakeupmonitor.h"
pas
uses yocto_wakeupmonitor;
vb
yocto_wakeupmonitor.vb
cs
yocto_wakeupmonitor.cs
java
import com.yoctopuce.YoctoAPI.YWakeUpMonitor;
py
from yocto_wakeupmonitor import *
php
require_once('yocto_wakeupmonitor.php');
ecmascript
import { YWakeUpMonitor } from 'yoctolib-es'
Global functions
yFindWakeUpMonitor(func)

Retrieves a monitor for a given identifier.

yFindWakeUpMonitorInContext(yctx, func)

Retrieves a monitor for a given identifier in a YAPI context.

yFirstWakeUpMonitor()

Starts the enumeration of monitors currently accessible.

yFirstWakeUpMonitorInContext(yctx)

Starts the enumeration of monitors currently accessible.

YWakeUpMonitor methods
wakeupmonitor→clearCache()

Invalidates the cache.

wakeupmonitor→describe()

Returns a short text that describes unambiguously the instance of the monitor in the form TYPE(NAME)=SERIAL.FUNCTIONID.

wakeupmonitor→get_advertisedValue()

Returns the current value of the monitor (no more than 6 characters).

wakeupmonitor→get_errorMessage()

Returns the error message of the latest error with the monitor.

wakeupmonitor→get_errorType()

Returns the numerical error code of the latest error with the monitor.

wakeupmonitor→get_friendlyName()

Returns a global identifier of the monitor in the format MODULE_NAME.FUNCTION_NAME.

wakeupmonitor→get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

wakeupmonitor→get_functionId()

Returns the hardware identifier of the monitor, without reference to the module.

wakeupmonitor→get_hardwareId()

Returns the unique hardware identifier of the monitor in the form SERIAL.FUNCTIONID.

wakeupmonitor→get_logicalName()

Returns the logical name of the monitor.

wakeupmonitor→get_module()

Gets the YModule object for the device on which the function is located.

wakeupmonitor→get_module_async(callback, context)

Gets the YModule object for the device on which the function is located (asynchronous version).

wakeupmonitor→get_nextWakeUp()

Returns the next scheduled wake up date/time (UNIX format)

wakeupmonitor→get_powerDuration()

Returns the maximal wake up time (in seconds) before automatically going to sleep.

wakeupmonitor→get_sleepCountdown()

Returns the delay before the next sleep period.

wakeupmonitor→get_userData()

Returns the value of the userData attribute, as previously stored using method set_userData.

wakeupmonitor→get_wakeUpReason()

Returns the latest wake up reason.

wakeupmonitor→get_wakeUpState()

Returns the current state of the monitor

wakeupmonitor→isOnline()

Checks if the monitor is currently reachable, without raising any error.

wakeupmonitor→isOnline_async(callback, context)

Checks if the monitor is currently reachable, without raising any error (asynchronous version).

wakeupmonitor→load(msValidity)

Preloads the monitor cache with a specified validity duration.

wakeupmonitor→load_async(msValidity, callback, context)

Preloads the monitor cache with a specified validity duration (asynchronous version).

wakeupmonitor→muteValueCallbacks()

Disable the propagation of every new advertised value to the parent hub.

wakeupmonitor→nextWakeUpMonitor()

Continues the enumeration of monitors started using yFirstWakeUpMonitor().

wakeupmonitor→registerValueCallback(callback)

Registers the callback function that is invoked on every change of advertised value.

wakeupmonitor→resetSleepCountDown()

Resets the sleep countdown.

wakeupmonitor→set_logicalName(newval)

Changes the logical name of the monitor.

wakeupmonitor→set_nextWakeUp(newval)

Changes the days of the week when a wake up must take place.

wakeupmonitor→set_powerDuration(newval)

Changes the maximal wake up time (seconds) before automatically going to sleep.

wakeupmonitor→set_sleepCountdown(newval)

Changes the delay before the next sleep period.

wakeupmonitor→set_userData(data)

Stores a user context provided as argument in the userData attribute of the function.

wakeupmonitor→sleep(secBeforeSleep)

Goes to sleep until the next wake up condition is met, the RTC time must have been set before calling this function.

wakeupmonitor→sleepFor(secUntilWakeUp, secBeforeSleep)

Goes to sleep for a specific duration or until the next wake up condition is met, the RTC time must have been set before calling this function.

wakeupmonitor→sleepUntil(wakeUpTime, secBeforeSleep)

Go to sleep until a specific date is reached or until the next wake up condition is met, the RTC time must have been set before calling this function.

wakeupmonitor→unmuteValueCallbacks()

Re-enable the propagation of every new advertised value to the parent hub.

wakeupmonitor→wait_async(callback, context)

Waits for all pending asynchronous commands on the module to complete, and invoke the user-provided callback function.

wakeupmonitor→wakeUp()

Forces a wake up.

YWakeUpMonitor.FindWakeUpMonitor()
yFindWakeUpMonitor()
yFindWakeUpMonitor()YWakeUpMonitor.FindWakeUpMonitor()yFindWakeUpMonitor()[YWakeUpMonitor FindWakeUpMonitor: ]yFindWakeUpMonitor()yFindWakeUpMonitor()YWakeUpMonitor.FindWakeUpMonitor()YWakeUpMonitor.FindWakeUpMonitor()YWakeUpMonitor.FindWakeUpMonitor()yFindWakeUpMonitor()YWakeUpMonitor.FindWakeUpMonitor()

Retrieves a monitor for a given identifier.

js
function yFindWakeUpMonitor(func)
nodejs
function FindWakeUpMonitor(func)
cpp
YWakeUpMonitor* yFindWakeUpMonitor(const string& func)
m
+(YWakeUpMonitor*) FindWakeUpMonitor:(NSString*) func
pas
function yFindWakeUpMonitor(func: string): TYWakeUpMonitor
vb
function yFindWakeUpMonitor(ByVal func As String) As YWakeUpMonitor
cs
YWakeUpMonitor FindWakeUpMonitor(string func)
java
YWakeUpMonitor FindWakeUpMonitor(String func)
py
def FindWakeUpMonitor(func)
php
function yFindWakeUpMonitor($func)
ecmascript
function FindWakeUpMonitor(func)

The identifier can be specified using several formats:

This function does not require that the monitor is online at the time it is invoked. The returned object is nevertheless valid. Use the method YWakeUpMonitor.isOnline() to test if the monitor is indeed online at a given time. In case of ambiguity when looking for a monitor by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

funca string that uniquely characterizes the monitor

Returns :

a YWakeUpMonitor object allowing you to drive the monitor.

YWakeUpMonitor.FindWakeUpMonitorInContext()
yFindWakeUpMonitorInContext()
YWakeUpMonitor.FindWakeUpMonitorInContext()YWakeUpMonitor.FindWakeUpMonitorInContext()

Retrieves a monitor for a given identifier in a YAPI context.

java
YWakeUpMonitor FindWakeUpMonitorInContext(YAPIContext yctx,
  String func)
ecmascript
function FindWakeUpMonitorInContext(yctx, func)

The identifier can be specified using several formats:

This function does not require that the monitor is online at the time it is invoked. The returned object is nevertheless valid. Use the method YWakeUpMonitor.isOnline() to test if the monitor is indeed online at a given time. In case of ambiguity when looking for a monitor by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

Parameters :

yctxa YAPI context
funca string that uniquely characterizes the monitor

Returns :

a YWakeUpMonitor object allowing you to drive the monitor.

YWakeUpMonitor.FirstWakeUpMonitor()
yFirstWakeUpMonitor()
yFirstWakeUpMonitor()YWakeUpMonitor.FirstWakeUpMonitor()yFirstWakeUpMonitor()[YWakeUpMonitor FirstWakeUpMonitor]yFirstWakeUpMonitor()yFirstWakeUpMonitor()YWakeUpMonitor.FirstWakeUpMonitor()YWakeUpMonitor.FirstWakeUpMonitor()YWakeUpMonitor.FirstWakeUpMonitor()yFirstWakeUpMonitor()YWakeUpMonitor.FirstWakeUpMonitor()

Starts the enumeration of monitors currently accessible.

js
function yFirstWakeUpMonitor()
nodejs
function FirstWakeUpMonitor()
cpp
YWakeUpMonitor* yFirstWakeUpMonitor()
m
+(YWakeUpMonitor*) FirstWakeUpMonitor
pas
function yFirstWakeUpMonitor(): TYWakeUpMonitor
vb
function yFirstWakeUpMonitor() As YWakeUpMonitor
cs
YWakeUpMonitor FirstWakeUpMonitor()
java
YWakeUpMonitor FirstWakeUpMonitor()
py
def FirstWakeUpMonitor()
php
function yFirstWakeUpMonitor()
ecmascript
function FirstWakeUpMonitor()

Use the method YWakeUpMonitor.nextWakeUpMonitor() to iterate on next monitors.

Returns :

a pointer to a YWakeUpMonitor object, corresponding to the first monitor currently online, or a null pointer if there are none.

YWakeUpMonitor.FirstWakeUpMonitorInContext()
yFirstWakeUpMonitorInContext()
YWakeUpMonitor.FirstWakeUpMonitorInContext()YWakeUpMonitor.FirstWakeUpMonitorInContext()

Starts the enumeration of monitors currently accessible.

java
YWakeUpMonitor FirstWakeUpMonitorInContext(YAPIContext yctx)
ecmascript
function FirstWakeUpMonitorInContext(yctx)

Use the method YWakeUpMonitor.nextWakeUpMonitor() to iterate on next monitors.

Parameters :

yctxa YAPI context.

Returns :

a pointer to a YWakeUpMonitor object, corresponding to the first monitor currently online, or a null pointer if there are none.

wakeupmonitor→clearCache()wakeupmonitor.clearCache()wakeupmonitor.clearCache()wakeupmonitor→clearCache()[wakeupmonitor clearCache]wakeupmonitor.clearCache()wakeupmonitor.clearCache()wakeupmonitor.clearCache()wakeupmonitor.clearCache()wakeupmonitor.clearCache()wakeupmonitor→clearCache()wakeupmonitor.clearCache()

Invalidates the cache.

js
function clearCache()
nodejs
function clearCache()
cpp
void clearCache()
m
-(void) clearCache
pas
procedure clearCache()
vb
procedure clearCache()
cs
void clearCache()
java
void clearCache()
py
def clearCache()
php
function clearCache()
ecmascript
function clearCache()

Invalidates the cache of the monitor attributes. Forces the next call to get_xxx() or loadxxx() to use values that come from the device.

wakeupmonitor→describe()wakeupmonitor.describe()wakeupmonitor.describe()wakeupmonitor→describe()[wakeupmonitor describe]wakeupmonitor.describe()wakeupmonitor.describe()wakeupmonitor.describe()wakeupmonitor.describe()wakeupmonitor.describe()wakeupmonitor→describe()wakeupmonitor.describe()

Returns a short text that describes unambiguously the instance of the monitor in the form TYPE(NAME)=SERIAL.FUNCTIONID.

js
function describe()
nodejs
function describe()
cpp
string describe()
m
-(NSString*) describe
pas
function describe(): string
vb
function describe() As String
cs
string describe()
java
String describe()
py
def describe()
php
function describe()
ecmascript
function describe()

More precisely, TYPE is the type of the function, NAME it the name used for the first access to the function, SERIAL is the serial number of the module if the module is connected or "unresolved", and FUNCTIONID is the hardware identifier of the function if the module is connected. For example, this method returns Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1 if the module is already connected or Relay(BadCustomeName.relay1)=unresolved if the module has not yet been connected. This method does not trigger any USB or TCP transaction and can therefore be used in a debugger.

Returns :

a string that describes the monitor (ex: Relay(MyCustomName.relay1)=RELAYLO1-123456.relay1)

wakeupmonitor→get_advertisedValue()
wakeupmonitor→advertisedValue()
wakeupmonitor.get_advertisedValue()wakeupmonitor.get_advertisedValue()wakeupmonitor→get_advertisedValue()[wakeupmonitor advertisedValue]wakeupmonitor.get_advertisedValue()wakeupmonitor.get_advertisedValue()wakeupmonitor.get_advertisedValue()wakeupmonitor.get_advertisedValue()wakeupmonitor.get_advertisedValue()wakeupmonitor→get_advertisedValue()wakeupmonitor.get_advertisedValue()YWakeUpMonitor get_advertisedValue

Returns the current value of the monitor (no more than 6 characters).

js
function get_advertisedValue()
nodejs
function get_advertisedValue()
cpp
string get_advertisedValue()
m
-(NSString*) advertisedValue
pas
function get_advertisedValue(): string
vb
function get_advertisedValue() As String
cs
string get_advertisedValue()
java
String get_advertisedValue()
py
def get_advertisedValue()
php
function get_advertisedValue()
ecmascript
function get_advertisedValue()
cmd
YWakeUpMonitor target get_advertisedValue

Returns :

a string corresponding to the current value of the monitor (no more than 6 characters).

On failure, throws an exception or returns Y_ADVERTISEDVALUE_INVALID.

wakeupmonitor→get_errorMessage()
wakeupmonitor→errorMessage()
wakeupmonitor.get_errorMessage()wakeupmonitor.get_errorMessage()wakeupmonitor→get_errorMessage()[wakeupmonitor errorMessage]wakeupmonitor.get_errorMessage()wakeupmonitor.get_errorMessage()wakeupmonitor.get_errorMessage()wakeupmonitor.get_errorMessage()wakeupmonitor.get_errorMessage()wakeupmonitor→get_errorMessage()wakeupmonitor.get_errorMessage()

Returns the error message of the latest error with the monitor.

js
function get_errorMessage()
nodejs
function get_errorMessage()
cpp
string get_errorMessage()
m
-(NSString*) errorMessage
pas
function get_errorMessage(): string
vb
function get_errorMessage() As String
cs
string get_errorMessage()
java
String get_errorMessage()
py
def get_errorMessage()
php
function get_errorMessage()
ecmascript
function get_errorMessage()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a string corresponding to the latest error message that occured while using the monitor object

wakeupmonitor→get_errorType()
wakeupmonitor→errorType()
wakeupmonitor.get_errorType()wakeupmonitor.get_errorType()wakeupmonitor→get_errorType()wakeupmonitor.get_errorType()wakeupmonitor.get_errorType()wakeupmonitor.get_errorType()wakeupmonitor.get_errorType()wakeupmonitor.get_errorType()wakeupmonitor→get_errorType()wakeupmonitor.get_errorType()

Returns the numerical error code of the latest error with the monitor.

js
function get_errorType()
nodejs
function get_errorType()
cpp
YRETCODE get_errorType()
pas
function get_errorType(): YRETCODE
vb
function get_errorType() As YRETCODE
cs
YRETCODE get_errorType()
java
int get_errorType()
py
def get_errorType()
php
function get_errorType()
ecmascript
function get_errorType()

This method is mostly useful when using the Yoctopuce library with exceptions disabled.

Returns :

a number corresponding to the code of the latest error that occurred while using the monitor object

wakeupmonitor→get_friendlyName()
wakeupmonitor→friendlyName()
wakeupmonitor.get_friendlyName()wakeupmonitor.get_friendlyName()wakeupmonitor→get_friendlyName()[wakeupmonitor friendlyName]wakeupmonitor.get_friendlyName()wakeupmonitor.get_friendlyName()wakeupmonitor.get_friendlyName()wakeupmonitor→get_friendlyName()wakeupmonitor.get_friendlyName()

Returns a global identifier of the monitor in the format MODULE_NAME.FUNCTION_NAME.

js
function get_friendlyName()
nodejs
function get_friendlyName()
cpp
string get_friendlyName()
m
-(NSString*) friendlyName
cs
string get_friendlyName()
java
String get_friendlyName()
py
def get_friendlyName()
php
function get_friendlyName()
ecmascript
function get_friendlyName()

The returned string uses the logical names of the module and of the monitor if they are defined, otherwise the serial number of the module and the hardware identifier of the monitor (for example: MyCustomName.relay1)

Returns :

a string that uniquely identifies the monitor using logical names (ex: MyCustomName.relay1)

On failure, throws an exception or returns Y_FRIENDLYNAME_INVALID.

wakeupmonitor→get_functionDescriptor()
wakeupmonitor→functionDescriptor()
wakeupmonitor.get_functionDescriptor()wakeupmonitor.get_functionDescriptor()wakeupmonitor→get_functionDescriptor()[wakeupmonitor functionDescriptor]wakeupmonitor.get_functionDescriptor()wakeupmonitor.get_functionDescriptor()wakeupmonitor.get_functionDescriptor()wakeupmonitor.get_functionDescriptor()wakeupmonitor.get_functionDescriptor()wakeupmonitor→get_functionDescriptor()wakeupmonitor.get_functionDescriptor()

Returns a unique identifier of type YFUN_DESCR corresponding to the function.

js
function get_functionDescriptor()
nodejs
function get_functionDescriptor()
cpp
YFUN_DESCR get_functionDescriptor()
m
-(YFUN_DESCR) functionDescriptor
pas
function get_functionDescriptor(): YFUN_DESCR
vb
function get_functionDescriptor() As YFUN_DESCR
cs
YFUN_DESCR get_functionDescriptor()
java
String get_functionDescriptor()
py
def get_functionDescriptor()
php
function get_functionDescriptor()
ecmascript
function get_functionDescriptor()

This identifier can be used to test if two instances of YFunction reference the same physical function on the same physical device.

Returns :

an identifier of type YFUN_DESCR.

If the function has never been contacted, the returned value is Y_FUNCTIONDESCRIPTOR_INVALID.

wakeupmonitor→get_functionId()
wakeupmonitor→functionId()
wakeupmonitor.get_functionId()wakeupmonitor.get_functionId()wakeupmonitor→get_functionId()[wakeupmonitor functionId]wakeupmonitor.get_functionId()wakeupmonitor.get_functionId()wakeupmonitor.get_functionId()wakeupmonitor.get_functionId()wakeupmonitor→get_functionId()wakeupmonitor.get_functionId()

Returns the hardware identifier of the monitor, without reference to the module.

js
function get_functionId()
nodejs
function get_functionId()
cpp
string get_functionId()
m
-(NSString*) functionId
vb
function get_functionId() As String
cs
string get_functionId()
java
String get_functionId()
py
def get_functionId()
php
function get_functionId()
ecmascript
function get_functionId()

For example relay1

Returns :

a string that identifies the monitor (ex: relay1)

On failure, throws an exception or returns Y_FUNCTIONID_INVALID.

wakeupmonitor→get_hardwareId()
wakeupmonitor→hardwareId()
wakeupmonitor.get_hardwareId()wakeupmonitor.get_hardwareId()wakeupmonitor→get_hardwareId()[wakeupmonitor hardwareId]wakeupmonitor.get_hardwareId()wakeupmonitor.get_hardwareId()wakeupmonitor.get_hardwareId()wakeupmonitor.get_hardwareId()wakeupmonitor→get_hardwareId()wakeupmonitor.get_hardwareId()

Returns the unique hardware identifier of the monitor in the form SERIAL.FUNCTIONID.

js
function get_hardwareId()
nodejs
function get_hardwareId()
cpp
string get_hardwareId()
m
-(NSString*) hardwareId
vb
function get_hardwareId() As String
cs
string get_hardwareId()
java
String get_hardwareId()
py
def get_hardwareId()
php
function get_hardwareId()
ecmascript
function get_hardwareId()

The unique hardware identifier is composed of the device serial number and of the hardware identifier of the monitor (for example RELAYLO1-123456.relay1).

Returns :

a string that uniquely identifies the monitor (ex: RELAYLO1-123456.relay1)

On failure, throws an exception or returns Y_HARDWAREID_INVALID.

wakeupmonitor→get_logicalName()
wakeupmonitor→logicalName()
wakeupmonitor.get_logicalName()wakeupmonitor.get_logicalName()wakeupmonitor→get_logicalName()[wakeupmonitor logicalName]wakeupmonitor.get_logicalName()wakeupmonitor.get_logicalName()wakeupmonitor.get_logicalName()wakeupmonitor.get_logicalName()wakeupmonitor.get_logicalName()wakeupmonitor→get_logicalName()wakeupmonitor.get_logicalName()YWakeUpMonitor get_logicalName

Returns the logical name of the monitor.

js
function get_logicalName()
nodejs
function get_logicalName()
cpp
string get_logicalName()
m
-(NSString*) logicalName
pas
function get_logicalName(): string
vb
function get_logicalName() As String
cs
string get_logicalName()
java
String get_logicalName()
py
def get_logicalName()
php
function get_logicalName()
ecmascript
function get_logicalName()
cmd
YWakeUpMonitor target get_logicalName

Returns :

a string corresponding to the logical name of the monitor.

On failure, throws an exception or returns Y_LOGICALNAME_INVALID.

wakeupmonitor→get_module()
wakeupmonitor→module()
wakeupmonitor.get_module()wakeupmonitor.get_module()wakeupmonitor→get_module()[wakeupmonitor module]wakeupmonitor.get_module()wakeupmonitor.get_module()wakeupmonitor.get_module()wakeupmonitor.get_module()wakeupmonitor.get_module()wakeupmonitor→get_module()wakeupmonitor.get_module()

Gets the YModule object for the device on which the function is located.

js
function get_module()
nodejs
function get_module()
cpp
YModule * get_module()
m
-(YModule*) module
pas
function get_module(): TYModule
vb
function get_module() As YModule
cs
YModule get_module()
java
YModule get_module()
py
def get_module()
php
function get_module()
ecmascript
function get_module()

If the function cannot be located on any module, the returned instance of YModule is not shown as on-line.

Returns :

an instance of YModule

wakeupmonitor→get_module_async()
wakeupmonitor→module_async()
wakeupmonitor.get_module_async()wakeupmonitor.get_module_async()

Gets the YModule object for the device on which the function is located (asynchronous version).

js
function get_module_async(callback, context)
nodejs
function get_module_async(callback, context)

If the function cannot be located on any module, the returned YModule object does not show as on-line.

This asynchronous version exists only in Javascript. It uses a callback instead of a return value in order to avoid blocking Firefox javascript VM that does not implement context switching during blocking I/O calls. See the documentation section on asynchronous Javascript calls for more details.

Parameters :

callbackcallback function that is invoked when the result is known. The callback function receives three arguments: the caller-specific context object, the receiving function object and the requested YModule object
contextcaller-specific object that is passed as-is to the callback function

Returns :

nothing : the result is provided to the callback.

wakeupmonitor→get_nextWakeUp()
wakeupmonitor→nextWakeUp()
wakeupmonitor.get_nextWakeUp()wakeupmonitor.get_nextWakeUp()wakeupmonitor→get_nextWakeUp()[wakeupmonitor nextWakeUp]wakeupmonitor.get_nextWakeUp()wakeupmonitor.get_nextWakeUp()wakeupmonitor.get_nextWakeUp()wakeupmonitor.get_nextWakeUp()wakeupmonitor.get_nextWakeUp()wakeupmonitor→get_nextWakeUp()wakeupmonitor.get_nextWakeUp()

Returns the next scheduled wake up date/time (UNIX format)

js
function get_nextWakeUp()
nodejs
function get_nextWakeUp()
cpp
s64 get_nextWakeUp()
m
-(s64) nextWakeUp
pas
function get_nextWakeUp(): int64
vb
function get_nextWakeUp() As Long
cs
long get_nextWakeUp()
java
long get_nextWakeUp()
py
def get_nextWakeUp()
php
function get_nextWakeUp()
ecmascript
function get_nextWakeUp()

Returns :

an integer corresponding to the next scheduled wake up date/time (UNIX format)

On failure, throws an exception or returns Y_NEXTWAKEUP_INVALID.

wakeupmonitor→get_powerDuration()
wakeupmonitor→powerDuration()
wakeupmonitor.get_powerDuration()wakeupmonitor.get_powerDuration()wakeupmonitor→get_powerDuration()[wakeupmonitor powerDuration]wakeupmonitor.get_powerDuration()wakeupmonitor.get_powerDuration()wakeupmonitor.get_powerDuration()wakeupmonitor.get_powerDuration()
