Comparison of temperature sensors

We often receive questions on the characteristics of our temperature sensors: their sampling rate, their accuracy, their adequacy for a particular scenario. We are going to give you a few hints to identify the sensor best suited for your needs.





The three USB modules able to measure temperature that we are going to compare are:
- the Yocto-Temperature
- the Yocto-Meteo
- the Yocto-Thermocouple

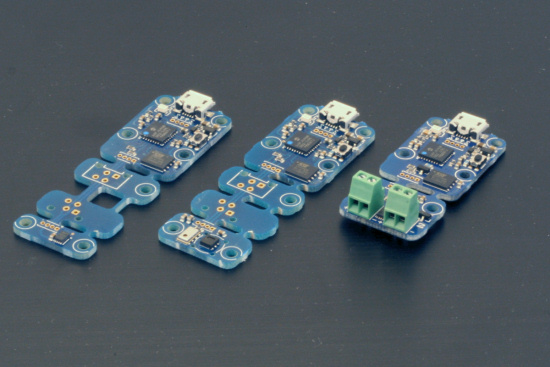

Yoctopuce temperature sensors
Yoctopuce temperature sensors



The Yocto-Temperature uses a Microchip MCP9804 sensor. It is a type of sensor which is rather generic, measuring its own temperature, and therefore the surrounding temperature only indirectly. This small detail is in fact very important in the sensor characteristics: as many temperature sensors, this sensor does not directly measure the air temperature, but the temperature of its circuit which follows, with some latency, the air temperature (or the temperature of the object against which the circuit is set). This small latency is of no importance if you measure the evolution of a room temperature varying slowly. But if you want to measure a temperature variation happening in a few seconds, you must take into account a significant latency to obtain a stabilization towards the new real value.

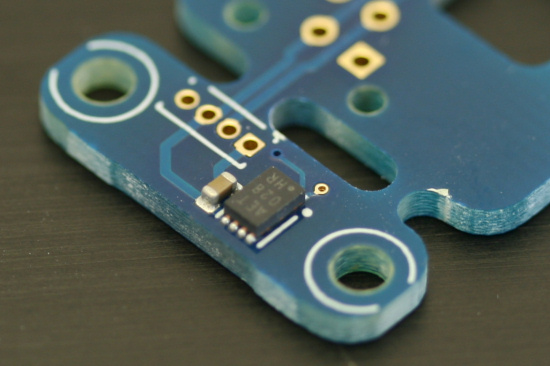

The  MCP9804 sensor on the  Yocto-Temperature
The MCP9804 sensor on the Yocto-Temperature


The Yocto-Meteo uses a Sensirion SHT21 sensor. It's a sensor dedicated to measuring the surrounding air, also including a humidity measure. The SHT21 is a chip containing a small opening allowing air to directly reach the sensitive areas of the sensor. In the opposite to the preceding, this sensor is therefore able to measure variations in the air temperature in a few seconds. You can equip this sensor with a small filter cap protecting if from a high humidity, but this obviously increases its thermal inertia.

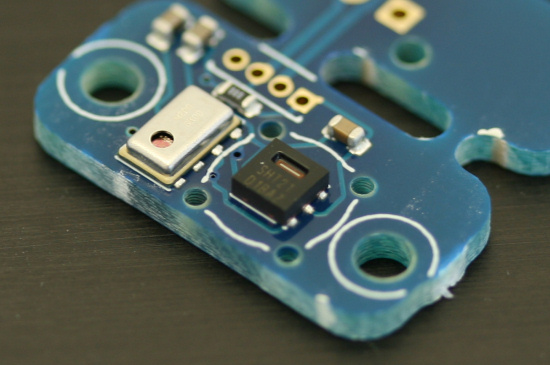

The SHT21 sensor on the Yocto-Meteo
The SHT21 sensor on the Yocto-Meteo


The Yocto-Thermocouple is a module to which you can connect (almost) any Thermocouple probe. We sell it with two small type K thermocouple supple wires, but you can connect to this module other thermocouple wires that you can find, for example, on the www.tcdirect.com web site. Compared to the two preceding sensors, this one is therefore particularly adapted to measuring the precise temperature of an object, distant from the USB module itself. Moreover, as the temperature is precisely measured at the end of the thermocouple (at the soldering point between the two metallic alloys of the thermocouple), the measure thermal inertia is extremely low which provides the sensor with a very low response time. You can even immerse the end of the thermocouple into a liquid, meat, or even into melting metal. The price to pay for this flexibility is a lower accuracy compared to the preceding sensors.

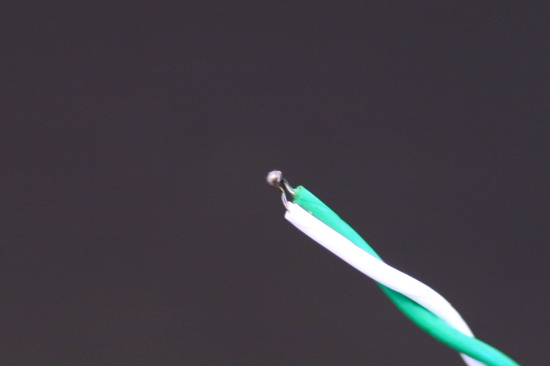

Thermocouple extremity
Thermocouple extremity


Therefore, select your sensor according to what you want to measure, and don't get hypnotized by theoretical precision numbers. If you want to detect small variations in air temperature, take a Yocto-Meteo. If you want to detect heating of a metallic part, take a Yocto-Thermocouple. Even if theoretically the Yocto-Temperature is more accurate, you risk to lose the additional accuracy due to a bad temperature propagation from the object to the sensor.

Accuracy != resolution

Do not confuse a sensor resolution with its accuracy. When we speak about accuracy, we mean the true correspondence between the returned value and the physical value. Are involved not only the measure principle, but also the component calibration made by the vendor, and all the external perturbations potentially caused by an inappropriate integration of the component on the circuit. For example, if you find a USB temperature sensor advertising a 0,1°C accuracy, it is most likely its resolution and not its true accuracy. There are only a few measuring instruments using SPRT with four wires which can provide measures with such an accuracy. We are, by the way, thinking about a new module of this type ...

The typical accuracy of the Yocto-Temperature and of the Yocto-Meteo is similar, on the order of 0.3°C. We speak of typical accuracy, and not of guaranteed accuracy, because accuracy varies according to the measure range and according to external conditions. For more information on the guaranteed accuracy, read about the sensor characteristics, available in the links provided at the beginning of the article. On the other hand, a thermocouple has a lower accuracy: of the order of 1°C. This is due to the physical principle of thermocouple measurement, and it's the price to pay for the flexibility of this type of measures. However, the thermocouple has a resolution similar to the other sensors.

For some applications, a good resolution (or sensitivity) can be enough, if it's simply the variations which are important rather than the absolute value of the measure. All our temperature sensor use a 1/16°C resolution. Below this resolution, we would find mostly noise.

Response time!= sampling rate

There is also often a confusion between the time needed for a temperature sensor to adapt the measured temperature to a new condition and the number of measures performed per second by the sensor. The determining factor is response time (the inverse of thermal inertia). The response time champion is naturally the thin thermocouple, with a very low inertia. It can therefore measure changes of tens of degrees in less than a second. Other sensors detect temperature variations in the second when it happens, but may need more than 30 seconds to precisely stabilize themselves on the new temperature.

Response time and sampling rate are obviously linked. There is no need to ask 30 times per second to an SHT21 sensor the temperature it is measuring, as in any case we know that the evolution of the measured temperature is slow. Requesting information too often from a temperature sensor produces only a parasitic electrical heating biasing the measures. Therefore, we keep the sampling rates low for some sensors.

Remote measures

Sometimes, we want to take a measure away from the USB module, for example outside, or even in a more hostile environment. The technique varies depending on the type of module you are using.

With the Yocto-Temperature and the Yocto-Meteo, you can separate the circuit at the planned location, solder a 4-wire ribbon cable between the two parts (or even use Picoflex plugs and sockets for more flexibility). This allows you to move the sensor up to 25 meters away in general (maybe more, but we haven't tried). If your environment is very charged with electromagnetic emissions (close to a high voltage line, or to a source of electric arcs) you may have to do with less, or use an shielded cable.

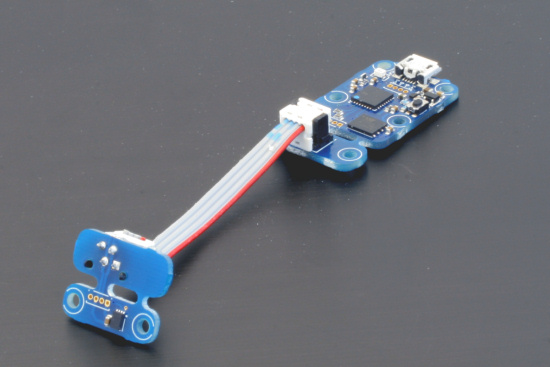

The sensor part can be moved a few meters away
The sensor part can be moved a few meters away



With the Yocto-Thermocouple, the measure is moved away "by nature", as it happens at the end of the thermocouple wire. The thermocouples we provide with our module are short, but you can easily get much longer wires. However, for the thermocouple principle to work, it is absolutely necessary for the whole wire to be of the thermocouple type (or thermocouple extension). You cannot use a simple copper wire as an extension, or your measure will be incorrect.

Summary
To conclude, here is a short table summarizing the differences mentioned above:




Yocto-Temperature Yocto-Meteo Yocto-Thermocouple
SensorMicrochip
MCP9804
Sensirion
SHT21
thermocouple
(all types)
Measuring pointCircuitSurrounding airPrecise contact
Sensitivity0.0625°C0.0625°C0.2°C / 0.3%
Typical accuracy0.25°C0.3°C1°C / 1%
Measuring range-40°C...125°C-40°C...125°C-200°C...1768°C
Sampling rate4 Hz1 Hz40 Hz
Fast response time++++++
Remote measures+++++
Humidity tolerance++++++
Additional sensorsnoneHumidity and
pressure
2nd temperature
measure
PriceCHF 27.70CHF 61.--CHF 45.--





1 - mvuilleu (Yocto-Team)Friday,october 04,2013 13H44

Since this article was written, we have added another sensor: the Yocto-PT100.
See http://www.yoctopuce.com/EN/article/new-product-the-yocto-pt100
